D-Link DIR-857 [45/99] Access control wizard continued

41D-Link DIR-855 User Manual

Section 3 - Conguration

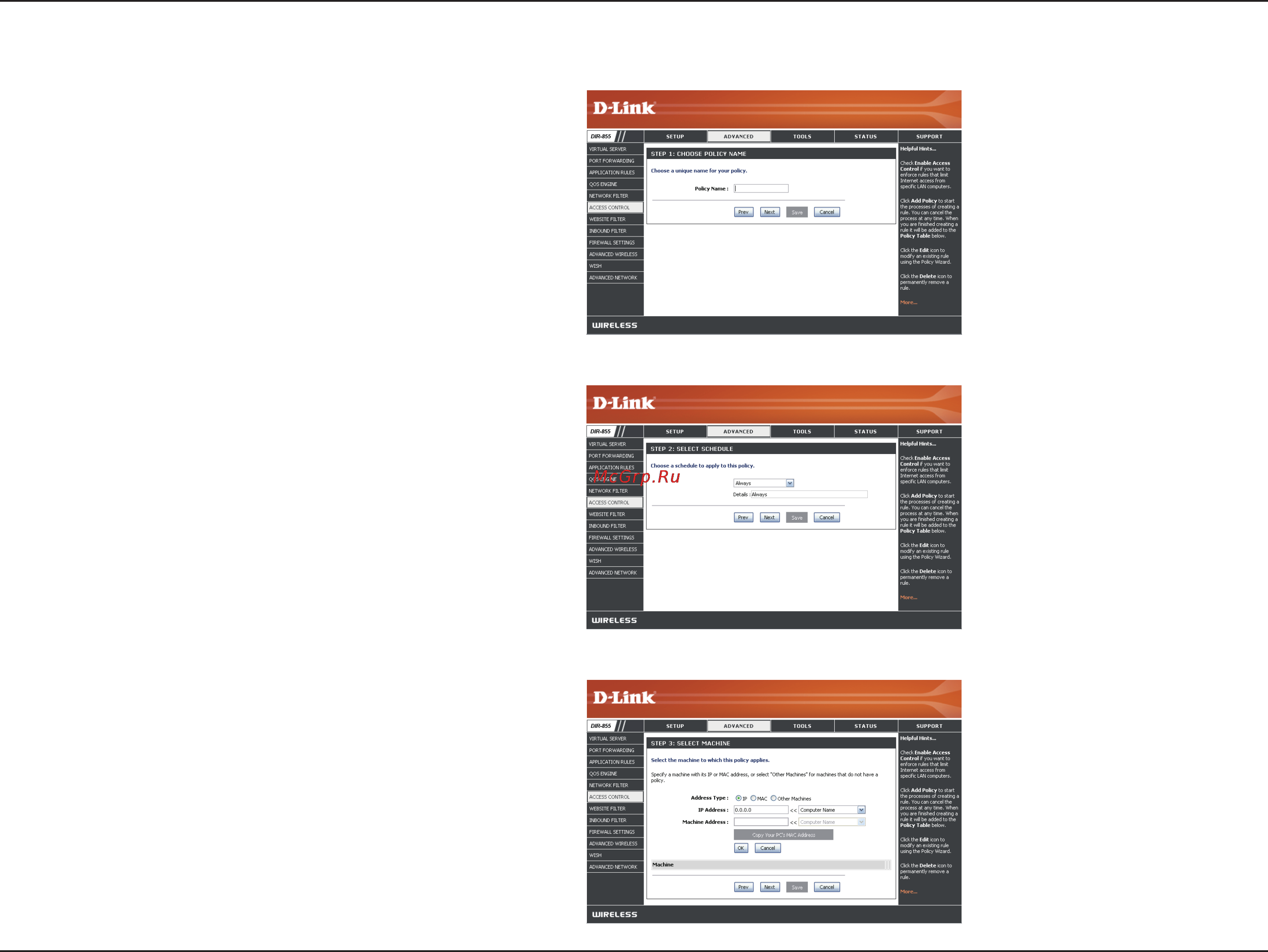

Enter a name for the policy and then click Next to continue.

Access Control Wizard (continued)

Select a schedule (I.E. Always) from the drop-down menu

and then click Next to continue.

Enter the following information and then click Next to

continue.

• Address Type - Select IP address, MAC address, or

Other Machines.

• IP Address - Enter the IP address of the computer

you want to apply the rule to.
