D-Link DIR-857 [37/99] Usb settings

33D-Link DIR-855 User Manual

Section 3 - Conguration

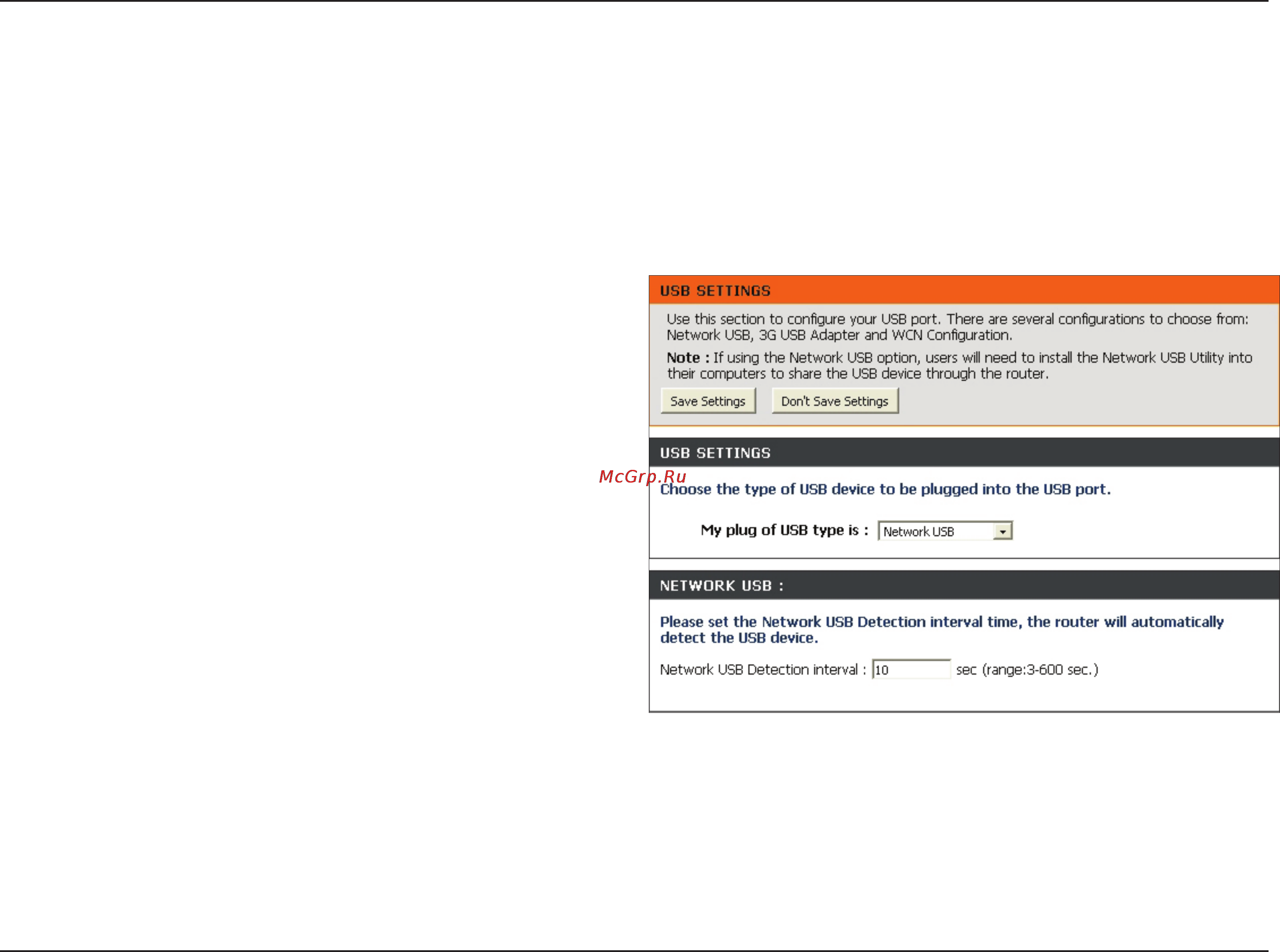

USB Settings

Use this section to congure your USB port. There are two congurations to choose from: Network USB and WCN

Conguration.

Note: If using the Network USB option, users will need to install the Network USB Utility into the computers to share

the USB device through the router.

Choose between these two conguration: Network

USB and WCN Conguration.

Please set the Network USB Detection interval

time.

USB Settings:

Network USB:

Note: Please see the SharePort Manual on the CD for

more information.
