32D-Link DIR-855 User Manual
Section 3 - Conguration
DHCP Reservation

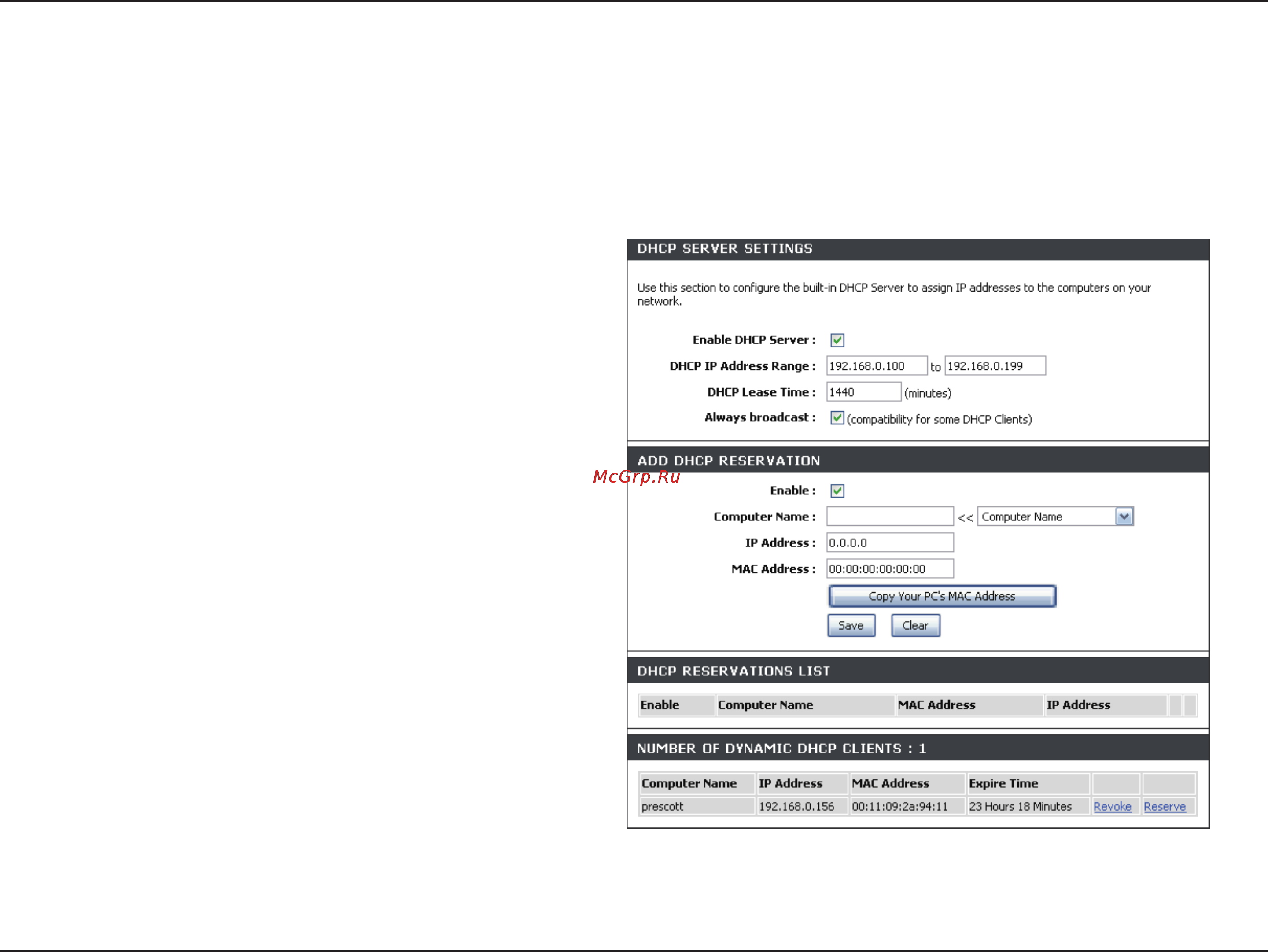

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation.
The router will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Check this box to enable the reservation.
Enter the computer name or select from the drop-
down menu and click <<.
Enter the IP address you want to assign to the
computer or device. This IP Address must be within
the DHCP IP Address Range.
Enter the MAC address of the computer or
device.
If you want to assign an IP address to the computer
you are currently on, click this button to populate
the elds.
Click Save to save your entry. You must click Save
Settings at the top to activate your reservations.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s MAC
Address:
Save:
