D-Link DIR-857 [69/99] Internet sessions

65D-Link DIR-855 User Manual

Section 3 - Conguration

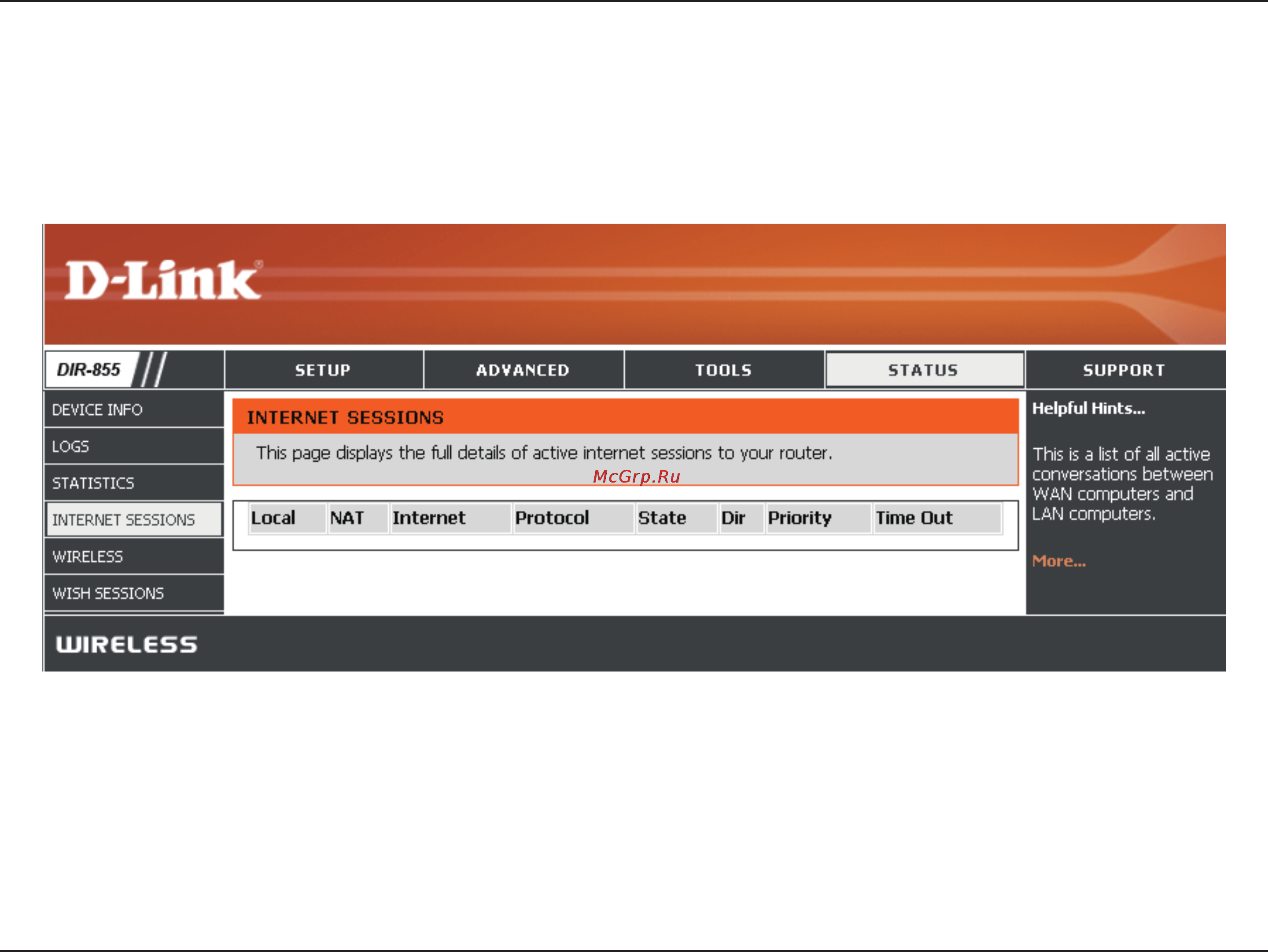

Internet Sessions

The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is

a conversation between a program or application on a LAN-side computer and a program or application on a WAN-

side computer.
