66D-Link DIR-855 User Manual

Section 3 - Conguration

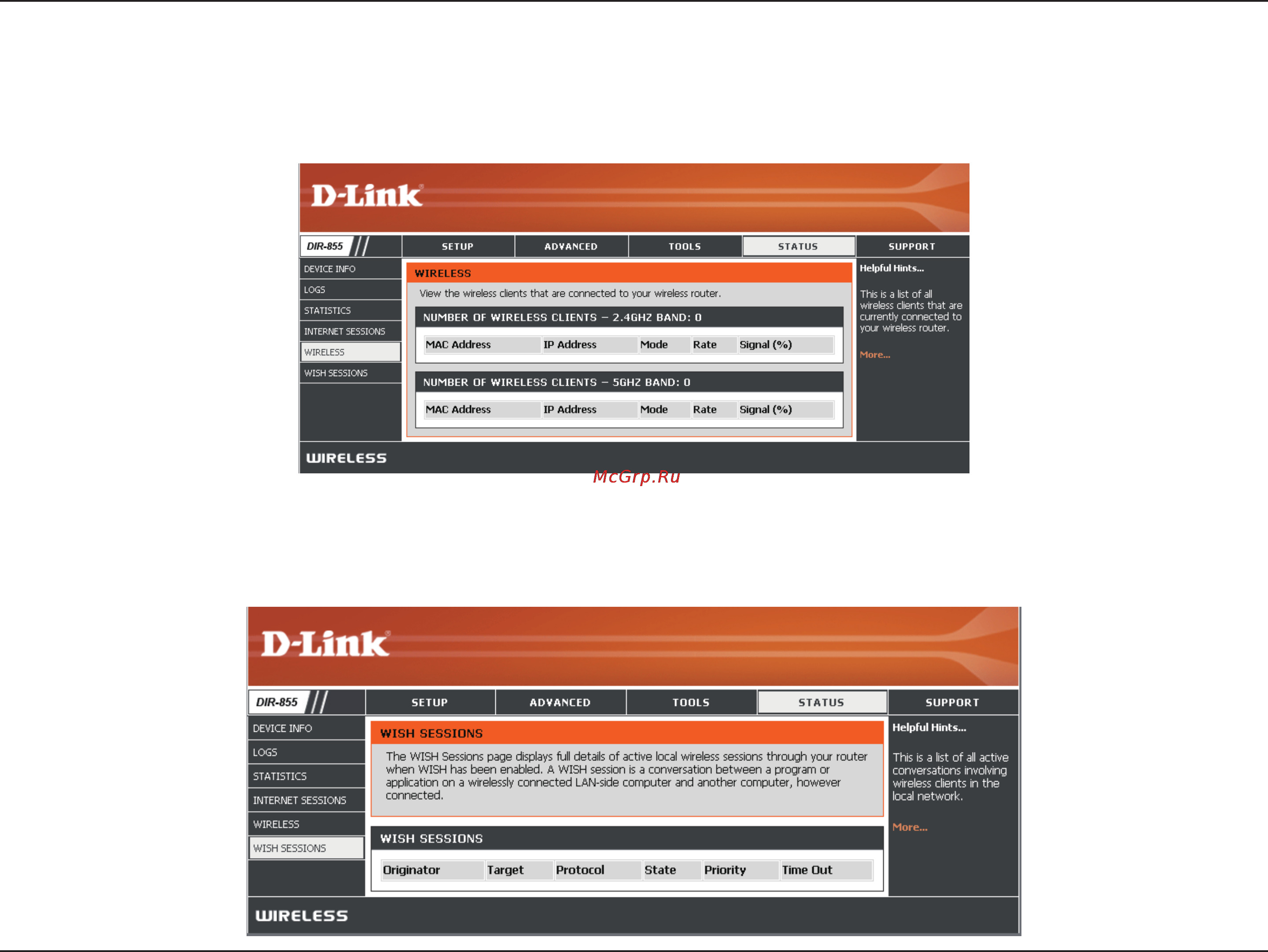

The wireless client table displays a list of current connected wireless clients. This table also displays the connection

time and MAC address of the connected wireless clients.

Wireless

The WISH details page displays full details of wireless clients that are connected when WISH is enabled.

WISH
