18D-Link DIR-855 User Manual

Section 3 - Conguration

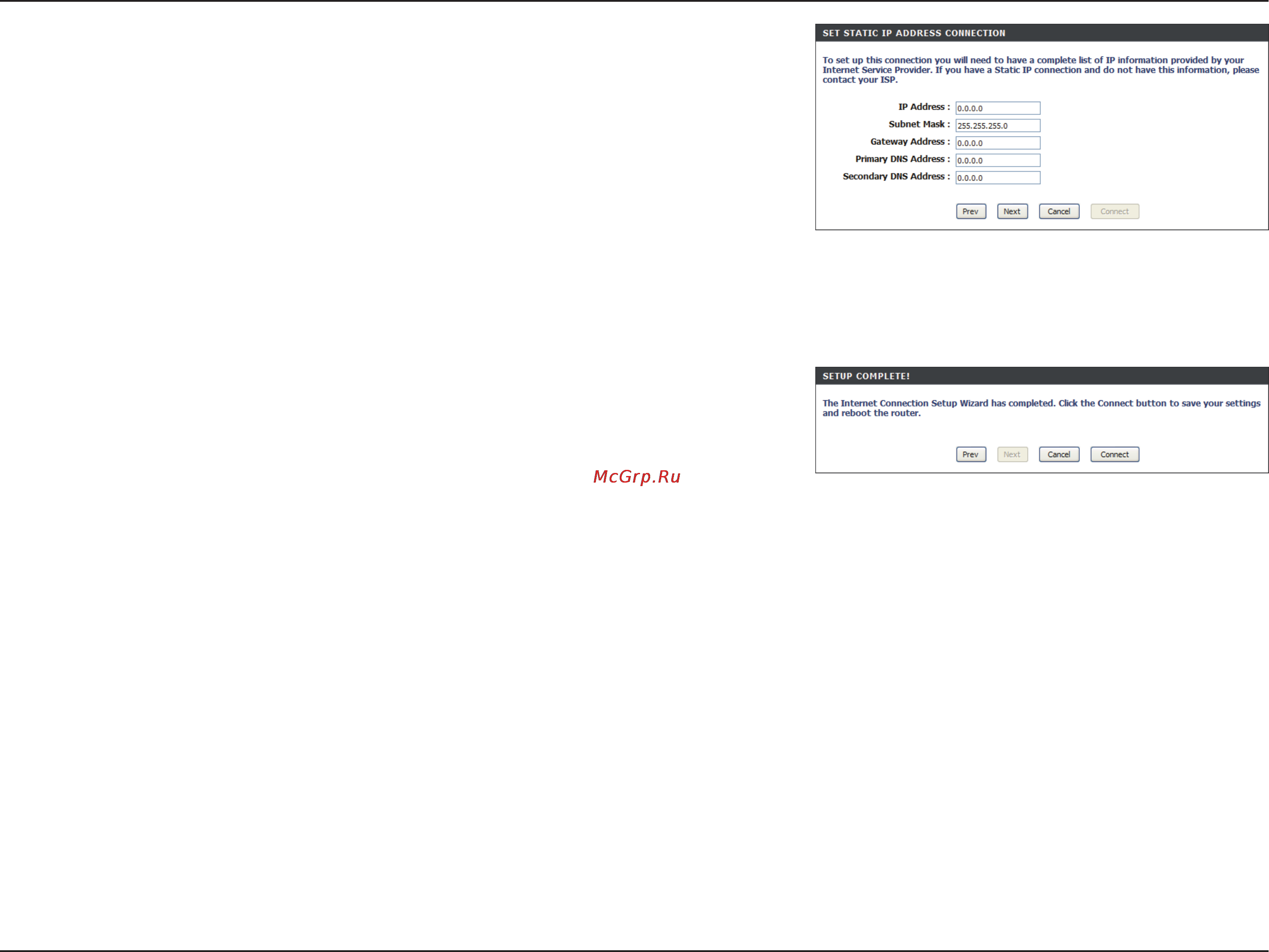

If you selected Static, enter your network settings supplied by your Internet

provider. Click Next to continue.

Click Connect to save your settings. Once the router is nished rebooting,

click Continue. Please allow 1-2 minutes to connect.

Close your browser window and reopen it to test your Internet connection.

It may take a few tries to initially connect to the Internet.
