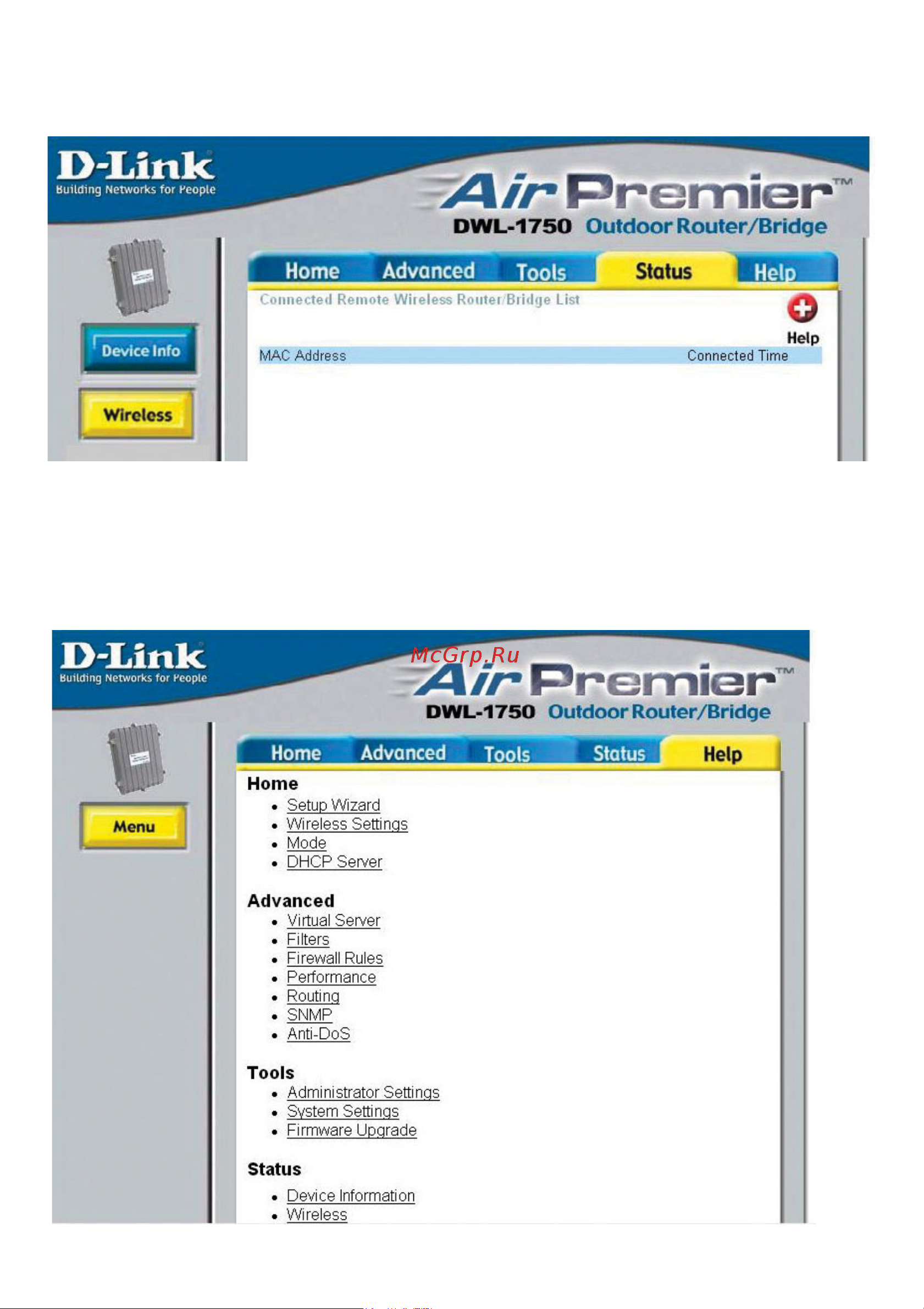

Using the Configuration Utility (continued)

Status > Wireless

The screen above displays the Wireless Status and the length of time of the current

connection.

Help

At the Help screen you can select from Help files displayed above.
