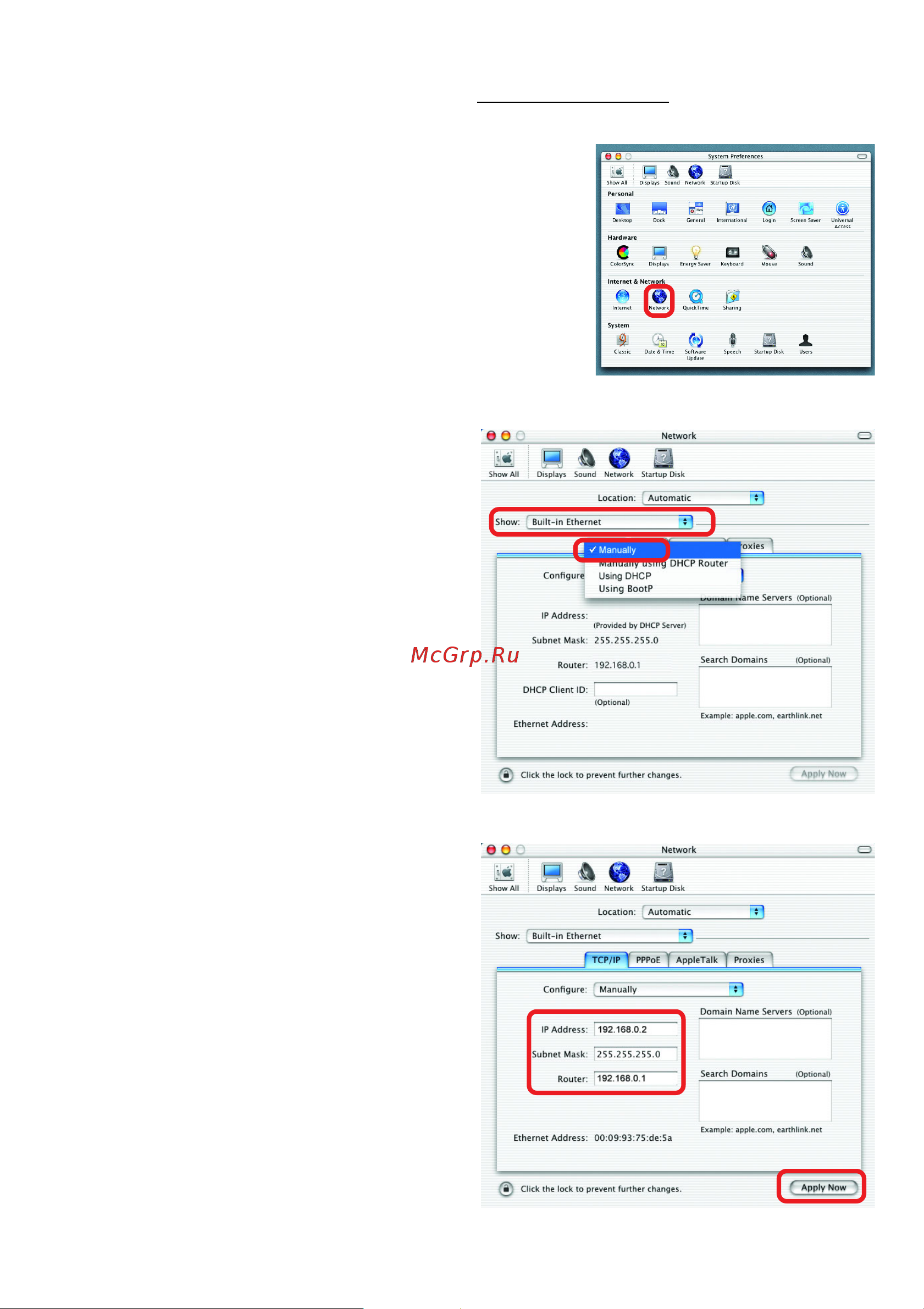

D-Link DWL-1700AP [45/82] Networking basics continued assigning a static ip address with macintosh osx

Networking Basics (continued)

Assigning a Static IP Address with Macintosh OSX

Go to the Apple Menu and se-

lect System Preferences

cClick on Network

Select Built-in Ethernet in

the Show pull-down menu

Select Manually in the

Configure pull-down

Input the Static IP Ad-

dress, the Subnet Mask

and the Router IP Ad-

dress in the appropriate

fields

Click Apply Now
