D-Link DWL-1700AP [72/82] Boot code firmware upgrade continued
![D-Link DWL-1700AP [72/82] Boot code firmware upgrade continued](/views2/1044803/page72/bg48.png)
72
Boot Code Firmware Upgrade (continued)

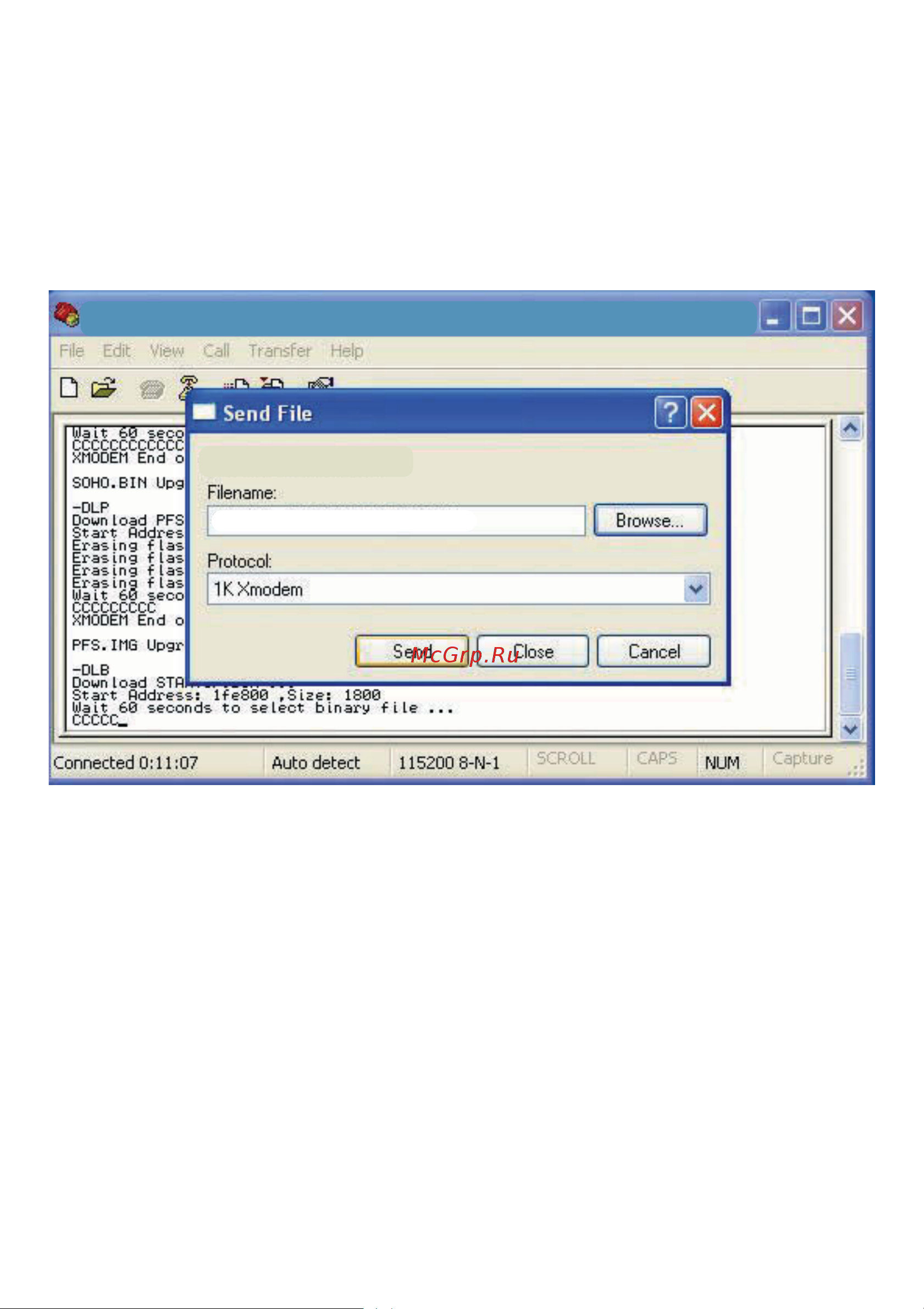

Key in DLB and press Enter to upgrade the BIOS. When CCC... appears, select
Transfer > Send File.
Set Protocol as 1K Xmodem.
Key-in the correct filename (STARTUP.BIN) and path, then choose Send to start to
upgrade the BIOS code.
DWL-1750 - Hyper Terminal
G:\DWL-1750\STARTUP.BIN
Folder: G:\DWL-1750
