D-Link DWL-1700AP [43/82] Networking basics continued assigning a static ip address in windows xp 2000

Networking Basics (continued)

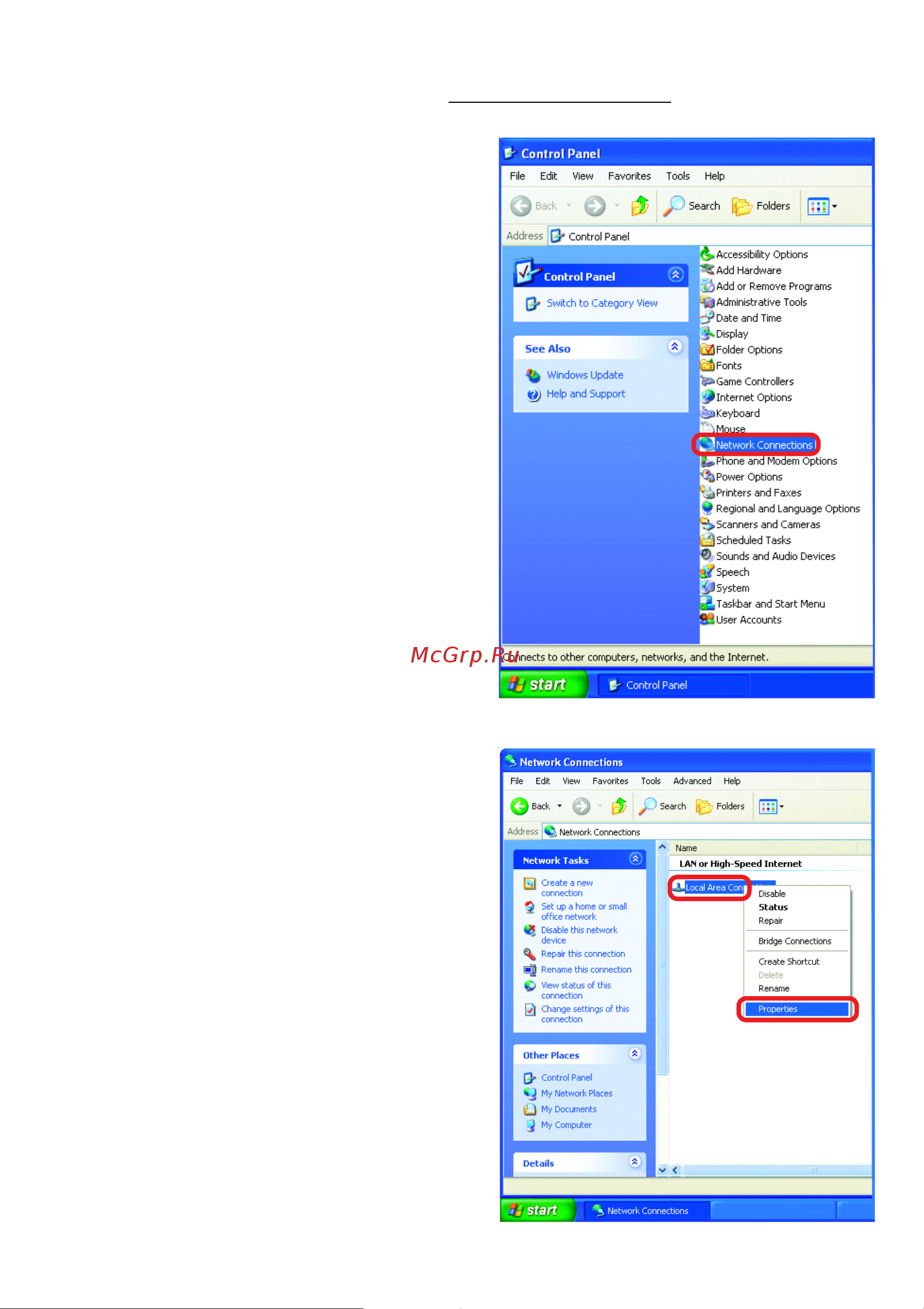

Assigning a Static IP Address in Windows XP/2000

Double-click

on Network

Connections

Double-click on

Properties

Right-click on Local Area

Connections
