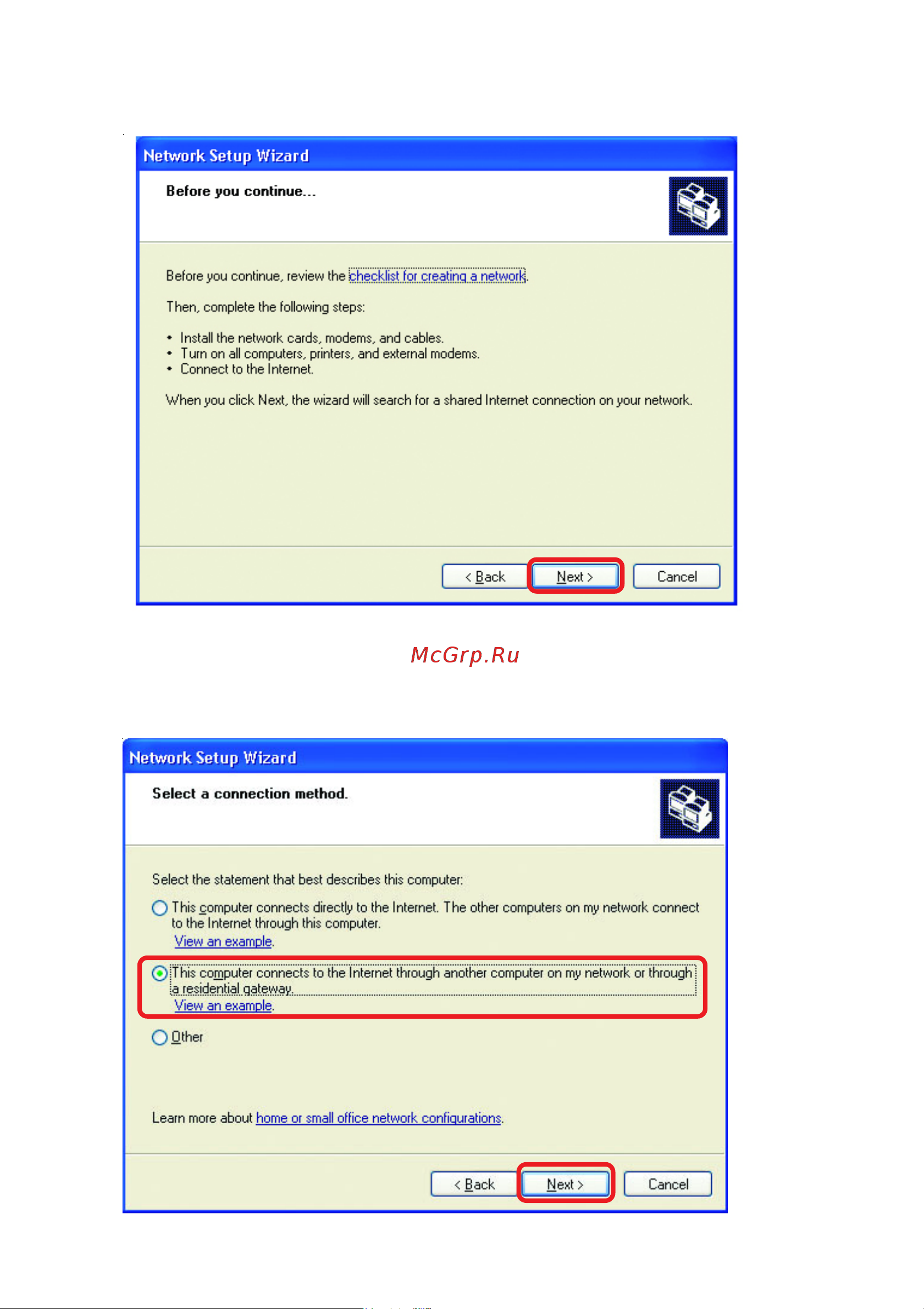

Please follow all the instructions in this window:

Networking Basics (continued)

Click Next

In the following window, select the best description of your computer. If your

computer connects to the internet through a gateway/router, select the

second option as shown.

Click Next
