Boot Code Firmware Upgrade (continued)

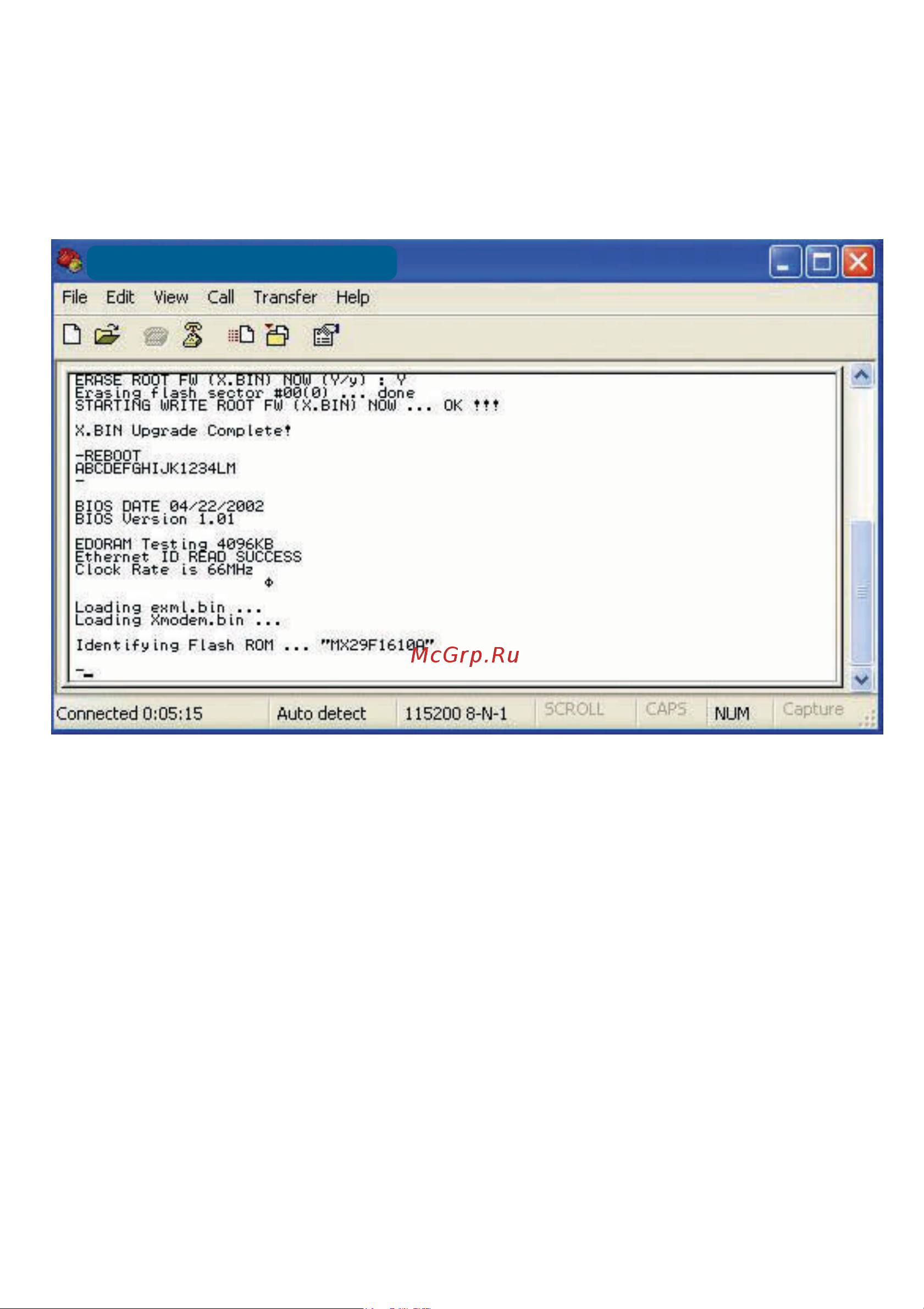

Key-in reboot and press Enter to let the new boot code activate. After

rebooting and when showing EDORAM Testing, press X to enter con-

sole mode again.

DWL-1750 - Hyper Terminal
