D-Link DWL-1800B [16/77] Is located on the bottom panel of the outdoor unit
![D-Link DWL-1800R [16/77] Is located on the bottom panel of the outdoor unit](/views2/1044813/page16/bg10.png)
11
Figure 4: 3” Pole Mounting Installation Using the Supplied Brackets
NOTE: When inserting the open-ended screws, make sure to insert them with the
grooves pointing outwards; these grooves are intended to allow fastening of the
screws with a screwdriver.
2.4.1 Connecting the Ground and Antenna Cables
The Ground terminal (marked ) is located on the bottom panel of the outdoor unit.
1. Connect one end of the grounding cable to the Ground terminal and
connect the other end to a good ground connection.
2.4.2 Connecting the Indoor-to-Outdoor Cable
1. Remove the two screws holding the waterproof seal to the outdoor unit
and remove the waterproof seal.
2. Unscrew the top nut from the waterproof seal.

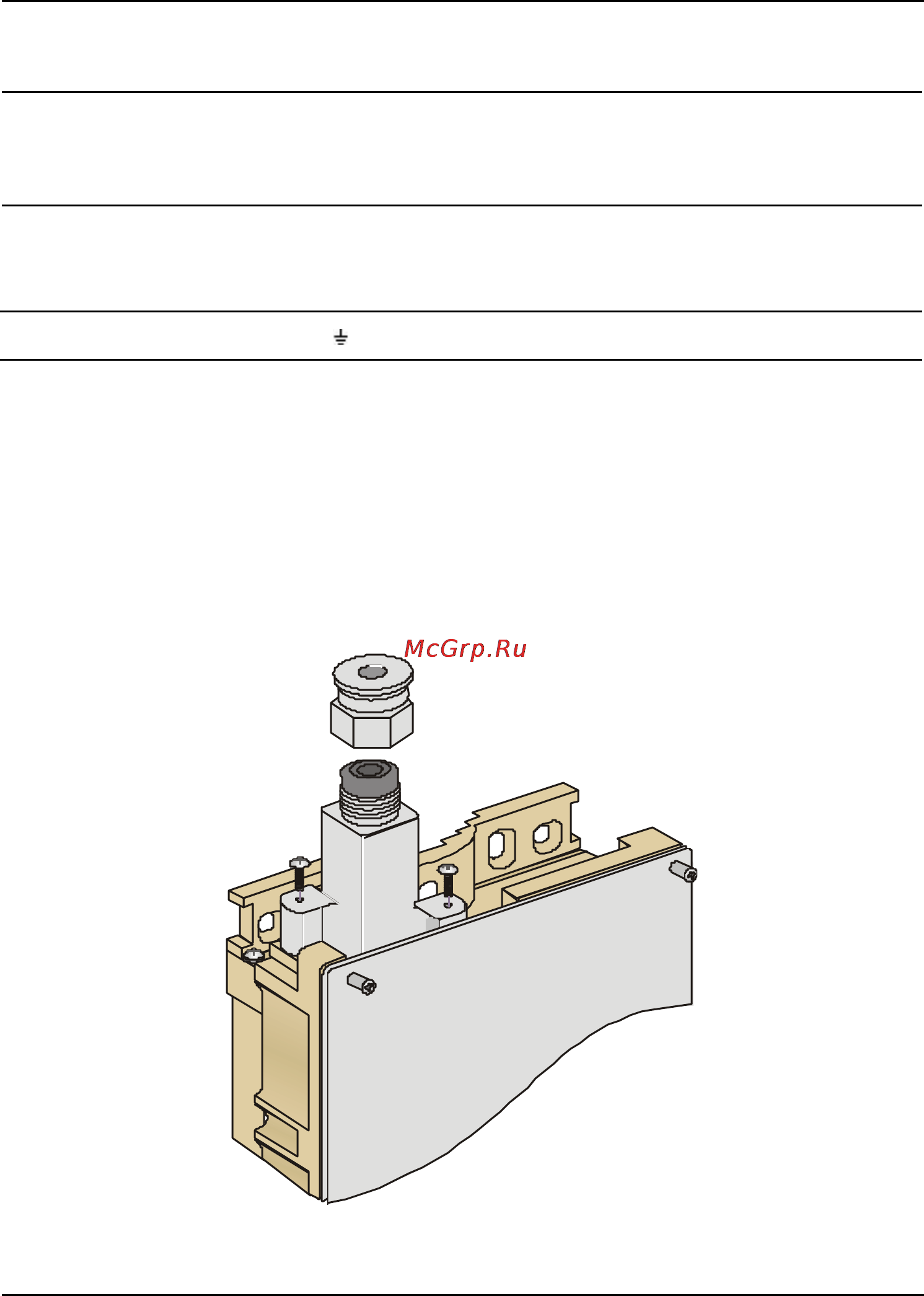

Figure 5: The Waterproof Seal
