3.2.3 Multiple Unit Configuration Mode

This feature allows configuration parameters to be downloaded to multiple units

simultaneously. When you select this option in the Options menu, all configuration

windows become write-only. Irrelevant parameters are disabled.

NOTE: The Configuration Utility does not resolve the topology of the cell. Therefore,

multiple unit configuration operations should be done at the location where the

DWL-1800B is are located.

Select the units that you wish to upgrade from the list box on the left-hand side of

any dialog box tabs. Use Shift-click and/or Ctrl-click to select multiple units.

Enter the configuration parameter values and click Apply. The following dialog box

is displayed.

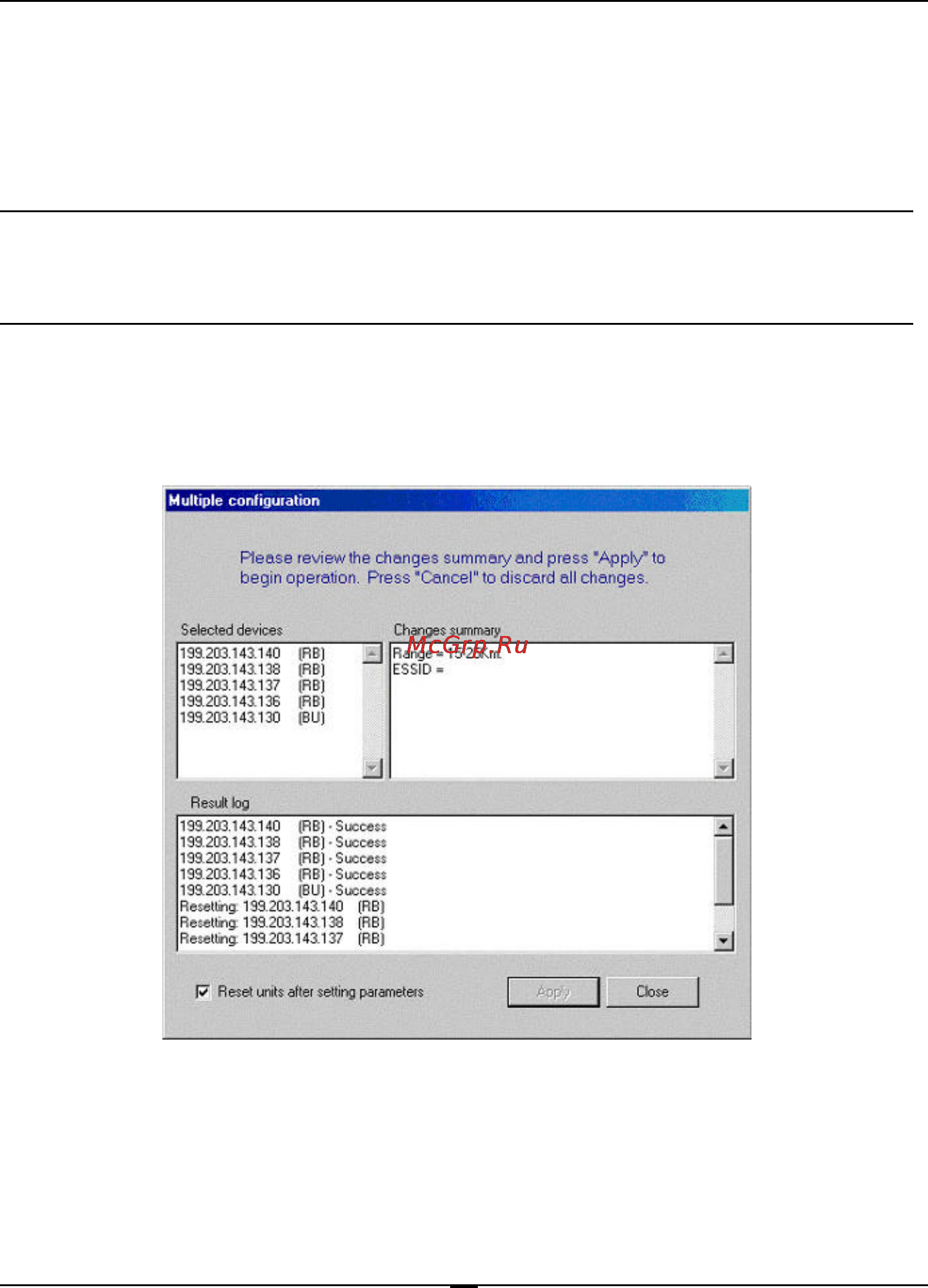

Figure 25: Multiple Configuration Mode dialog box

This dialog box lists the selected units and displays the configuration changes to be

made during the multiple configuration session. Select the Reset units after setting

parameters check box to reset all selected units.

A log of the multiple configuration session is displayed during and after the operation.
