13

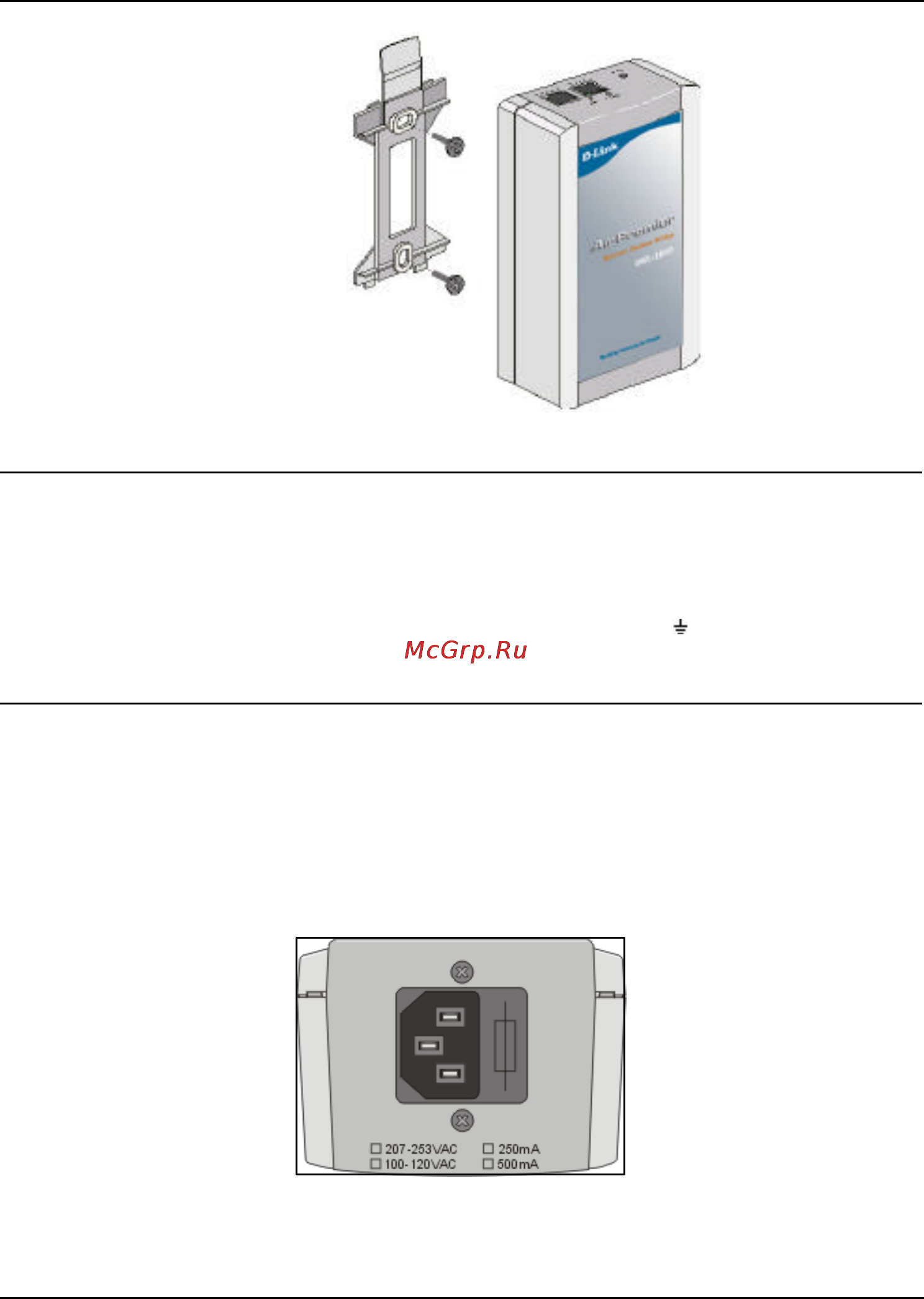

Figure 6: Wall Mounting the Indoor Unit
NOTE: The color codes of the power cable are:
brown phase ~
blue neutral 0
yellow/green grounding
4. After connecting the outdoor unit to the indoor unit using the
Indoor-to-Outdoor cable, connect the power cord to the unit’s AC
socket, located on the bottom panel shown in Figure 7. Connect the other
end of the power cord to the AC mains after verifying that the unit is
rated for the voltage in the country of use; the AC rating is indicated on
the bottom panel of the Indoor unit.
Figure 7: Indoor Unit Bottom Panel
