24
3.2.1.3 Configuration Utility Tabs
3.2.1.3.1 Station Status Tab
The Station Status tab displays general information regarding the unit's firmware
and hardware versions as well as general unit address information.

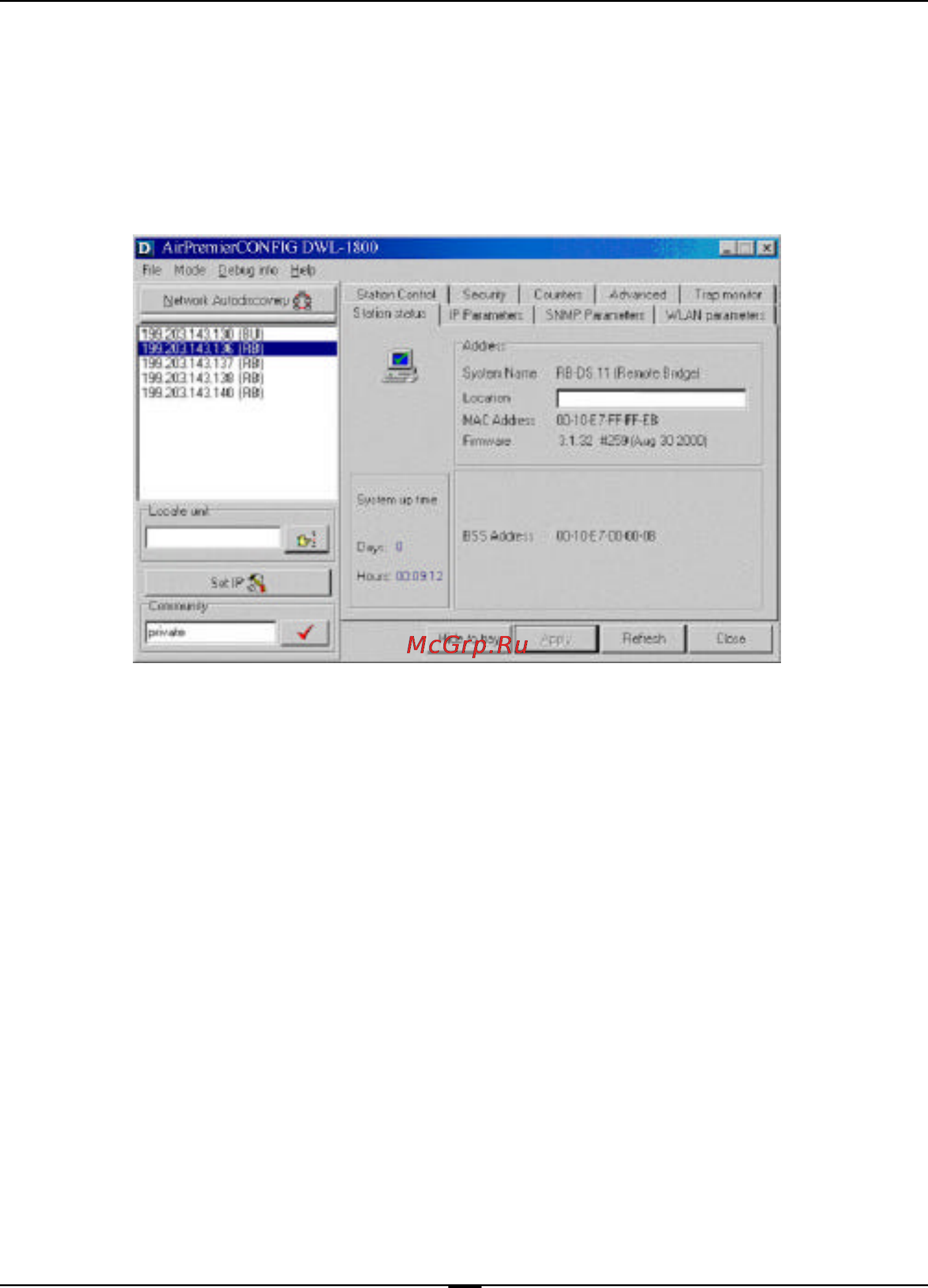

Figure 11: Station Status Tab
?? System Name - The name of the selected unit.
?? Location - A user-defined description of the location of the selected
unit, up to 28 ASCII characters long (optional).
?? MAC Address - MAC address of the selected unit.
?? Firmware - The current firmware version.
?? BSS Address (DWL-1800R units only) - Defines the MAC address of
the BSS, which is the DWL-1800B the unit is associated with.
3.2.1.3.2 IP Parameters Tab
The IP Parameters tab allows you to define or edit the IP parameters of units.
