TL-MR3040 Portable Battery Powered 3G/4G Wireless N Router
-32-

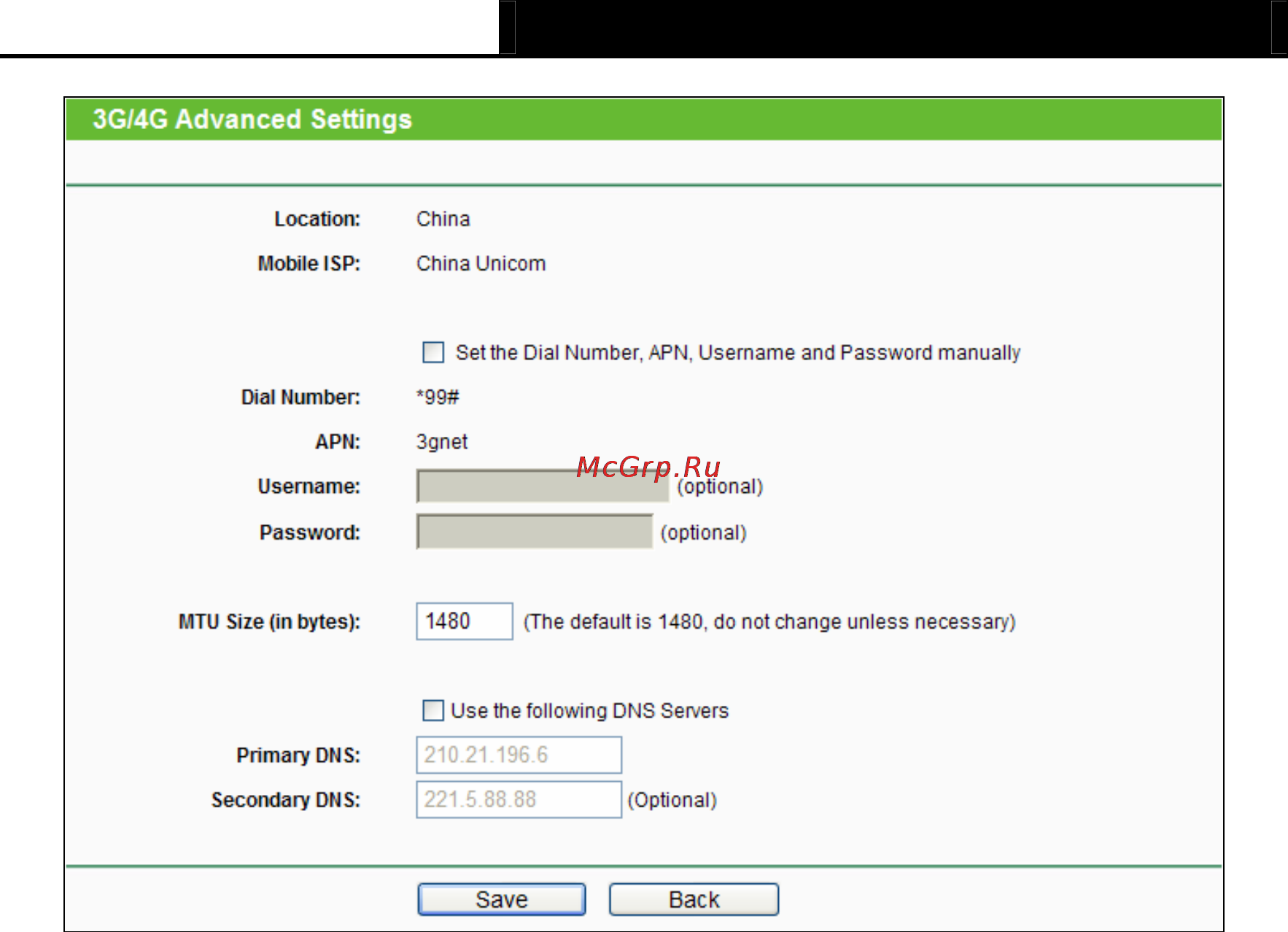

Figure 4-12 3G/4G USB Modem Settings
¾ Set the Dial Number and APN manually - Check the box and fill the Dial Number and
APN blanks below if your ISP is not listed in the Mobile ISP list or the default values are not
the latest ones.
¾ Dial Number - Enter the Dial Number provided by your ISP.
¾ APN - Enter the APN (Access Point Name) provided by your ISP.
¾ Username/Password - Enter the Username and Password provided by your ISP. These
fields are case-sensitive.
¾ MTU Size - The default MTU (Maximum Transmission Unit) size is 1480 bytes, which is
usually fine. For some ISPs, you need modify the MTU. This should not be done unless you
are sure it is necessary for your ISP.
¾ Use the following DNS Servers - If your ISP specifies a DNS server IP address for you,
click the checkbox, and fill the Primary DNS and Secondary DNS blanks below. The
Secondary DNS is optional. Otherwise, the DNS servers will be assigned dynamically from
ISP.
¾ Primary DNS - Enter the DNS IP address in dotted-decimal notation provided by your ISP.
¾ Secondary DNS - (Optional) Enter another DNS IP address in dotted-decimal notation
provided by your ISP.
