TL-MR3040 Portable Battery Powered 3G/4G Wireless N Router

-33-

Click the Modem Settings button if your 3G/4G USB Modem is not supported by the router,

and then you will see the screen as shown in Figure 4-13. Parameters of your USB modem can

be configure

d on this page.

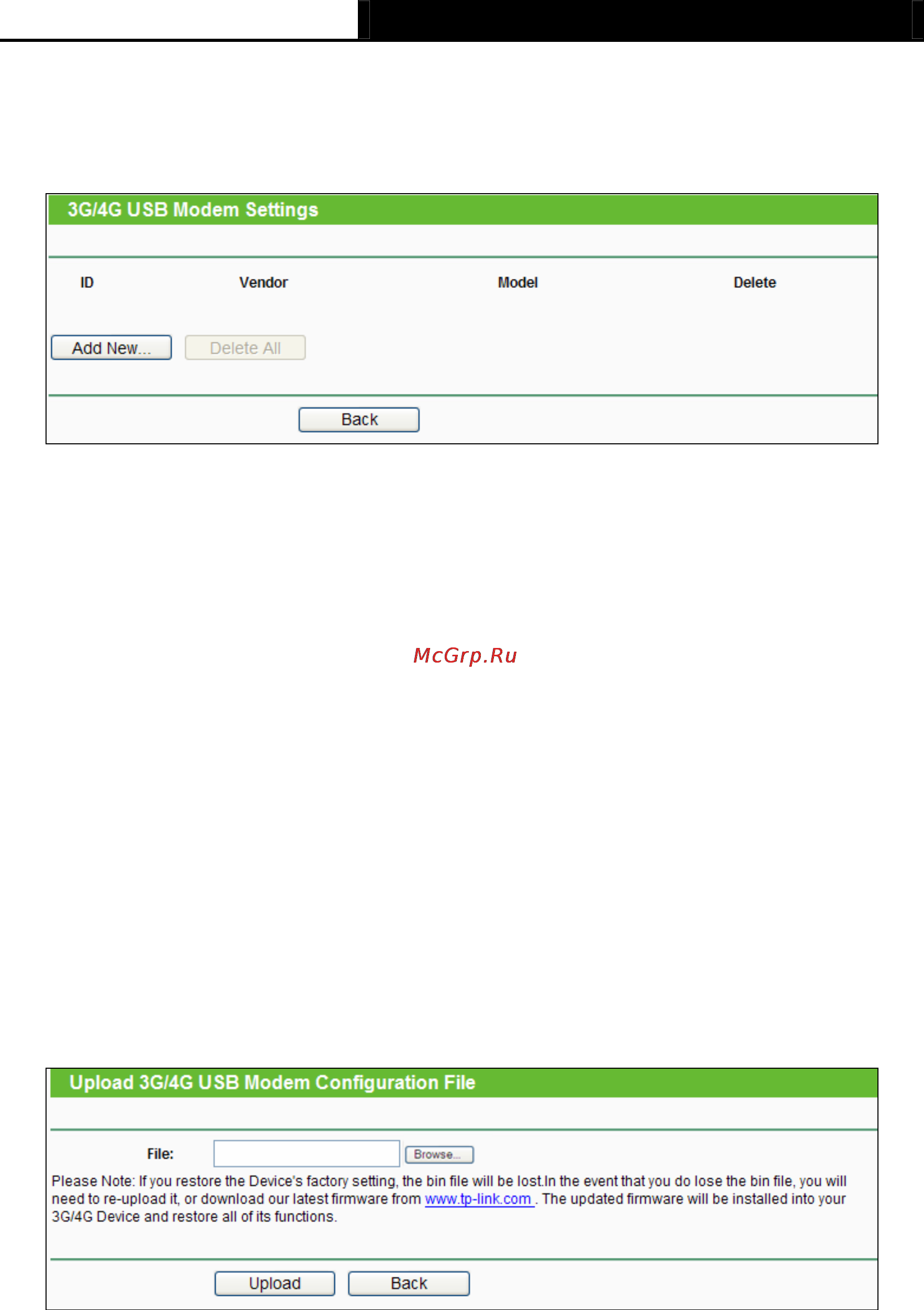

Figure 4-13 3G/4G USB Modem Settings

There is already much 3G/4G USB modem information embedded in the router. The USB

modem parameters will be set automatically if the card is supported by the router. But when the

router finds the card you just insert "unknown" to it, it will prompt you to set these parameters.

The router can identify your "unknown" card if the correct parameters are in the list. We suggest

you to do the “3G/4G USB Modem Setting” only in such circumstance.

To add 3G/4G USB Modem entries, follow the steps below.

1. Download a most recent 3G/4G USB modem configuration file from our website

(http://www.tp-link.com).

2. Click

the Add New... button in Figure 4-13, and then you will see Figure 4-14.

3. Click Bro

wse… to select the path name where you save the downloaded file on the

computer into the File blank.

4. Click the Upload button to upload the configuration.

Figure 4-14 Add or Modify a 3G/4G USB Modem Entry

4.5.3 WAN

Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the

screen below.

)

Note:
