D-Link DI-604UP [12/61] Using the configuration menu

The Home > Wizard window will appear. Please refer to the Quick Installation

Guide for more information regarding the Setup Wizard.

These buttons appear on most of the configuration windows in this section. Please

click on the appropriate button at the bottom of each window after you have made a

configuration change.

Note: if you have changed the default IP Address assigned to the DI-604UP, make sure to enter the

correct IP Address.

Using the Configuration Menu

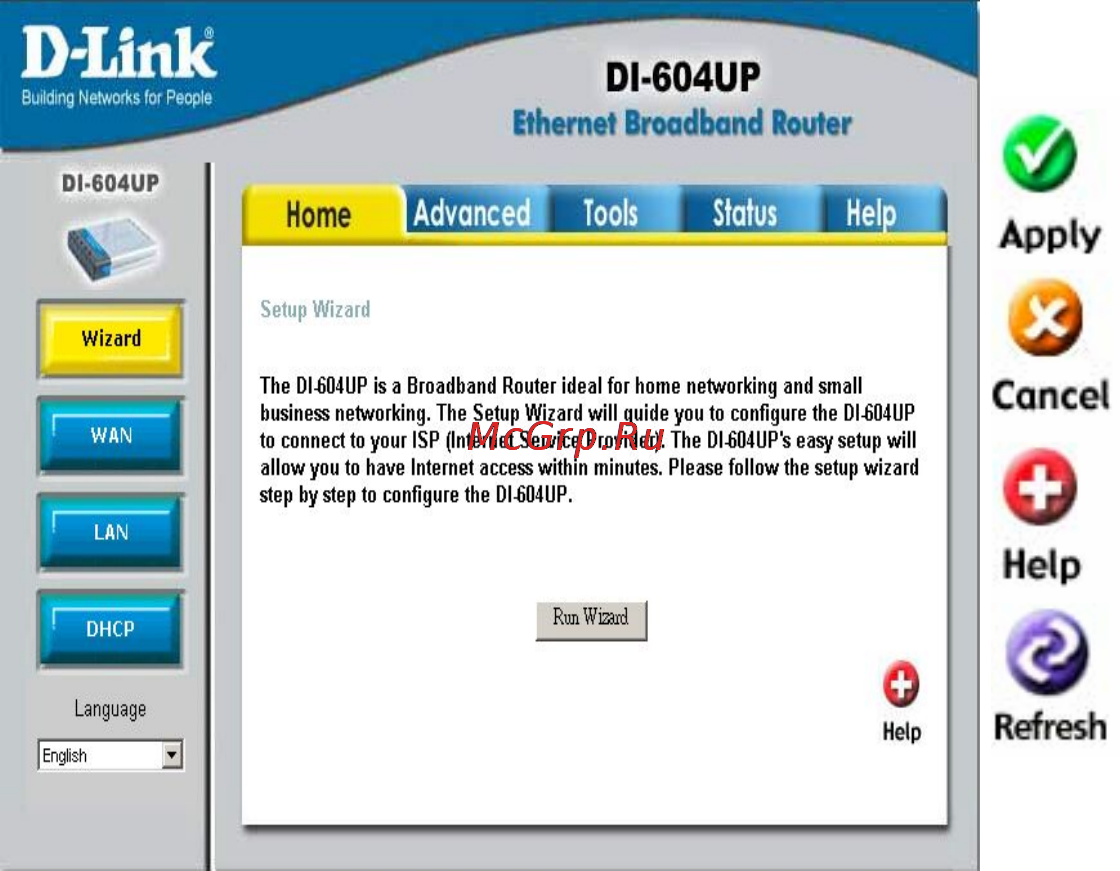

Setup Wizard

The Setup Wizard page is the first page that appears when logging into

the web-based management interface. The Setup Wizard is a utility used

to quickly configure the DI-604UP. It will guide you through four quick and

basic steps to help you connect to your ISP. You will be connected to your

ISP (Internet Service Provider) and have Internet access within minutes.

WAN

WAN is short for Wide Area Network. The WAN settings can be referred to

as the Public settings. All IP information in the WAN settings are public IP

addresses which are accessible on the Internet.

The WAN settings consist of three options: Dynamic IP Address, Static

IP Address, PPPoE and Others(PPTP,L2TP,BigPond Cable and Multi-PPPoE).

Select the appropriate option and fill in the information needed to connect to your

ISP.

Clicking Apply will save

configured settings to the

router.

Clicking Cancel will clear

changes made to the

current page.

Clicking Help will provide

the user with helpful

information about the

current window.

Clicking Refresh will

refresh the statistics of the

current window.
