8
Hardware Description

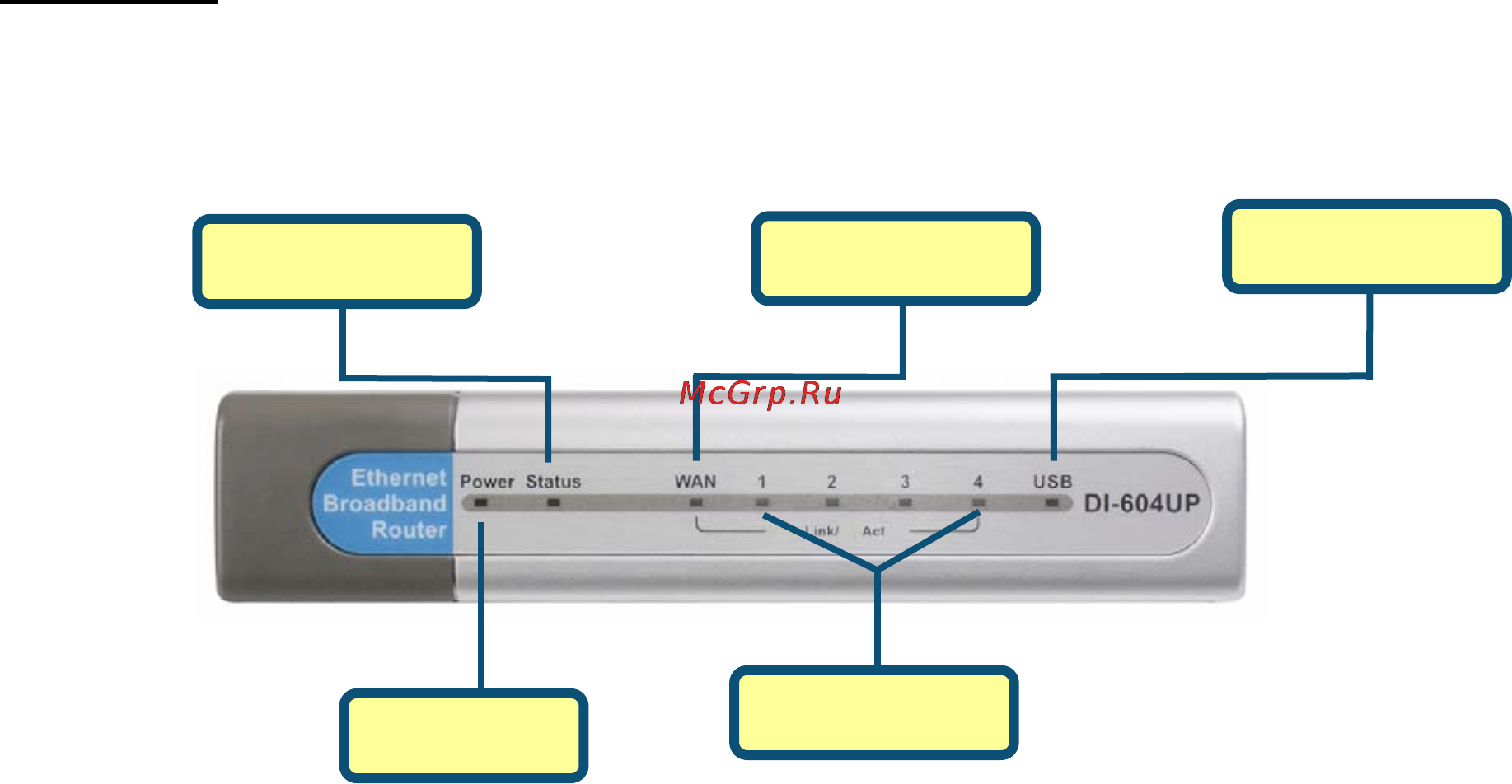

Front Panel
Power A solid light indicates a valid connection to the power supply.
WAN An active LED indicates a link has been established. A blinking LED
indicates activity on the WAN port.
LAN
Status A blinking LED indicates the DI-604UP is functioning properly.
USB An active LED indicates a link has been established. A blinking
LED indicates activity on the USB port
An active LED indicates a link has been established. A blinking LED
indicates activity on the LAN port.
WAN LED
Power LED
LAN LEDs
USB LED
Status LED
