your network account is billed according to the amount of time the Router
is actually connected to the Internet, enter an appropriate Idle Time value
(in seconds). This will disconnect the Router after the WAN connection
has been idle for the amount of time specified. The default value = 5.
MTU Enter an MTU value only if required by your ISP. Otherwise, leave it at
the default setting.
Connect Mode This function, with Connect-on-demand selected, will allow the router to
connect any workstation on your LAN to the Internet upon request. If this
function is set at Always-on, no request from the workstation will be
needed to connect to the Internet. If Manual is selected, it will be
necessary for the workstation on the LAN to manually connect to the
Internet through this router.

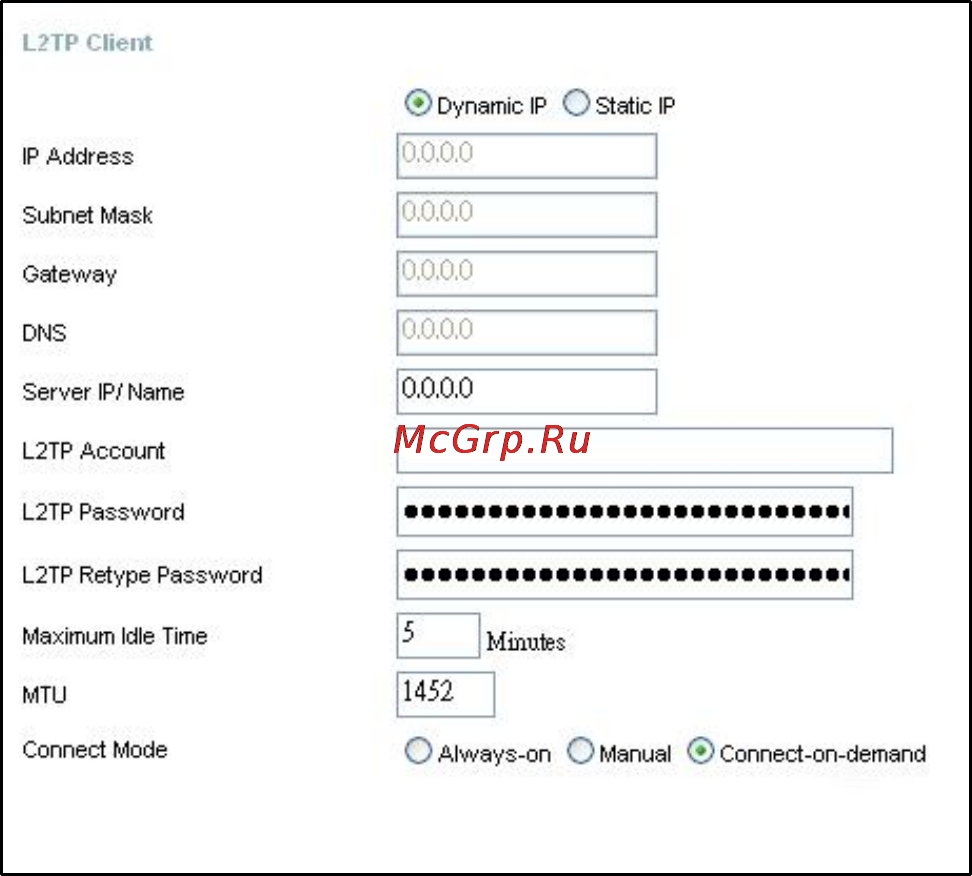

HOME > WAN > Other>L2TP
L2PT
Choose between Dynamic and Static IP. Using Dynamic IP, the router will set
your basic IP parameters, such as the IP Address, Subnet Mask and Gateway.
For Static IP, this information must be set manually by the user.
IP Address The IP address that will be assigned to your router for this connection, as stated
by your ISP. Dynamic IP requires no input here.
Subnet Mask The IP address of the corresponding Subnet Mask, as stated to you by your ISP.
Dynamic IP requires no input here.
Gateway The IP address of the gateway device, as stated to you by your ISP. Dynamic IP
requires no input here.
Server IP The IP address of your ISP’s server computer, as stated to you by your ISP.
L2PT Account The account name of the L2PT account that has been assigned to you by your
ISP.
L2PT Password The password of the L2PT account that was supplied to you by your ISP.
L2PT Retype Password Retype the password that was entered in the L2PT field. Ensure that
these two passwords are identical or an error will occur.
Maximum Idle Time A value of 0 means the PPP connection will remain connected. If your
Some ISPs may require the user
to uplink using the Layer 2
Protocol Tunneling (L2PT) method.
L2PT is a VPN protocol that will
ensure a direct connection to the
server using an authentication
process that guarantees the data
originated from the claimed sender
and was not damaged or altered in
transit. Once connected to the
VPN tunnel, it seems to the user
that the client computer is directly
connected to the internal network.
To set up your L2PT connection,
enter the following data that was
provided to you by your ISP.
