25

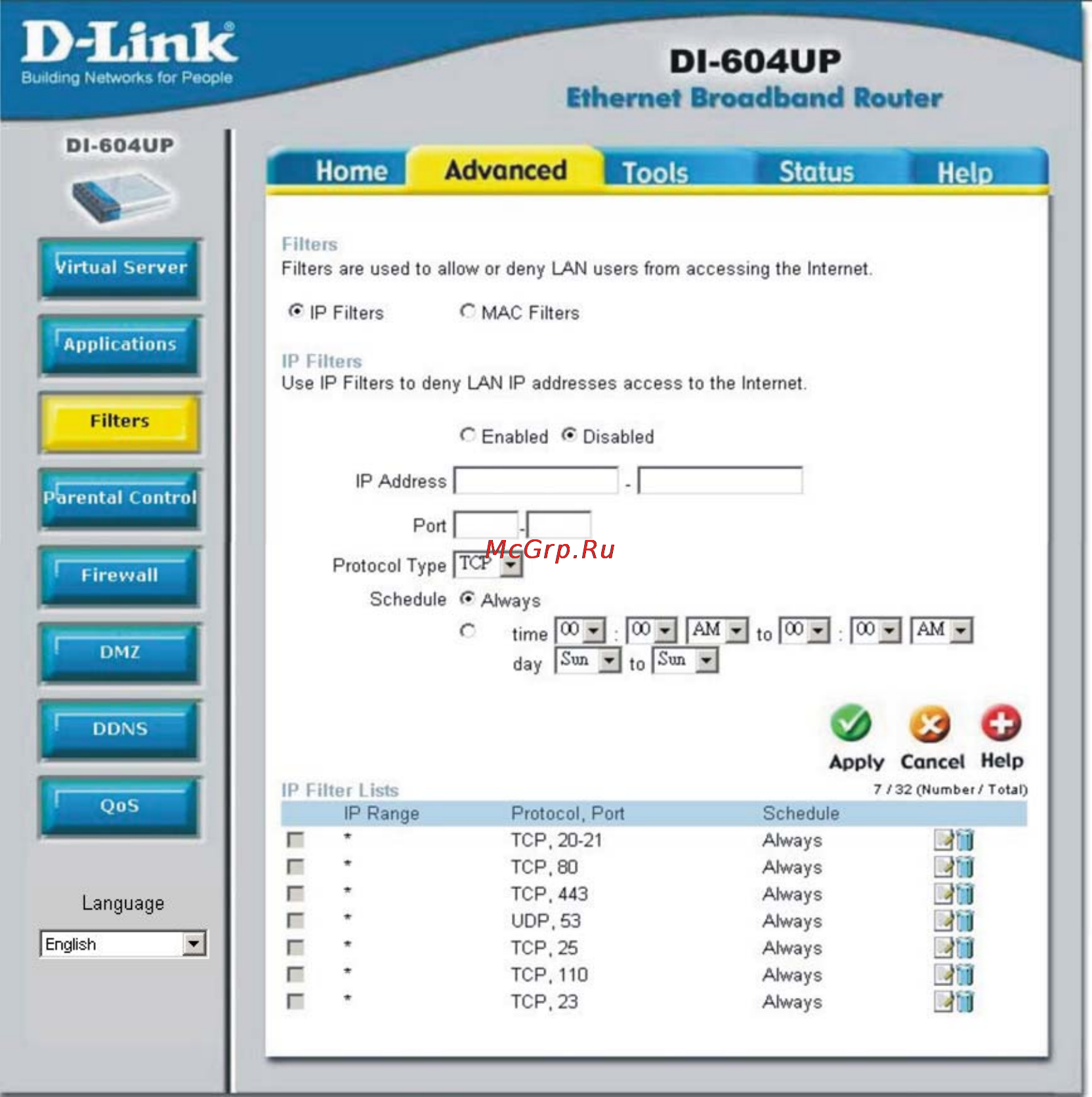

ADVANCED > FILTERS > IP FILTERS
Filters Filters are used to deny or allow LAN computers from accessing
the Internet. The DI-604UP can be setup to deny internal
computers by their IP or MAC addresses.
The DI-604UP can also block users from accessing restricted web
sites.
IP Filters Use IP Filters to deny LAN IP addresses from accessing the
Internet. You can deny specific port numbers or all ports for the
specific IP address.
IP The IP address of the LAN computer that will be denied access to
the Internet.
Port The single port or port range that will be denied access to the
Internet.
Schedule This is the schedule of time when the IP Filter will be enabled.
