D-Link DI-604UP [18/61] Bigpond cable

network account is billed according to the amount of time the Router is

actually connected to the Internet, enter an appropriate Idle Time value

(in seconds). This will disconnect the Router after the WAN connection

has been idle for the amount of time specified. The default value = 5.

MTU Enter an MTU value only if required by your ISP. Otherwise, leave it at

the default setting.

Connect Mode If Connect-on-demand is selected, will allow the router to connect any

workstation on your LAN to the Internet upon request. If Always-on, no

request from the workstation will be needed to connect to the Internet. If

Manual is selected, the workstation on the LAN must manually connect

to the Internet through this router.

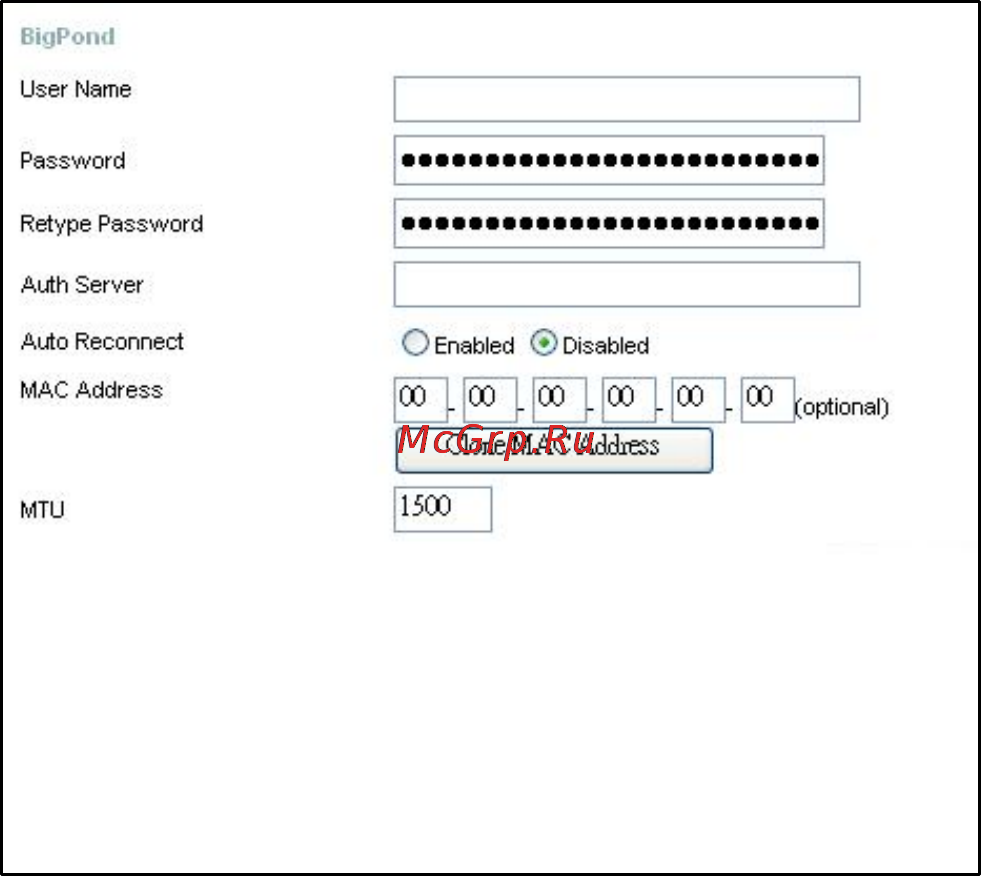

HOME > WAN > Other>BigPond Cable

This selection is for users having Big Pond Cable as their ISP. Enter the following information, as

provided to you by your ISP.

User Name Enter the user name as provided to you by your ISP.

Password Enter The PPPoE user name provided to you by your ISP.

Retype Password Retype the password entered in the previous field.

Auth Server Enter the name of the Authentication Server as provided to you by your ISP.

This is the computer that will accept your user name and password to be

authenticated on the network.

Auto Reconnect Checking the Enabled radio button will allow the router to reconnect to the

network automatically if it becomes disconnected.

MAC Address The default MAC Address is set to the WAN’s physical interface

MAC address on the Broadband Router. It is not recommended

that you change the default MAC address unless required by your

ISP.

Clone MAC Address The default MAC address is set to the WAN’s physical interface MAC

address on the Broadband Router. You can use the Clone MAC Address

button to copy the MAC address of the Ethernet Card installed by your ISP and

replace the WAN MAC address with the MAC address of the router. It is not

recommended that you change the default MAC address unless required by
