19
your ISP.
MTU Enter an MTU value only if required by your ISP. Otherwise, leave it at the
default setting.

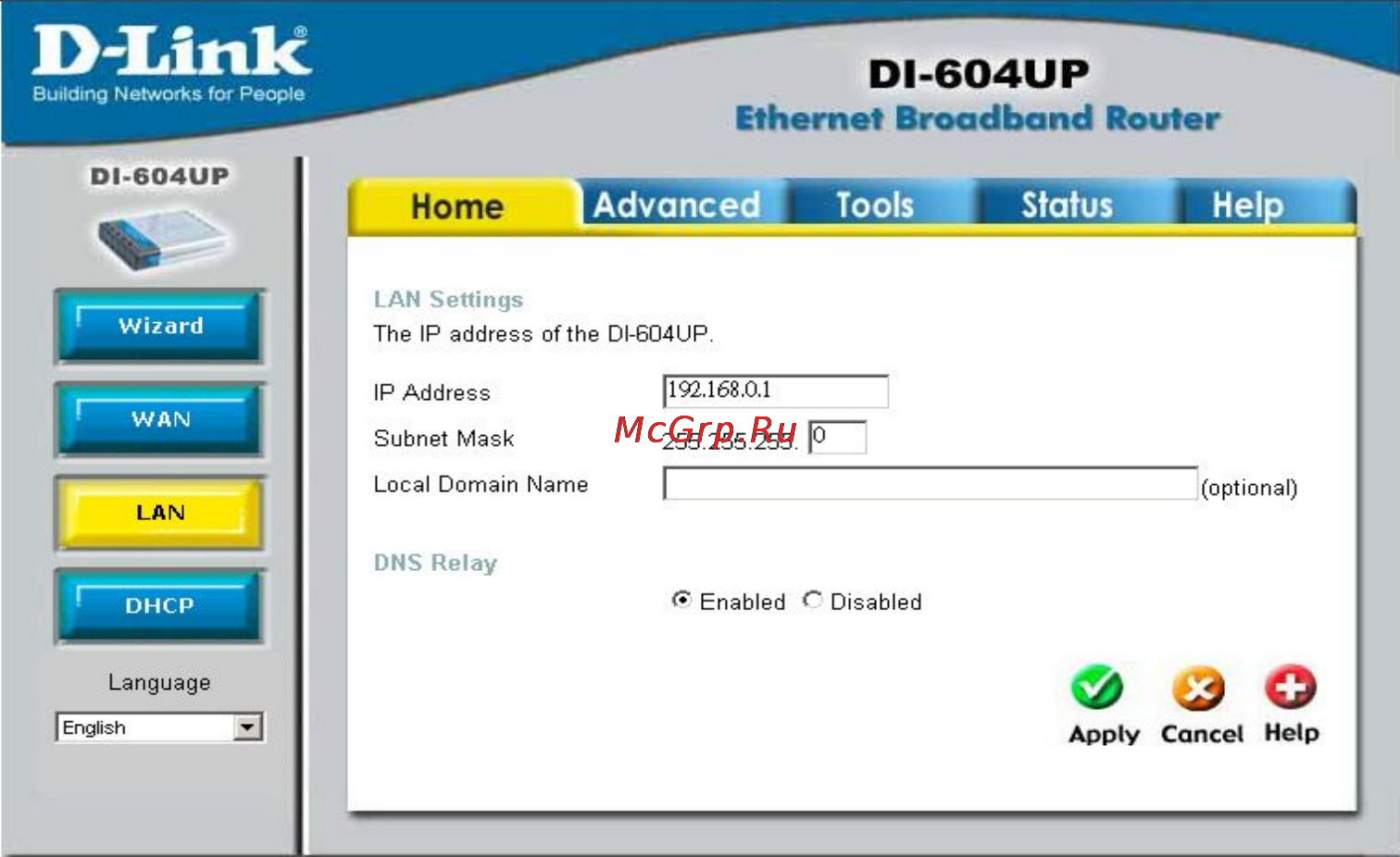

HOME > LAN
LAN is short for Local Area Network. This is considered your internal
network. These are the IP settings of the LAN interface for the DI-604UP.
These settings may be referred to as Private settings. You may change
the LAN IP address if needed. The LAN IP address is private to your
internal network and cannot be seen on the Internet.
IP Address The IP address of the LAN interface. The default IP address
is 192.168.0.1.
Subnet Mask The subnet mask of the LAN interface. The default subnet
mask is 255.255.255.0.
Local Domain Name This field is optional. Enter in the your local domain
name.
