33

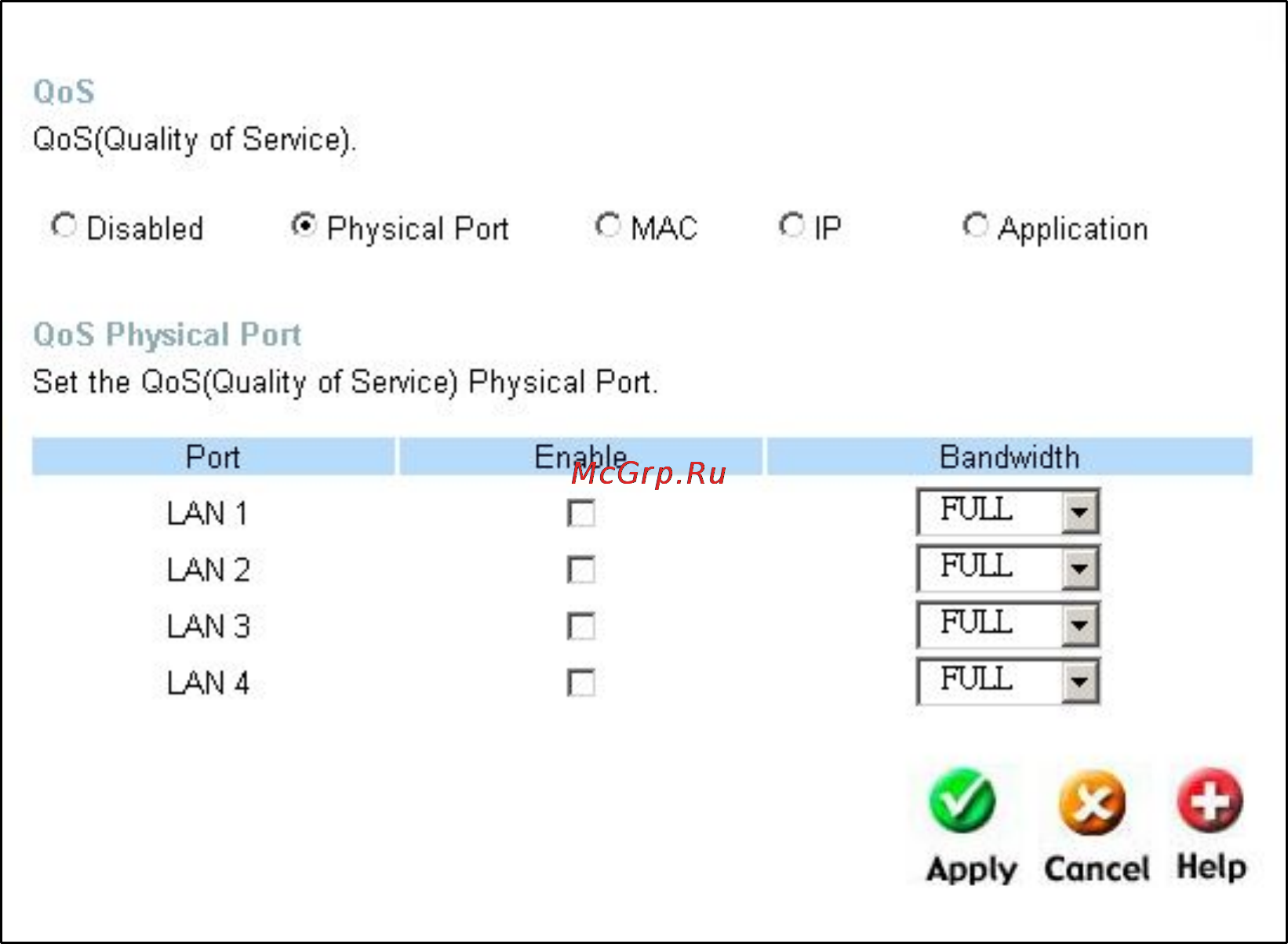

ADVANCED > QoS >Physical Port
To enable QoS per port, first click the Physical Port radio button which will reveal
the preceeding window for the user to configure. Simply click the Enable check box
of the corresponding port to enable QoS. You may also set the bandwidth for that
port by using that corresponding pull-down menu. The user may choose a
bandwidth between 128 Kbps to 32 Mbps. FULL denotes that the port will have the
maximum transfer speed allowed at any given time, up to 100Mbps. Click Apply to
confirm your settings.
