35
a lower priority in sending information through the router.
Source MAC Enter the source MAC address that will be set for high priority QoS in the
router.
DHCP Client The user may use the DHCP client to aid in choosing the MAC address to
be implemented for QoS. All devices connected to the router will be listed in
the pull-down menu. Simply choose the correct device and click the Clone
button, which will produce that devices MAC address in the Source MAC
field.
Bandwidth Use the pull-down menu to select the best bandwidth for the QoS Setting
on this router. The user may set a bandwidth between 1Kbps to 32Mbps.
Choosing Best Effort will set the router to allow the first user to access the
source MAC address to have the total bandwidth needed for the file being
transferred. Choosing Full will denote that the router will allot 100Mbps of
bandwidth for the specified QoS implementation. Only one QoS
implementation can be set at Full.
Click Apply to set the QoS for MAC
.

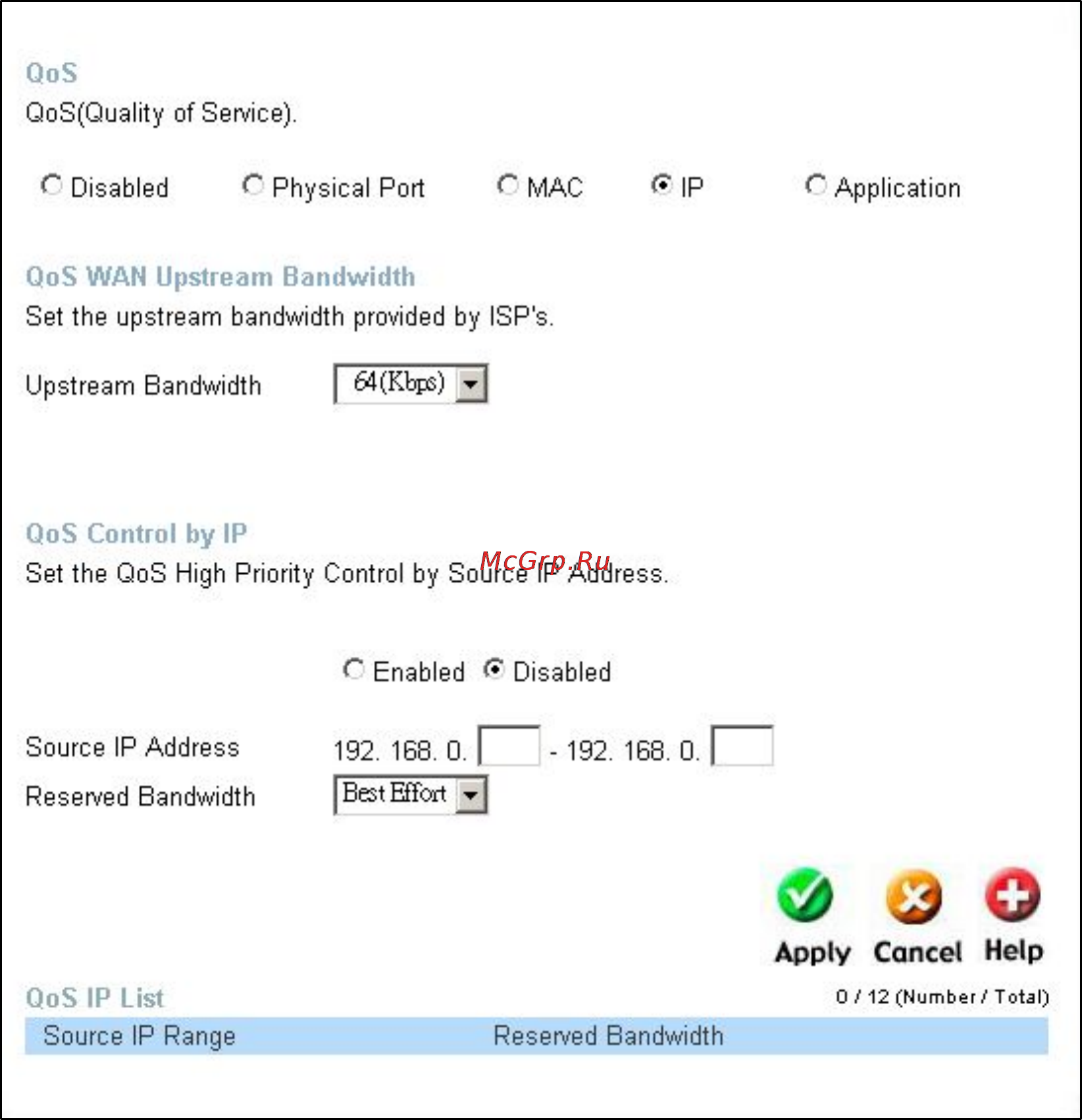

ADVANCED > QoS >IP
