43

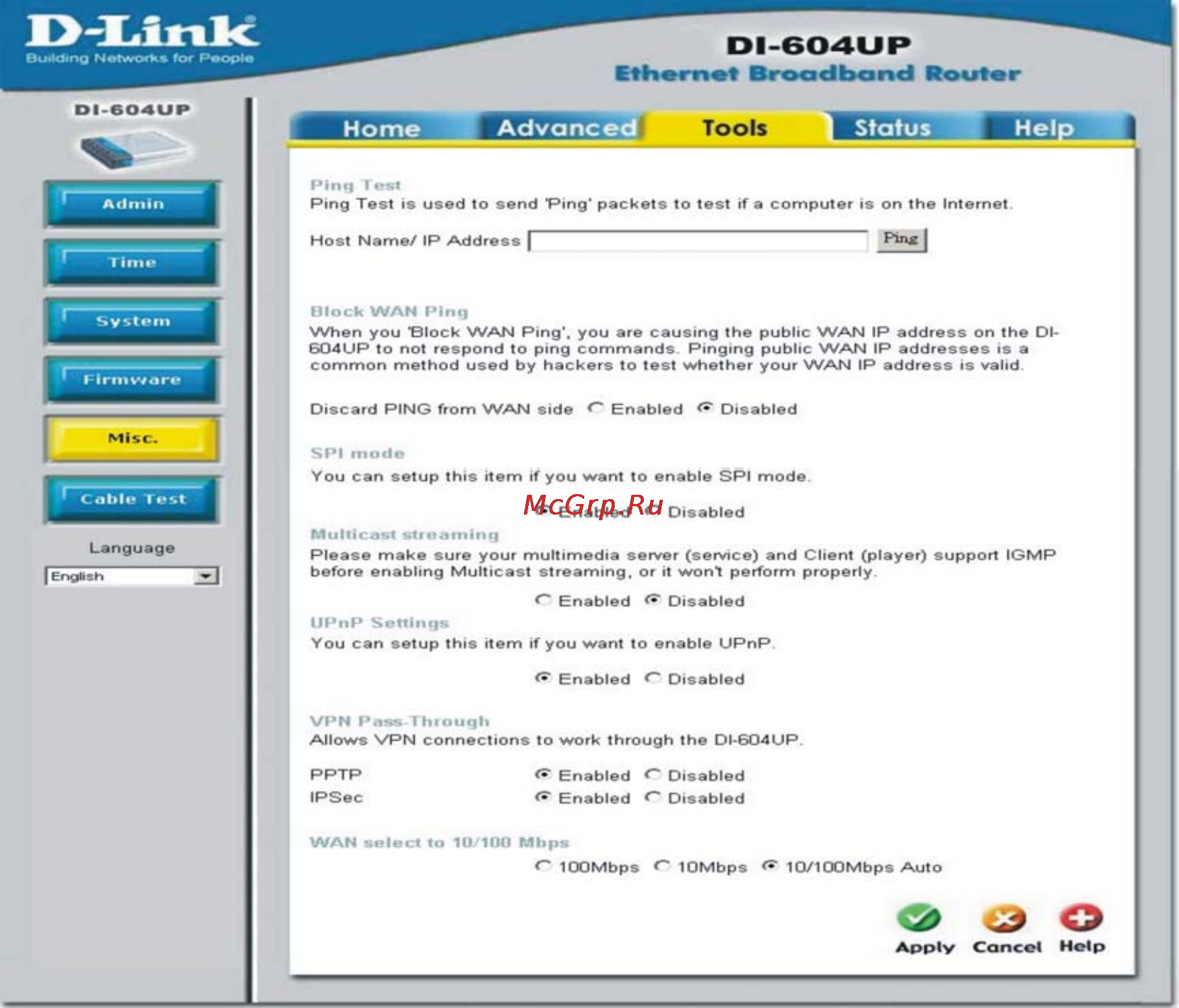

TOOLS > MISC
Miscellaneous Items These are additional tools and features of the Broadband
Router.
Ping Test This useful diagnostic utility can be used to check if a
computer is on the Internet. It sends ping packets and listens
for replies from the specific host.
Restart Device If for any reason the Broadband Router is not responding
correctly, you may want to restart the Broadband Router.
Block WAN Ping When you “Block WAN Ping”, you are causing the public
WAN IP address on the Broadband Router to not respond to
ping commands. Pinging public WAN IP addresses is a
common method used by hackers to test whether your WAN
IP address is valid.
Discard PING from WAN side By enabling this option, the DI-604UP will not
reply to ping (ICMP) request packets from the Internet.
VPN Pass-Through The Broadband Router supports VPN (Virtual Private Network)
pass-through for both PPTP (Point-to-Point Tunneling
Protocol) and IPSec (IP Security). Once VPN pass-through
is enabled, there is no need to
