57

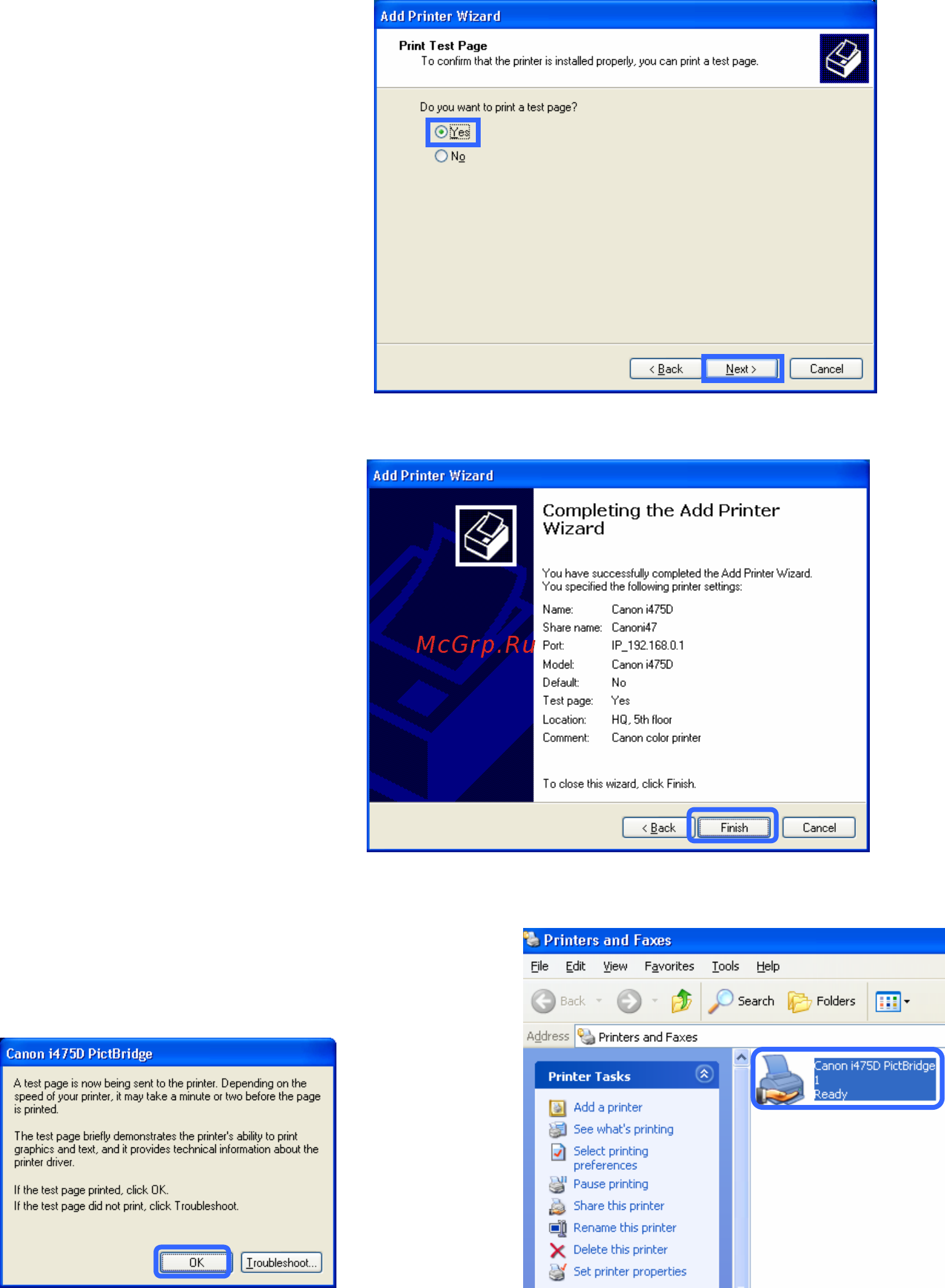

Select Yes, to print
a test page. A
successful printing
will confirm that you
have chosen the
correct driver.
Click Next.
This screen
gives you
information
about your
printer.
Click Finish.
When the test page
has printed, click
You have successfully added a printer.
Go to
Start >
Printers
and
Faxes. A
successful
installation
will display
the printer
icon as
