60

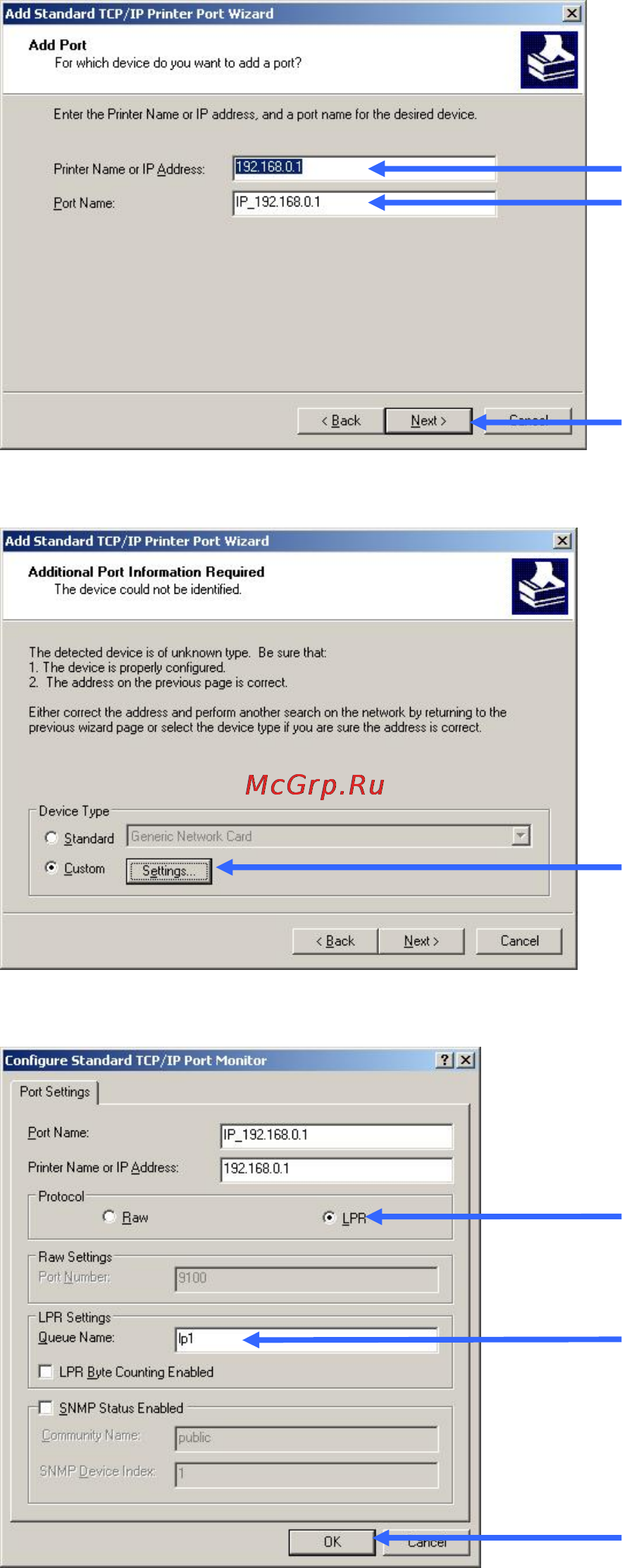

Enter the IP address (default:
192.168.0.1) of the DI-604UP to
the “Printer Name or IP Address”
field.
In the Port Name field, be sure to
add a name to the router IP
address to differentiate it from
other devices (ex:
IP_192.168.0.1dlink).
Click Next.
After clicking Next, the Wizard
requires additional information to
complete the process. In the
Additional Port Information
Required window, click Custom
> Settings. In the following
window, the user will add the
Queue Name.
In the Configure Standard
TCP/IP Port Monitor window,
first select LPR in the Protocol
section.
Next, add the Queue Name that
was automatically generated for
you by your DI-604UP (in this
case, lp1).
Click OK to continue.
