Dell Optiplex 5250 [16/78] Installing the hard drive assembly

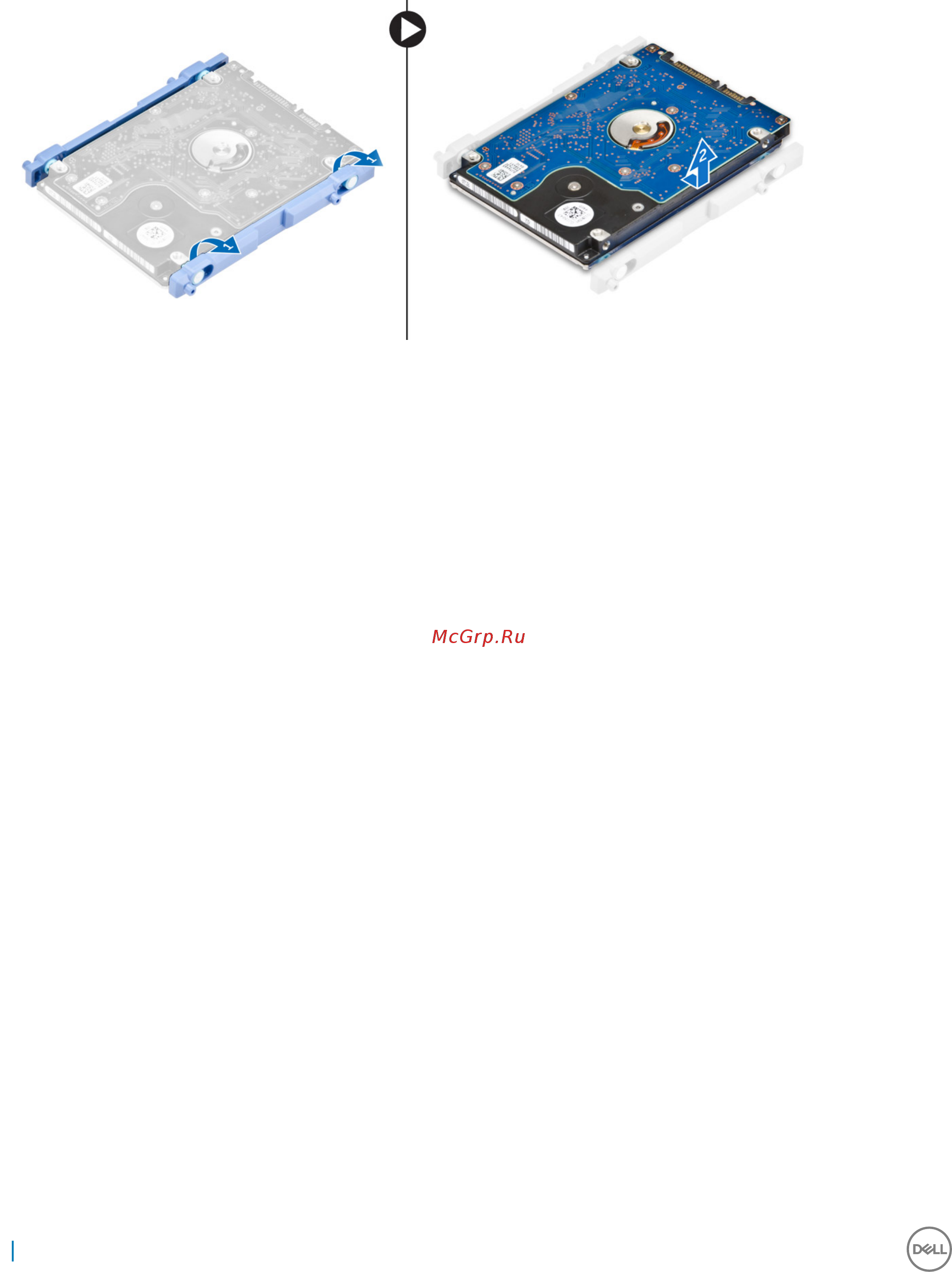

4 To remove the hard drive bracket:

a Pry the edges of the bracket to release the hard drive [1].

b Slide the hard drive and lift it away from the bracket [2].

Installing the hard drive assembly

1 Align the hard drive until the notches are aligned and the hard drive is secured in the bracket.

2 Place the hard drive onto the hard drive cage until the notches are aligned, then slide the Hard Drive assembly until the tab locks into

the cage.

3 Install the:

a back cover

b stand

4 Follow the procedure in After working inside your computer.

Оптический дисковод

Removing the optical drive assembly

1 Follow the procedure in Before working inside your computer.

2 Remove the:

a stand

b back cover

3 To remove the optical drive assembly:

a Press the securing tab at the base of the drive to release the optical drive assembly [1].

b Slide the optical drive assembly to remove it away from the computer [2].

16 Извлечение и установка компонентов
