Dell Optiplex 5250 [39/78] Installing the processor

h SSD card

i WLAN card

j memory

k heat sink

l system fan

3 To remove the processor:

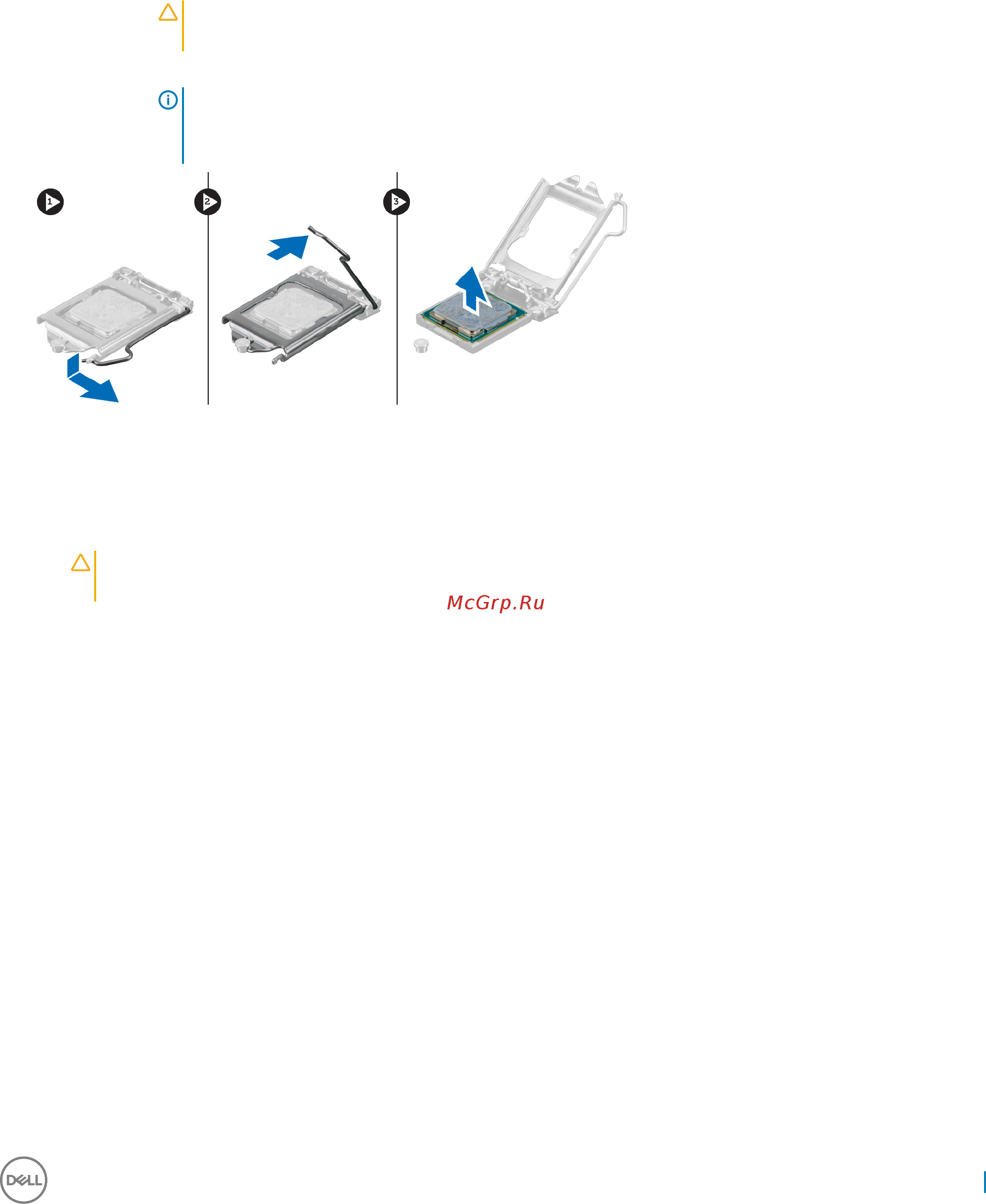

a Release the socket lever by pushing the lever down and out from under the tab on the processor shield [1].

b Lift the lever upward and lift the processor shield [2].

CAUTION: The processor socket pins are fragile and can be permanently damaged. Be careful not to bend

the pins in the processor socket when removing the processor out of the socket.

c Lift the processor out of the socket [3].

NOTE: After removing the processor, place it in an antistatic container for reuse, return, or temporary

storage. Do not touch the bottom of the processor to avoid damage to the processor contacts. Touch only

the side edges of the processor.

Installing the processor

1 Align the processor with the socket keys.

CAUTION: Do not use force to seat the processor. When the processor is positioned correctly, it engages easily into the

socket.

2 Align the pin-1 indicator of the processor with the triangle on the socket.

3 Place the processor on the socket such that the slots on the processor align with the socket keys.

4 Close the processor shield by sliding it under the retention screw.

5 Lower the socket lever and push it under the tab to lock it.

6 Install:

a system fan

b heat sink

c memory

d WLAN card

e SSD card

f system board shield

g VESA mount bracket

h cable cover

i speaker

j speaker cover

k back cover

l stand

7 Follow the procedure in After working inside your computer.
