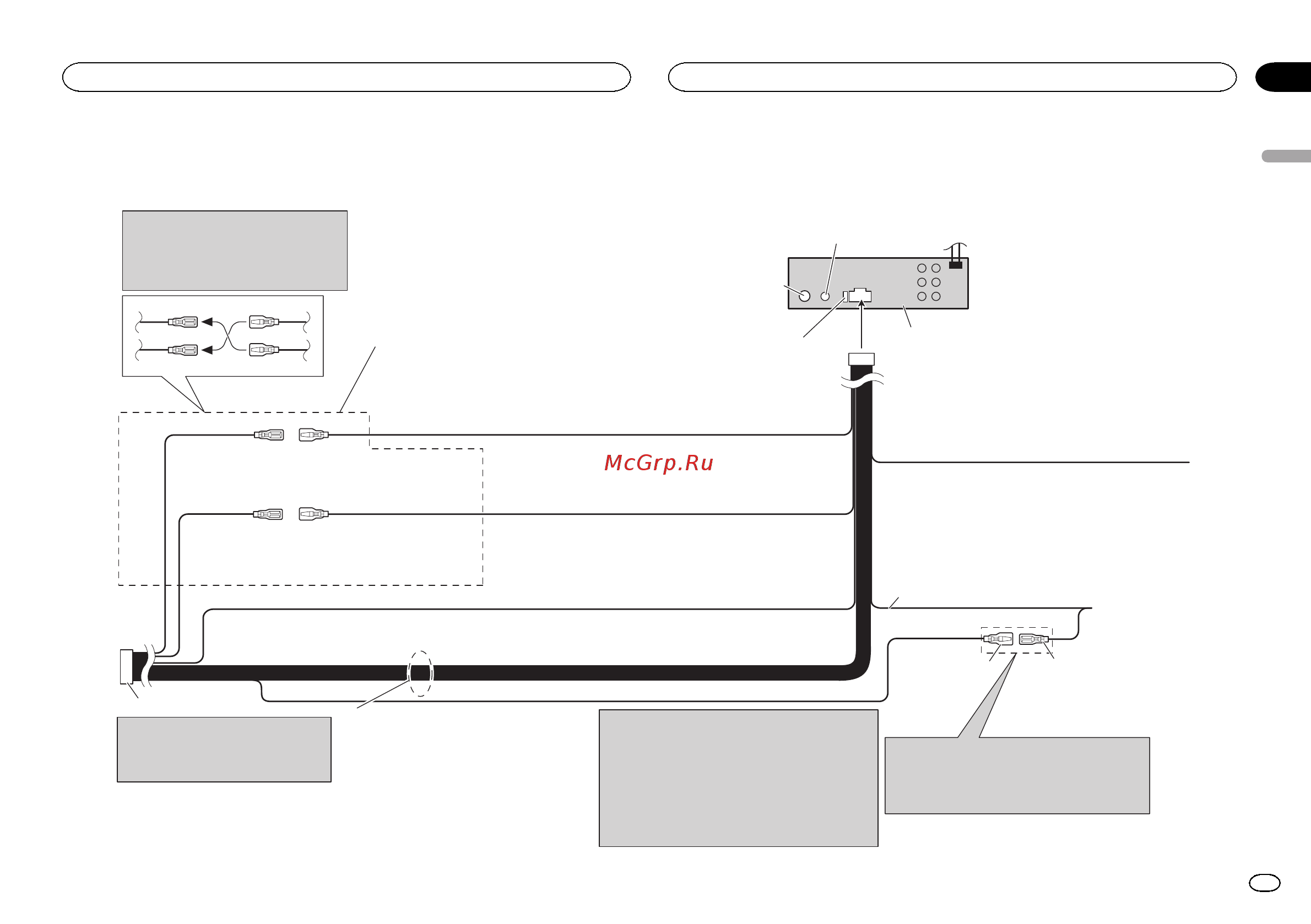

Power cable connection
1*
3*
2*
4*
Note:
Depending on the kind of vehicle, the
function of 2* and 4* may be different. In
this case, be sure to connect 1* to 4*
and 3* to 2*.
Connect leads of the same
color to each other.
Yellow (2*)
Back-up (or
accessory)
Red (4*)
Accessory
(or back-up)
Yellow (1*)
Connect to the constant
12 V supply terminal.
Red (3*)
Connect to terminal controlled
by ignition switch (12 V DC).
ISO connector
Note:
In some vehicles, the ISO connector
may be divided into two. In this case,
be sure to connect to both connectors.
Speaker leads
White: Front left
White/black: Front left
Gray: Front right
Gray/black: Front right
Green: Rear left or subwoofer 
Green/black: Rear lef t or subwoofer
Violet: Rear right or subwoofer
Violet/black: Rear right or subwoofer
Blue/white
Connect to system control terminal of the
power amp (max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna
relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 5* and
6* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 5* and 6*.
Yellow/black
If you use an equipment with Mute function, wire
this lead to the Audio Mute lead on that equipment.
If not, keep the Audio Mute lead free of any
connections.
Black (chassis ground)
Connect to a clean, paint-free metal location.
This product
Fuse (10 A)
Wired remote input
Hard-wired remote control
adapter can be connected
(sold separately).
Antenna jack
Blue/white (5*)
Notes:
Change the initial setting of this unit (refer to the
Operation Manual). The subwoofer output of this
unit is monaural.
When using a subwoofer of 70 W (2 Ω), be sure
to connect the subwoofer to the violet and
violet/black leads of this unit. Do not connect
anything to the green and green/black leads.
English
Connections
3
Section
Connections
En
01
