![Pioneer DEQ-P7000 [5/8] Fig 6 abb 6 afb 6](/img/pdf.png)
Pioneer DEQ-P7000 [5/8] Fig 6 abb 6 afb 6
![Pioneer DEQ-P7000 [5/8] Fig 6 abb 6 afb 6](/views2/1464907/page5/bg5.png)

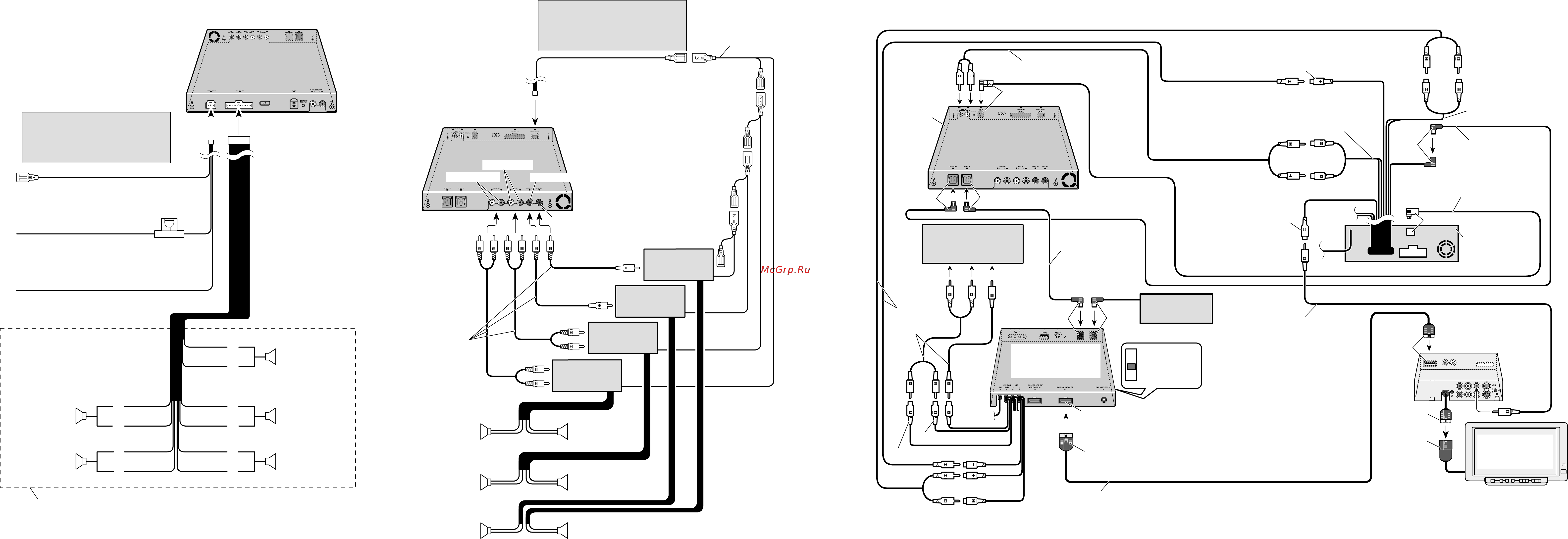

Fig. 6
Abb. 6
Afb. 6
16. Gray/black14. White/black
18. Green 20. Violet
10. Left
11. Right
13. White
15. Gray
19. Green/black 21. Violet/black
12. Front speaker 12. Front speaker
17. Rear speaker 17. Rear speaker
1. This product
4. Yellow
To terminal always supplied with
power regardless of ignition
switch position.
5. Fuse holder
6. Black (ground)
To vehicle (metal) body.
3. Blue/white
To system control terminal of the power
amp or Auto-antenna relay control
terminal (max. 300 mA 12 V DC).
22. Do not connect anything to the
speaker leads that are not connected
to speakers.
2. When you connect a power amp (sold
separately), be sure to use the
blue/white lead of this unit. If you use
the blue/white lead of the head unit, it
causes noises.
8. Black
7. Black/white
9. Center speaker
+
≠
+
≠
+
≠
+
≠
+
≠
Fig. 8
Abb. 8
Afb. 8
1. This product
5. Rear video output
(REAR VIDEO OUTPUT)
(Yellow)
12. Optical cable (supplied)
27. 20 pin cable
(supplied with the display)
25. Yellow
21. To audio
inputs
7. Right (Red)
8. Left (White)
FM MODULATOR
IP-BUS MAIN UNIT
IP-BUS AV MASTER
22. To video
input
14. RCA cable
(supplied with the
head unit)
10. Rear audio output
(DVD REAR MONITOR
OUTPUT)
15. Purple
16. White
17. Gray
3m
3m
7. Right (Red)8. Left
(White)
25. Yellow
7. Right (Red)
8. Left (White)
7. Right (Red)
8. Left (White)
3m
9. Front video output
(FRONT VIDEO
OUTPUT)
(Yellow)
6. Subwoofer output or non fading
output (SUBWOOFER OUTPUT
or NON-FADING OUTPUT)
20. IP-BUS cable
(supplied with
the TV tuner)
24. Hide-away TV tuner
(e.g. GEX-P7000TVP)
(sold separately)
28. Multi-CD player
(sold separately)
26. Green
4. Black
3. Blue
19. Display with
RCA input jacks
11. IP-BUS cable (supplied)
18. Color LCD display
(e.g. AVD-W6010)
(sold separately)
13. Head unit
(e.g. DVH-P7000R)
(sold separately)
3. Blue
4. Black 3. Blue
4. Black
3. Blue
26. Green
23. RCA cables
(sold separately)
2. RCA cable (supplied)
Fig. 7
Abb. 7
Afb. 7
1. This product
3. Blue/white
To system control terminal of the power
amp or Auto-antenna relay control
terminal (max. 300 mA 12 V DC).
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
11. Front speaker 11. Front speaker
12. Rear speaker 12. Rear speaker
13. Center speaker 14. Subwoofer
4. System remote control
10. RCA cables
(sold separately)
9. Power amp
(sold separately)
9. Power amp
(sold separately)
9. Power amp
(sold separately)
9. Power amp
(sold separately)
8. Subwoofer output
6. Rear output
5. Front output
7. Center output
2. When you connect a power amp (sold
separately), be sure to use the
blue/white lead of this unit. If you use
the blue/white lead of the head unit, it
causes noises.
