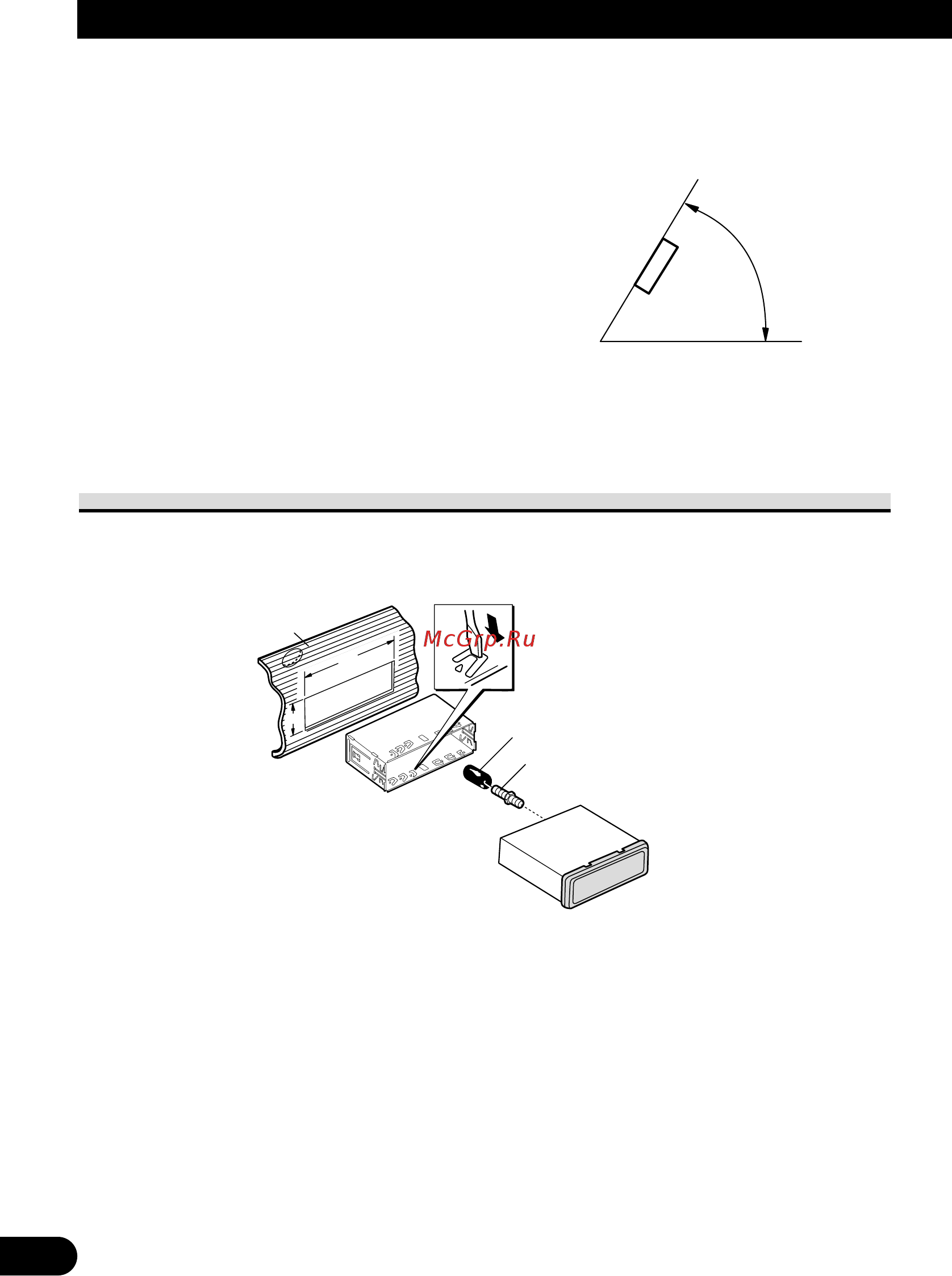

Installation with the rubber bush

Fig. 4

182

Installation

Note:

• Before finally installing the unit, connect the

wiring temporarily, making sure it is all connect-

ed up properly, and the unit and the system work

properly.

• Use only the parts included with the unit to ensure

proper installation. The use of unauthorized parts

can cause malfunctions.

• Consult with your nearest dealer if installation

requires the drilling of holes or other modifica-

tions of the vehicle.

• Install the unit where it does not get in the dri-

ver’s way and cannot injure the passenger if there

is a sudden stop, like an emergency stop.

• The semiconductor laser will be damaged if it

overheats, so don’t install the unit anywhere hot

— for instance, near a heater outlet.

• If installation angle exceeds 60° from horizontal,

the unit might not give its optimum performance.

(Fig. 3)

Fig. 3

60°

Dashboard

Holder

After inserting the holder into the dash-

board, then select the appropriate tabs

according to the thickness of the dash-

board material and bend them.

(Install as firmly as possible using the

top and bottom tabs. To secure, bend

the tabs 90 degrees.)

Rubber bush

Screw
