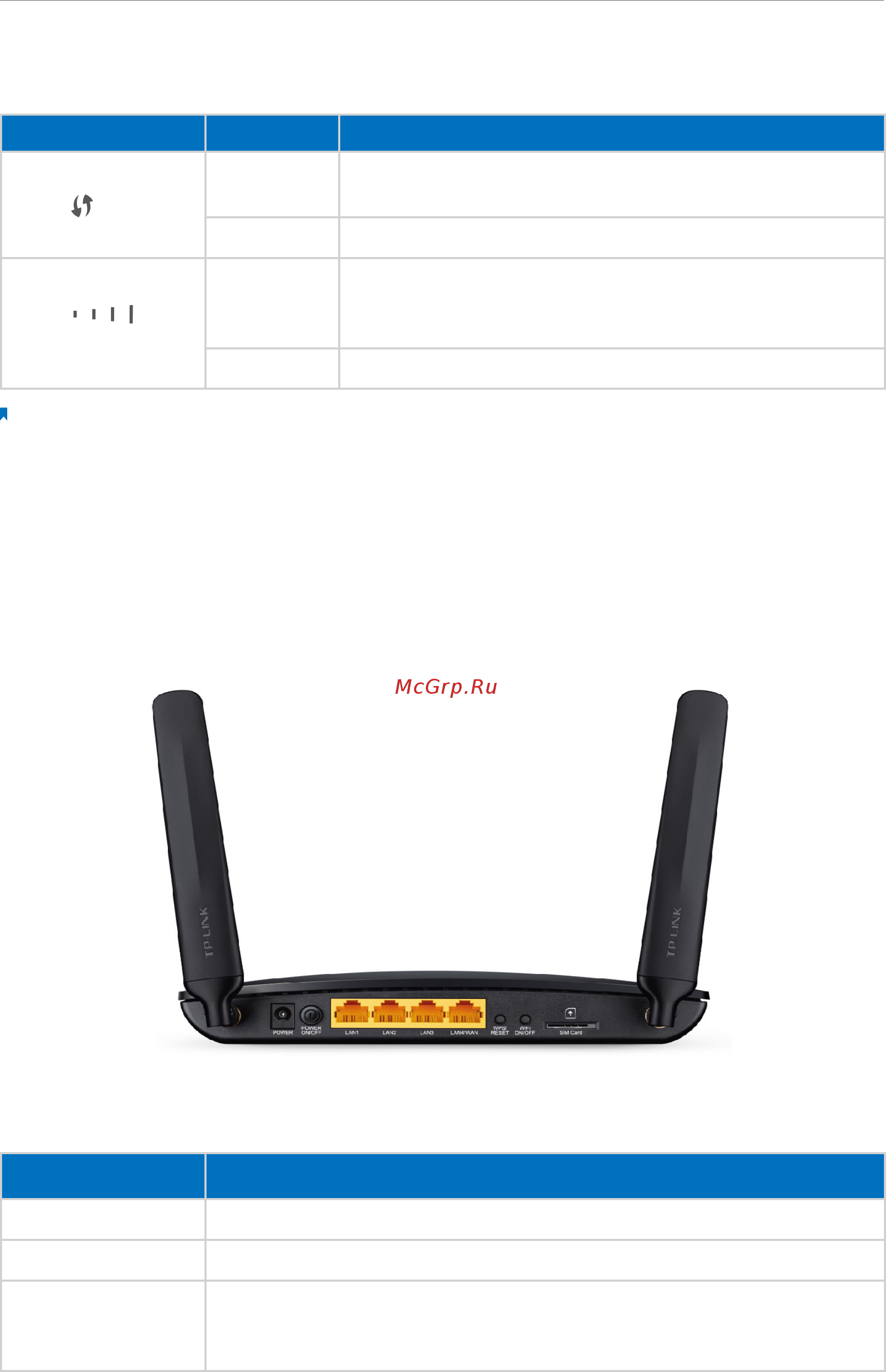

![Tp-Link Archer MR200 V1 [10/97] 2 the back panel](/views2/1468900/page10/bga.png)
6
Chapter 1
Get to Know About Your 4G LTE Router
LED Explanation
Name Status
Indication
WPS
On/ Off
The LED stays on for no more than 5 minutes when a WPS
connection is established, then turns off.
Flashing WPS connection is in progress. This may take up to 2 minutes.
Signal Strength
On
Indicates the mobile Internet signal strength the router
receives in the current location. More lit bars indicates a
better signal strength.
Off No signal. Please refer to Note 2 for troubleshooting.
Note:
1. If the Internet LED is off, please check your Internet connection first. Refer to Connect Your 4G LTE Router for more
information about how to make Internet connection correctly. If you have already made a right connection,
please contact your ISP to make sure your Internet service is available now.
2. If the Signal Strength LED is off, please check your Internet LED first. If your Internet LED is also off, please refer
to Note 1. If your Internet LED is on, please relocate the router to a location that receives a strong mobile Internet
signal, such as near a window.
1. 3. 2. The Back Panel
The router’s back panel shows the connection ports, buttons and antennas (view from
left to right). Refer to the following for detailed instructions.
Item
Description
POWER For connecting the router to power socket via the provided power adapter.
POWER ON/OFF The switch for the power. Press it to power on or off the router..
LAN1, LAN2, LAN3,
LAN4/WAN
For connecting to your PCs or other Ethernet network devices.
In wireless router mode, the LAN4/WAN port is used for connecting to a
Cable/FTTH/VDSL/ADSL device.
