Chapter 11

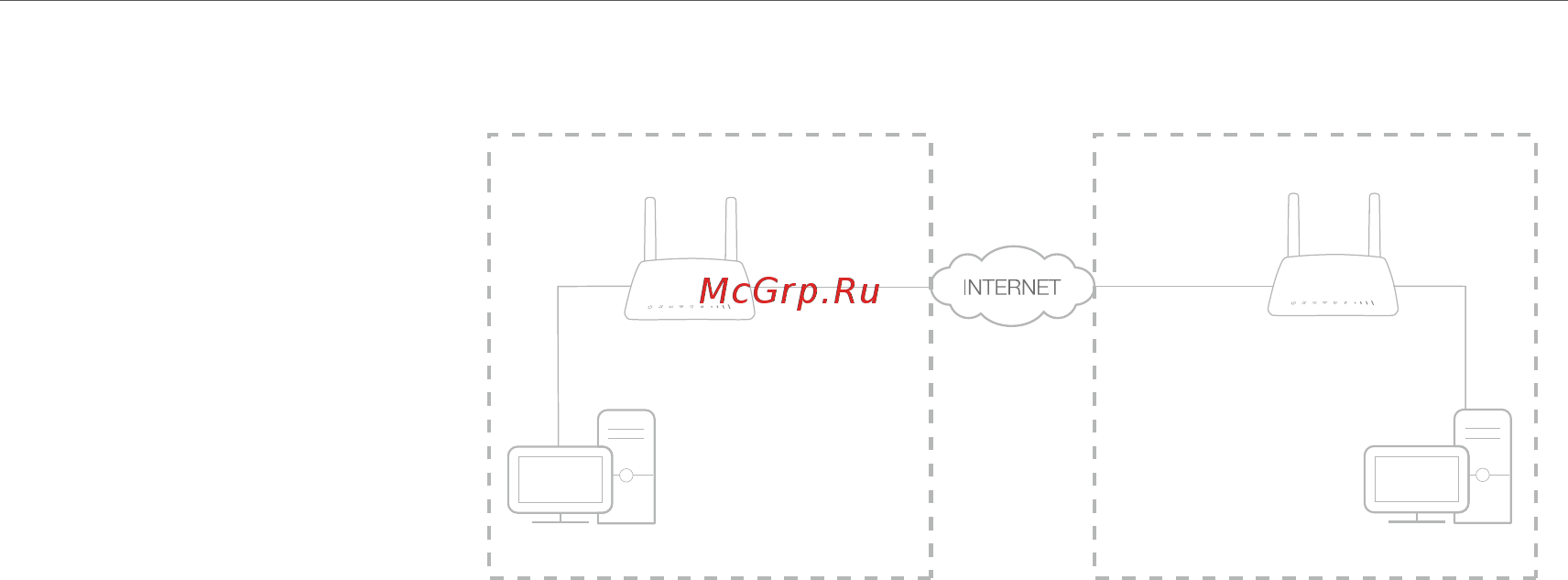

Specify Your Network Settings

Router 1

LAN: 192.168.1.1

WAN: 219.134.112.246

PC 1

Subnetmask: 255.255.255.0

WAN: 219.134.112.247

Router 2

PC 2

LAN: 192.168.2.1

Subnetmask: 255.255.255.0

Site A

Site B

1. 1. Make sure of the topology you want to build and record

site A (local network) and site B (remote network)’s LAN IP

and WAN IP.

2. Configuration on site A (local network).

1 ) Visit http://tplinkmodem.net, and log in with the password

you set for the router.

2 ) Go to Advanced > Network > IPSec VPN to open the

configuration page. Click Add to set up a VPN tunnel.

How can I

do that?
