T6. How to use the router as a regular wireless router to share my Internet ?

The router support two operation modes, 3G/4G Router Mode and Wireless Router

mode. If you already have a modem or your Internet comes via an Ethernet cable from

the wall, you can set up the router as a regular wireless router to share the Internet.

1. Connect your router’s LAN4/WAN port to the modem or the network port.

2. Visit http://tplinkmodem.net, and log in with password you set for the router.

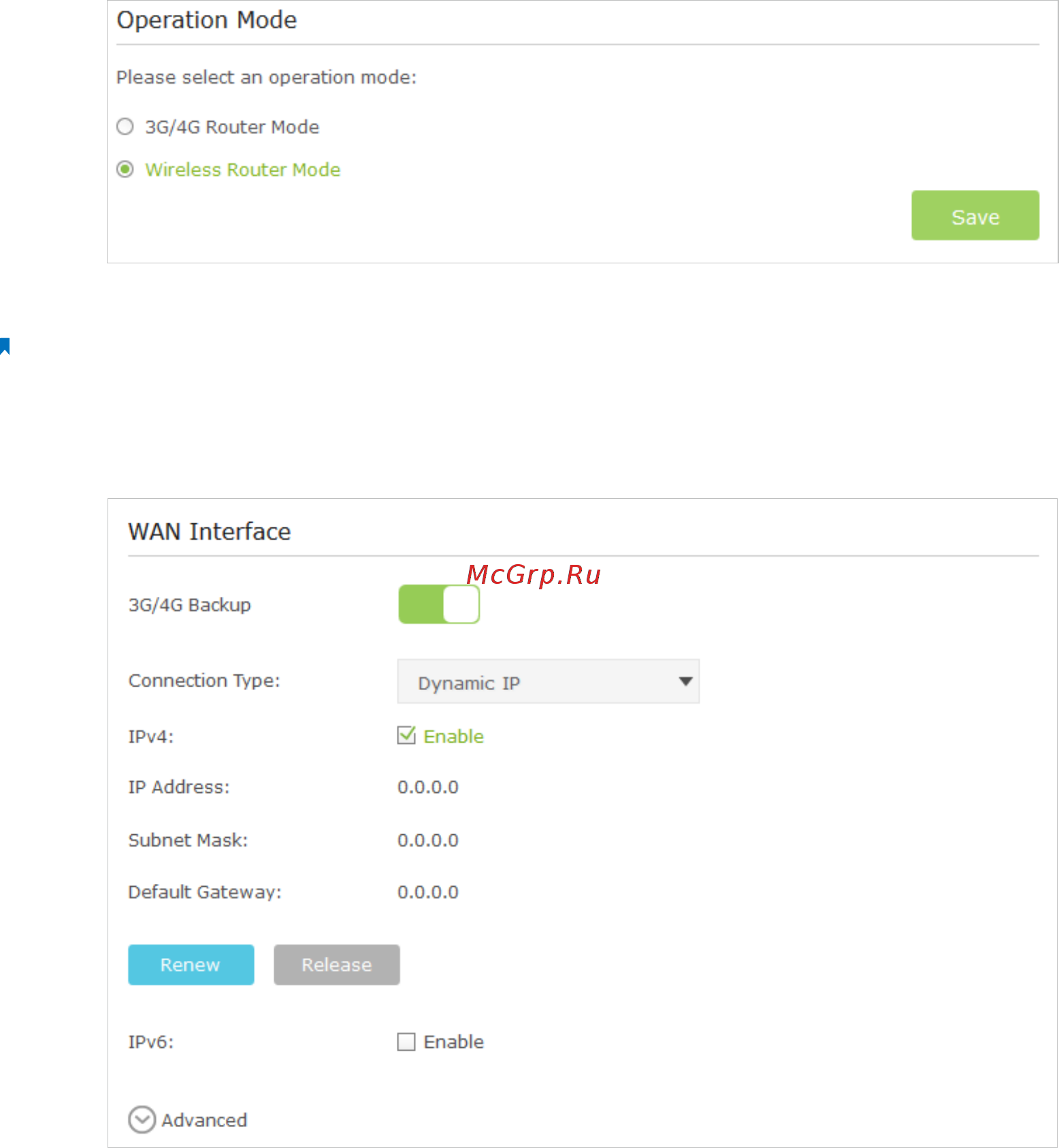

3. Go to Advanced > Operation Mode page.

4. Select the Wireless Router Mode option and click Save to make the settings effective.

Note:

In wireless router mode, you can use 3G/4G network as a backup solution for Internet access. When 3G/4G Backup

is enabled, your router will be directly connected to the 3G/4G network when the original network service fails. To

enable or disable 3G/4G Backup, go to Advanced > Network > Internet.

T7. How to use the WDS Bridging function to extend my wireless

network?

My house covers a large area. The wireless network coverage of the router I’m using

(the root router) is limited. I want to use an extended router to extend the wireless

network of the primary router. Follow the steps to configure the router.
