Tp-Link Archer MR200 V1 [53/97] 3 reserve lan ip addresses

Chapter 11

Specify Your Network Settings

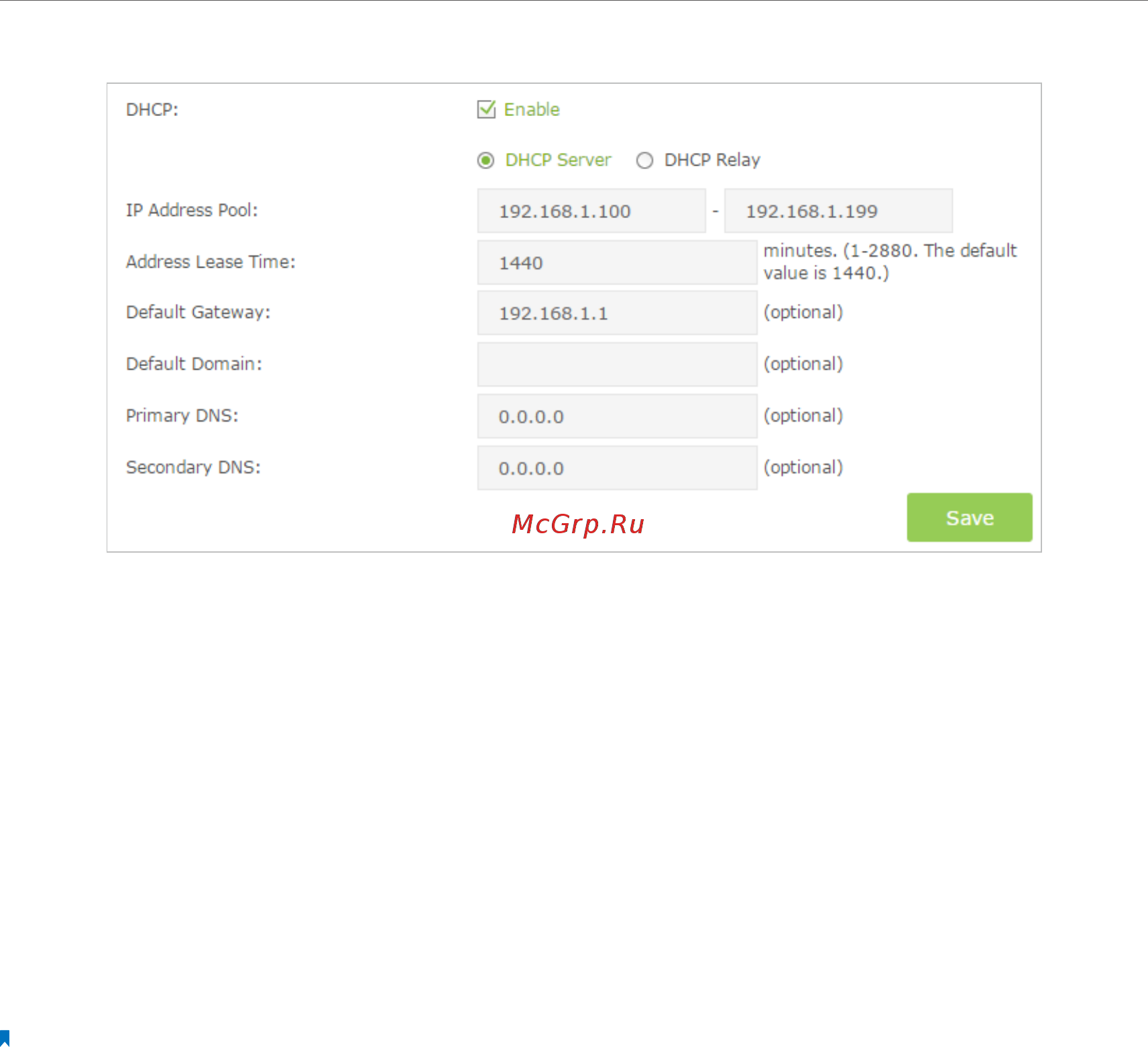

3. Select DHCP to enable the DHCP function and select DHCP Server.

4. Specify the IP Address Pool, the start address and end address must be on the same

subnet with LAN IP. The router will assign addresses within this specified range to

its clients. It is from 192.168.1.100 to 192.168.1.199 by default.

5. Enter a value for the Address Lease Time. The Address Lease Time is the amount

of time in which a DHCP client can lease its current dynamic IP address assigned

by the router. After the dynamic IP address expires, the user will be automatically

assigned a new dynamic IP address. The default is 1440 minutes.

6. Keep the rest of the settings as default and click Save to make the settings effective.

Note:

1. 1. The router can be configured to work as a DHCP Relay. A DHCP relay is a computer that forwards DHCP data

between computers that request IP addresses and the DHCP server that assigns the addresses. Each of the

device’s interfaces can be configured as a DHCP relay. If it is enabled, the DHCP requests from local PCs will be

forwarded to the DHCP server that runs on WAN side.

2. 2. You can also appoint IP addresses within a specified range to devices of the same type by using Condition

Pool feature. For example, you can assign IP addresses within the range (192.168.1.50 to192.168.1.80) to Camera

devices, thus facilitating the network management. Enable DHCP feature and configure the parameters according

to your actual situation on Advanced > Network > LAN Settings page.

11. 3. 3. Reserve LAN IP Addresses

You can view and add a reserved address for a client. When you specify an IP address

for a device on the LAN, that device will always receive the same IP address each time

when it accesses the DHCP server. If there are some devices in the LAN that require

permanent IP addresses, please configure Address Reservation on the router for the

purpose.

Follow the steps below to reserve an IP address for your device.

1. Visit http://tplinkmodem.net, and log in with the password you set for the router.

2. Go to Advanced > Network > LAN Settings page.
