Tp-Link Archer MR200 V1 [38/97] View sent messages

Chapter 8

SMS

Tips:

You can enter up to 160 letters or numbers, and any exceeding characters will be sent in the next message. You can

send up to 5 messages each time.

4. Click Send to send the message or click Save to save the message to the Drafts.

8. 3. View Sent Messages

1. Visit http://tplinkmodem.net, and log in with the password you set for the router.

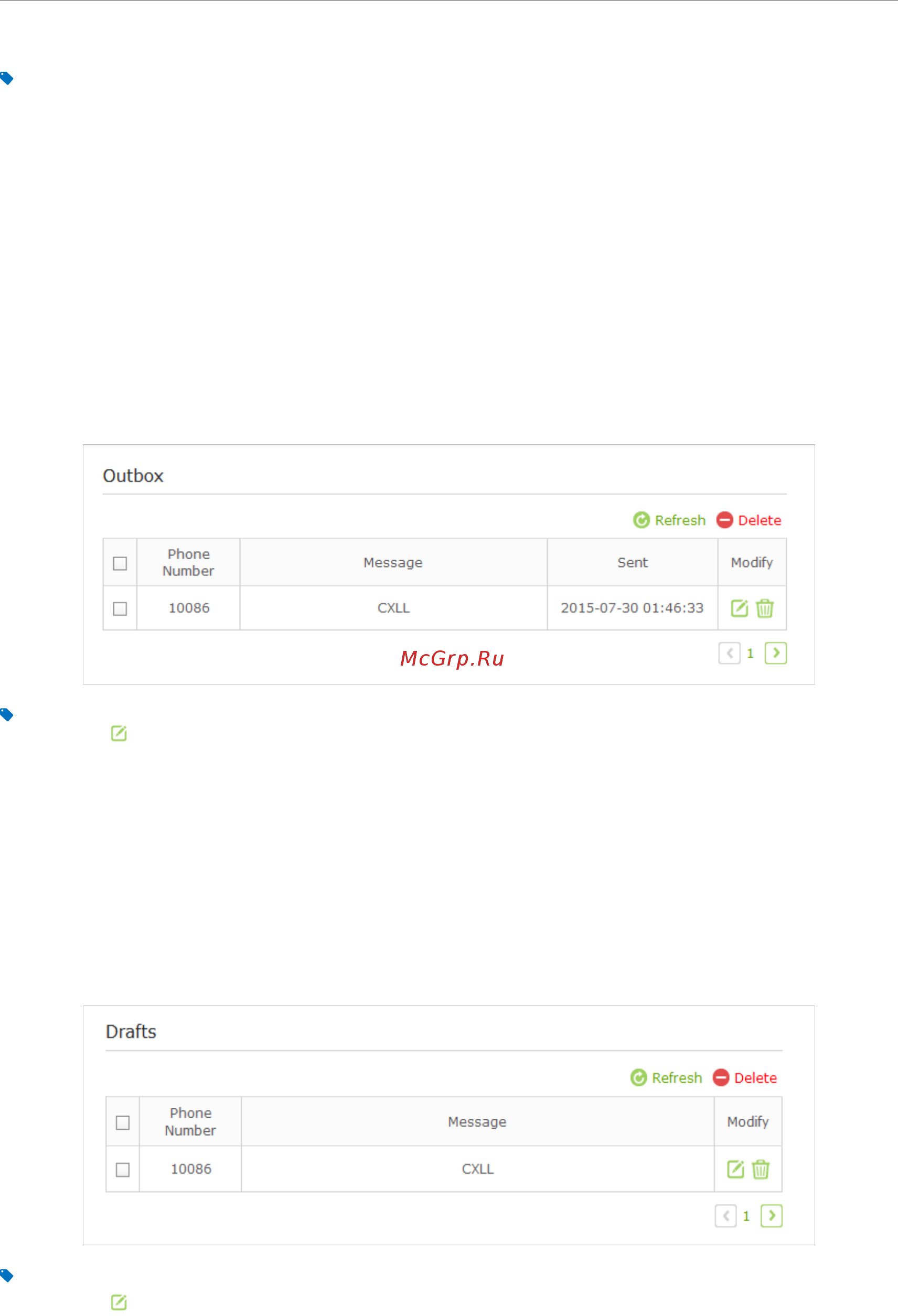

2. Go to Advanced > SMS > Outbox page. All the messages you sent are listed in the

Outbox table.

Tips:

You can click

to edit and forward the message.

8. 4. View Drafts

1. Visit http://tplinkmodem.net, and log in with the password you set for the router.

2. Go to Advanced > SMS > Drafts page. All the unsent messages are listed in the

Drafts table.

Tips:

You can click

to edit and forward the message.
