Tp-Link Archer MR200 V1 [75/97] To save the system logs

Chapter 12

Administrate Your Network

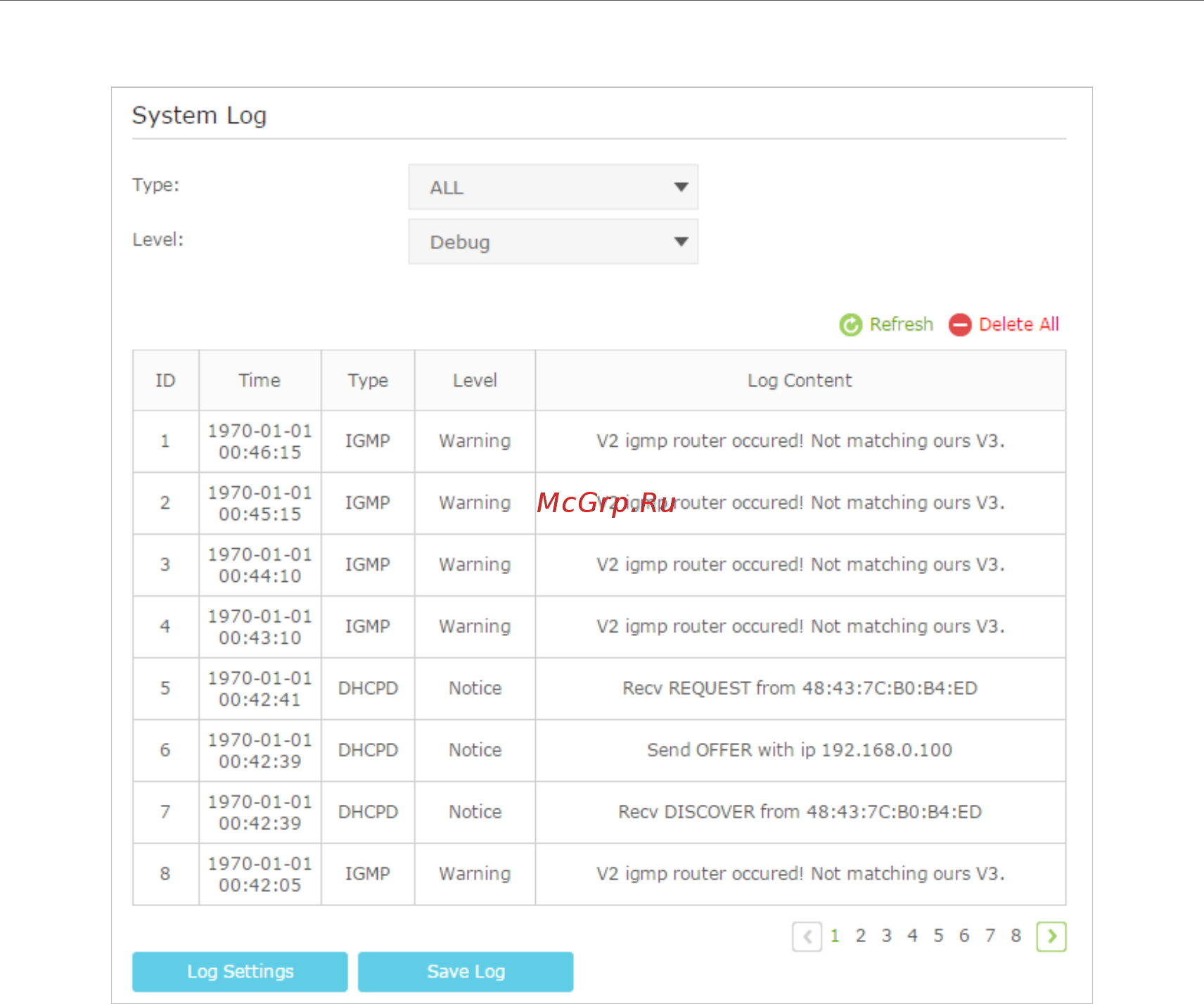

To view the system logs:

1. Select the log Type. Select ALL to view all kinds of logs, or select DHCPD or IGMP to

view the specific logs.

2. Select the log Level and you will see the logs with the specific or higher levels.

3. Click Refresh to refresh the log list.

To save the system logs:

You can choose to save the system logs to your local computer or a remote server.

Click Save Log to save the logs in a txt file to your computer.

Click Log Settings to set the save path of the logs.
