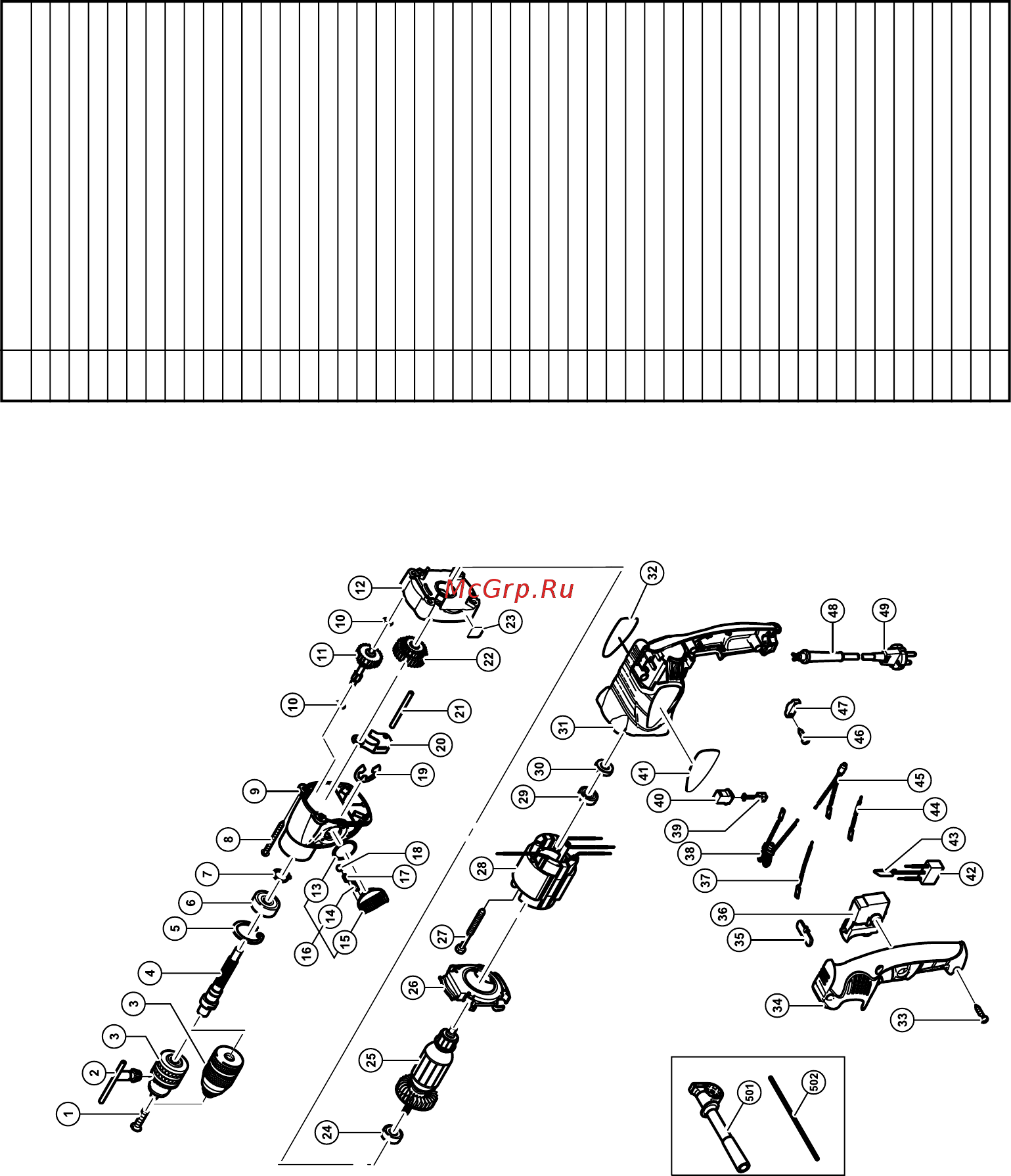

36
Item
Part Name
No.
1 FLAT HD. SCREW (A) (LEFT HAND) M6X25
2 CHUCK WRENCH
3 DRILL CHUCK
4 SPINDLE (E)
5 RETAINING RING FOR D35 HOLE
6 BALL BEARING 6202DDCMPS2L
7 RETAINING RING FOR D15 SHAFT
8 TAPPING SCREW (W/FLANGE) D5X45
9 GEAR COVER (A)
10 WASHER (B)
11 SECOND PINION (B)
12 INNER COVER
13 O-RING (S-22)
14 SHIFT PIN
15 SHIFT LEVER
16 SHIFT LEVER ASS’Y
17 SPRING (H)
18 STEEL BALL D3.5
19 RETAINING RING (E-TYPE) FOR D15 SHAFT
20 SHIFT ARM
21 PIN D5
22 GEAR SET
23 LABEL (SLIP CLUTCH)
24 BALL BEARING 629C2
25 ARMATURE
26 FAN GUIDE
27 HEX. HD. TAPPING SCREW D4X45
28 STATOR
29 BALL BEARING 698T1XZZ1MC2E NS7L
30 RUBBER BUSHING
31 HOUSING
32 NAMEPLATE
33 TAPPING SCREW (W/FLANGE) D4X20
34 HANDLE COVER
35 PUSHING BUTTON
36 SWITCH
37 INTERNAL WIRE (BROWN) 100L
38 CHOKE COIL (BROWN)
39 CARBON BRUSH
40 BRUSH HOLDER
41 HITACHI LABEL
42 NOIS SUPPRESSOR
43 EARTH TERMINAL
44 INTERNAL WIRE (BLUE) 55L
45 CHOKE COIL (BLUE)
46 TAPPING SCREW (W/FLANGE) D4X16
47 CORD CLIP
48 CORD ARMOR
49 CORD
501 SIDE HANDLE
502 DEPTH GAUGE
