04
Smart PoE Switch
■
Rear Panel

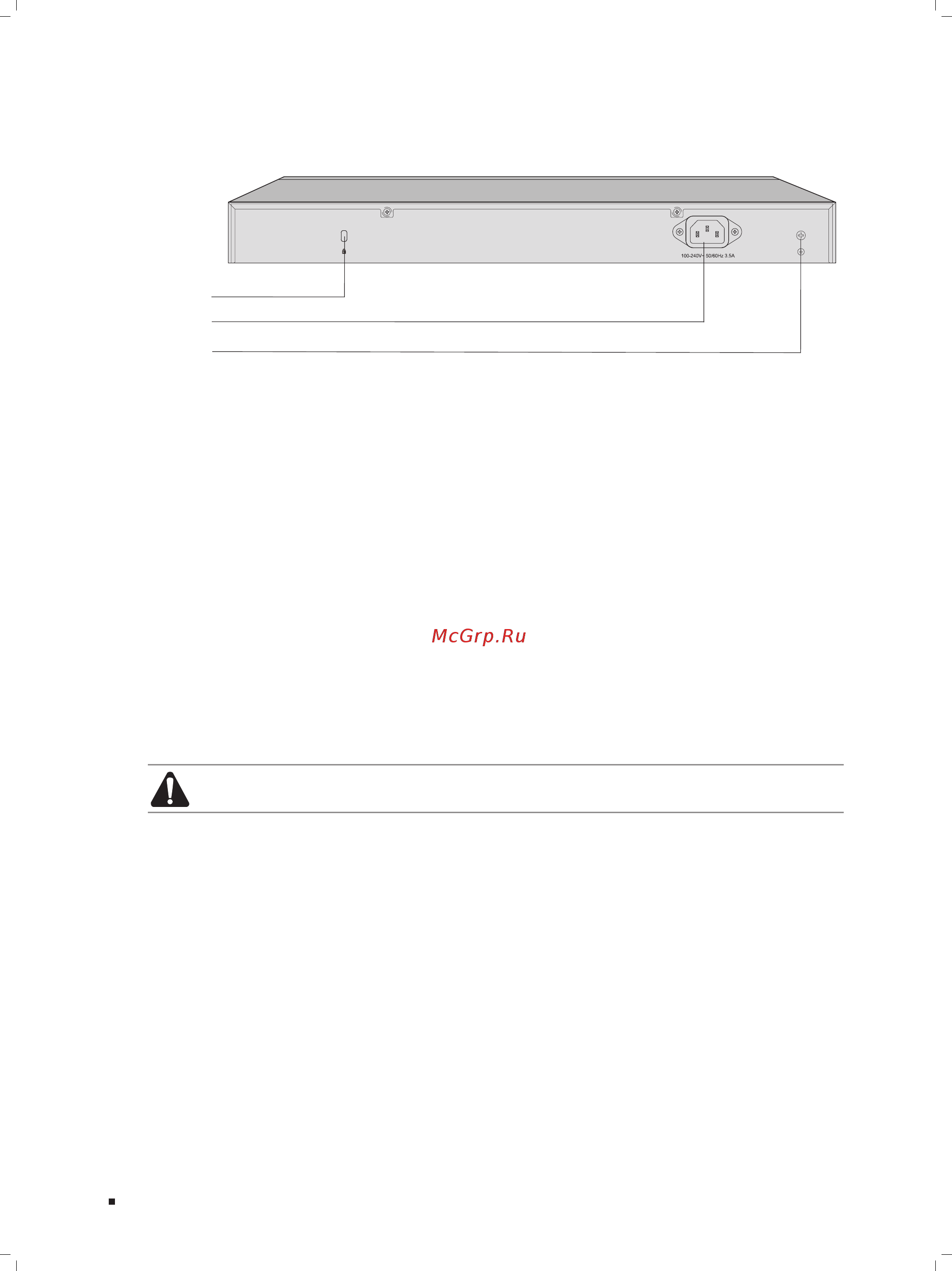

The rear panel of T1500-28PCT is shown as Figure 1-2.
Grounding Terminal
Power Socket
Kensington Security Slot
Figure 1-2 Rear Panel of T1500-28PCT
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from
being stolen.
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground
the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
Introduction
