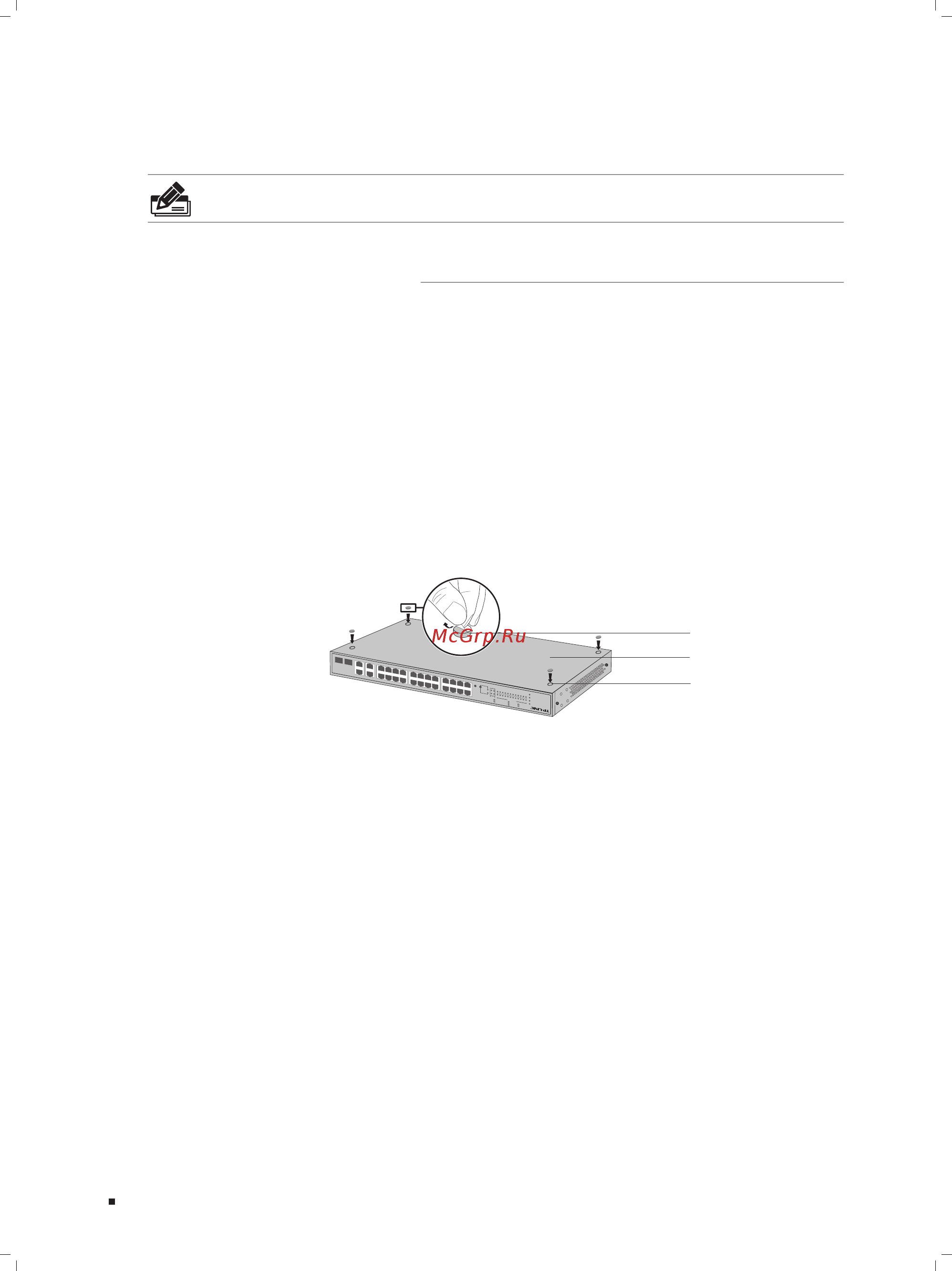

![Tp-Link T1500-28PCT V1 [14/28] Note these tools are not provided with our product if needed please self purchase them](/views2/1210226/page14/bge.png)
08
Smart PoE Switch
■
ESD-preventive wrist wrap
■
Cables
Note: These tools are not provided with our product. If needed, please self purchase
them.
2.4 Product Installation
■
Desktop Installation
To install the device on the desktop, please follow the steps:
1. Set the device on a flat surface strong enough to support the entire weight of the
device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on
the bottom at each corner of the device.
51$5
4NBSU1P&4XJUDI
4:4
1P&
3FTFU
.
..PS1P&
183
1P&."9
'"/
.
.CQT
.CQT
"DUJWJUZ
1P&
%FMJWFSJOH1PXFS
0WFS#VEHFU
'BVMU
%FUFDUJPO'BVMU
.
.CQT
.CQT
"DUJWJUZ
' '
Feet
Bottom of the Device
Notch
Figure 2-1 Desktop Installation
■
Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied
screws, as illustrated in the following figure.
Installation
