01
Smart PoE Switch
Chapter 1 Introduction
1.1 Product Overview
T1500-28PCT is compliant with the IEEE802.3 Ethernet protocols.
The switch is equipped with powerful management interface, via which system, port,
network, VLAN and priority can be configured. They provide a variety of service
features and multiple powerful functions with high security. The EIA-standardized
framework and smart configuration capacity can provide flexible solutions for a
variable scale of networks. QoS and IGMP snooping/filtering optimize voice and video
application. SNMP, RMON, WEB Log-in bring abundant management policies.
T1500-28PCT integrates multiple functions with excellent performance, and are friendly
to manage, which can fully meet the need of the users demanding higher networking
performance.
T1500-28PCT Smart PoE Switch is also a Power Sourcing Equipment (PSE*). All the
fast Ethernet RJ45 ports on the switch support Power over Ethernet (PoE*) function,
which can automatically detect and supply power with those powered devices (PDs*)
complying with IEEE 802.3af and IEEE 802.3at.
*PSE: a device (switch or hub for instance) that provides power through an Ethernet
cable.
*PoE: This technology describes a system to transmit electrical power, along with data,
to remote devices over standard twisted-pair cable in an Ethernet.
*PD: a device powered by a PSE and thus consumes energy. Examples include
powering network cameras, wireless LAN access points, IP telephones, network hubs,
embedded computers etc.
1.2 Appearance
■
Front Panel

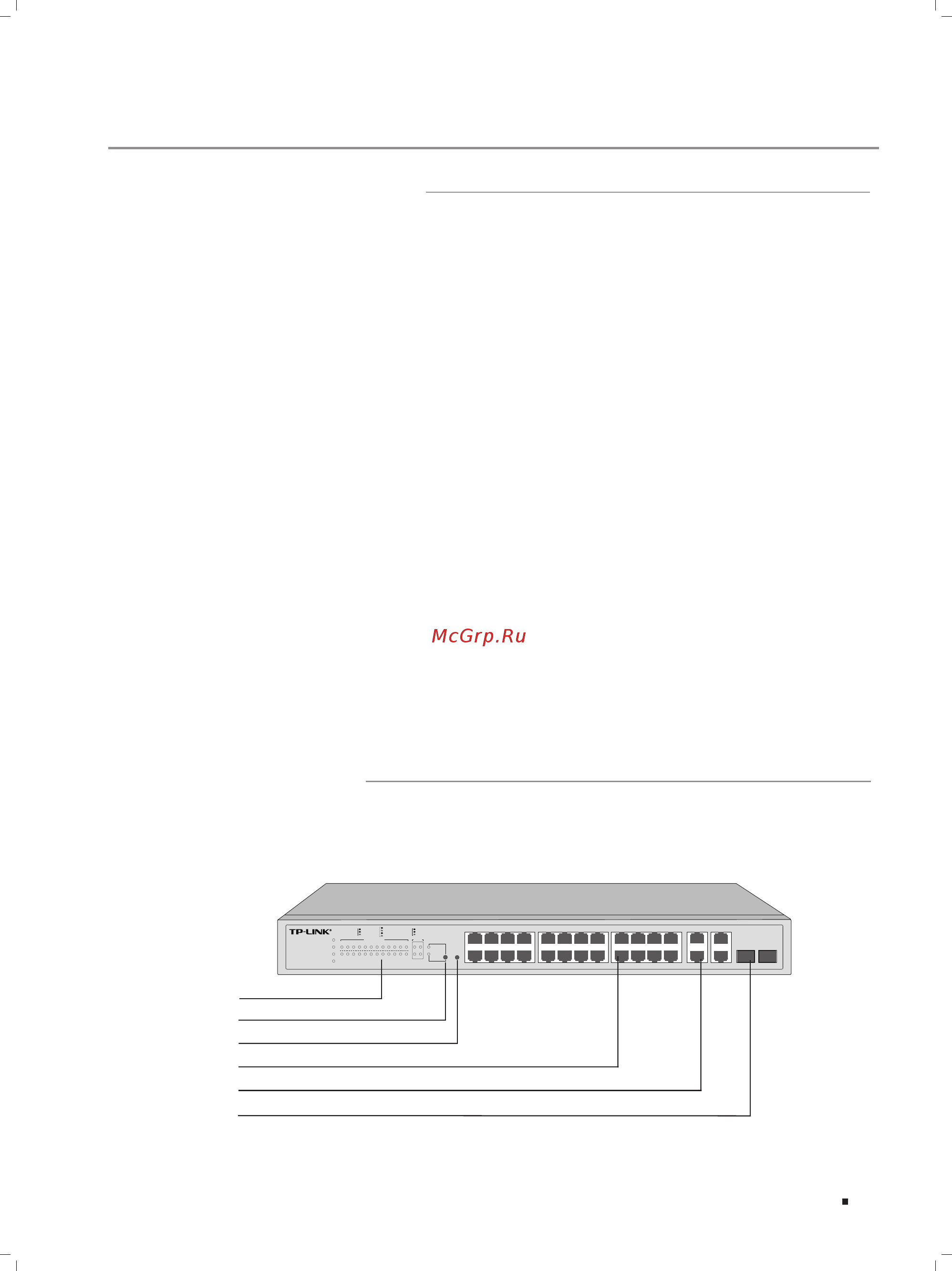

The front panel of T1500-28PCT is shown as Figure 1-1.
L5428E
T1500-28PCT
Smart PoE Switch
SYS
1 3 5 7 9 11 13 15 17 19 21 23 25 27
PoE
Reset
10/100M
2 4 6 8 10 12 14 16 18 20 22 24 26
1000M10/100M or PoE
28
PWR
PoE MAX
FAN
10/100M
100Mbps
10Mbps
Activity
PoE
Delivering Power
Over Budget
Fault
Detection Fault
1000M
1000Mbps
10/100Mbps
Activity
1
2 4 6 8 10 12 14 16 18 20 22 24 26 28
3 5 7 9 11 13 15 17 19 21 23 25 27
27F 28F
Reset
LEDs
10/100Mbps RJ45 Port
SFP Port
LED Mode Switch Button
1000Mbps RJ45 Port
Figure 1-1 Front Panel of T1500-28PCT
