Tp-Link TL-SG1016DE V2 [12/49] Refresh

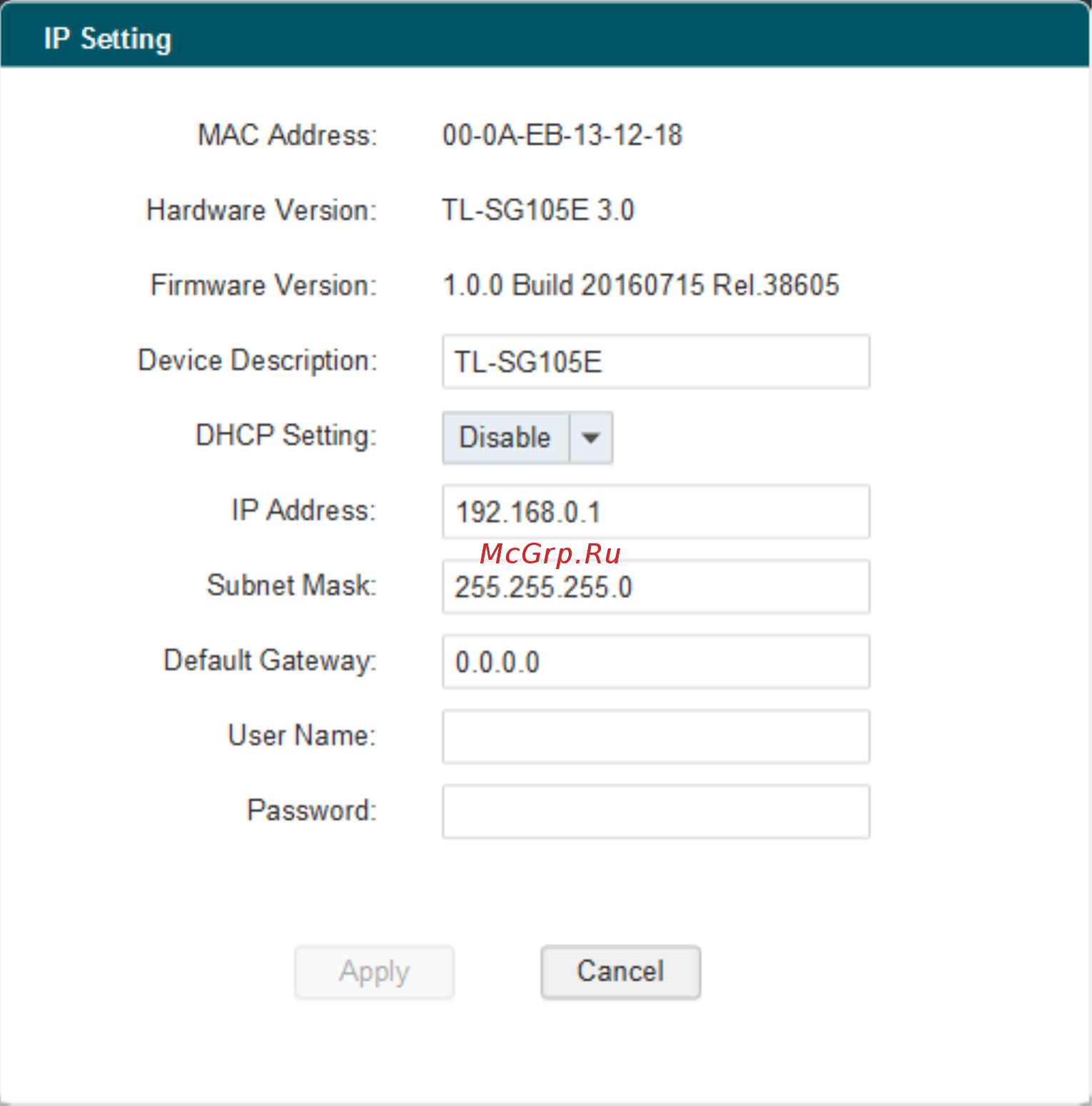

The setting figure will be shown as below:

Figure 2-9 Switch Setting

You can configure the switch’s Device Description, DHCP Setting, IP Address, Subnet Mask

and Default Gateway on this page. The login User Name and Password are required to

complete the configuration. By default, they are both admin.

When the switch IP Address is not in the same subnet with host IP Address, it can be

discovered by the utility, but you cannot login the utility management page. Therefore, it needs

to set the switch IP Address in the same subnet with host IP Address, which allows you to login

the utility management page and configure the switch.

Clicking Apply can only make the new configurations effective before the switch is rebooted. If

you want to keep the configurations effective even the switch is rebooted, please select the

checkbox behind Save Config.

2.5 Refresh

Click Refresh in Figure 2-7 to restart the switch discovering process.
