In this User Guide, the tagged packet refers to the packet with VLAN tag whereas the untagged
packet refers to the packet without VLAN tag.
The VLAN module is mainly for VLAN configuration, including four submenus: MTU VLAN, Port
Based VLAN, 802.1Q VLAN and 802.1Q PVID Setting.
6.1 MTU VLAN
On this page you can choose to enable MTU VLAN mode and configure VLANs.
Choose the menu VLAN→MTU VLAN to load the following page.

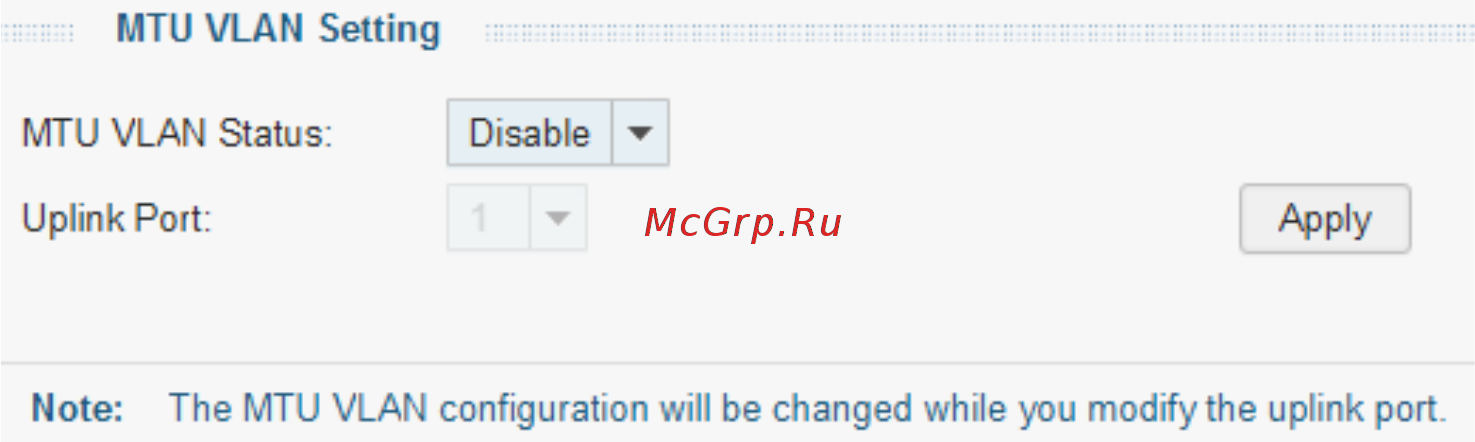

Figure 6-3 MTU VLAN Configuration
The following entries are displayed on this screen:
MTU VLAN Setting
MTU VLAN Status: Enable/Disable the MTU VLAN function globally.
Uplink Port:
Select the uplink port from the drop-down list.
6.2 Port Based VLAN
On this page you can configure Port Based VLAN feature and view the related settings.
