Choose the menu VLAN→Port Based VLAN to load the following page.

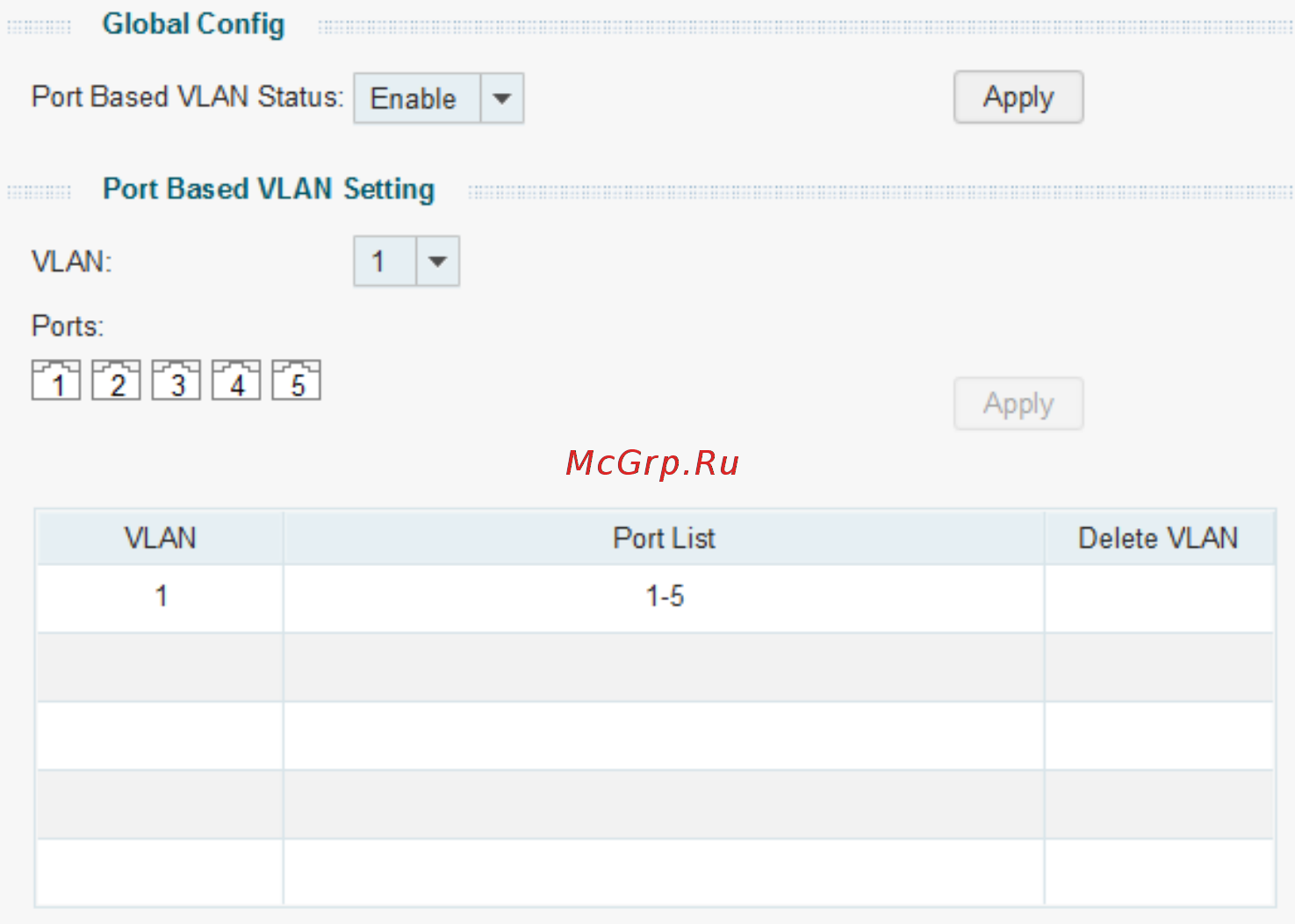

Figure 6-4 Port Based VLAN Configuration

To ensure the normal communication of the factory switch, the default VLAN of all ports is set

to VLAN1. VLAN 1 cannot be deleted.

The following entries are displayed on this screen:



Global Config

Port Based VLAN

Configuration:

Enable or disable Port Based VLAN mode.



Port Based VLAN Setting

VLAN ID:

Select the ID number of VLAN from the drop-down list.

Ports:

Click the port icon to select the port of the VLAN. It is

multi-optional. If thi

s field is selected, it indicates the port

belongs to the current VLAN.

VLAN:

Displays the ID number of VLAN.

Port List:

Displays the port members in the VLAN.

Delete VLAN:

Click Delete to delete the corresponding VLAN.
