Cable Fault

Distance(m):

Displays the error length (in meters) of the cable.

Test: Click Test to diagnose the cable connected to this port.

Test ALL: Click Test All to carry on the cable test on all ports.

Note:

The test result is just for your reference.

5.4 Loop Prevention

With loop prevention feature enabled, the switch can detect loops using loop detection

packets. When a loop is detected, the switch will block the corresponding port automatically.

Choose the menu Monitoring→Loop Prevention to load the following page.

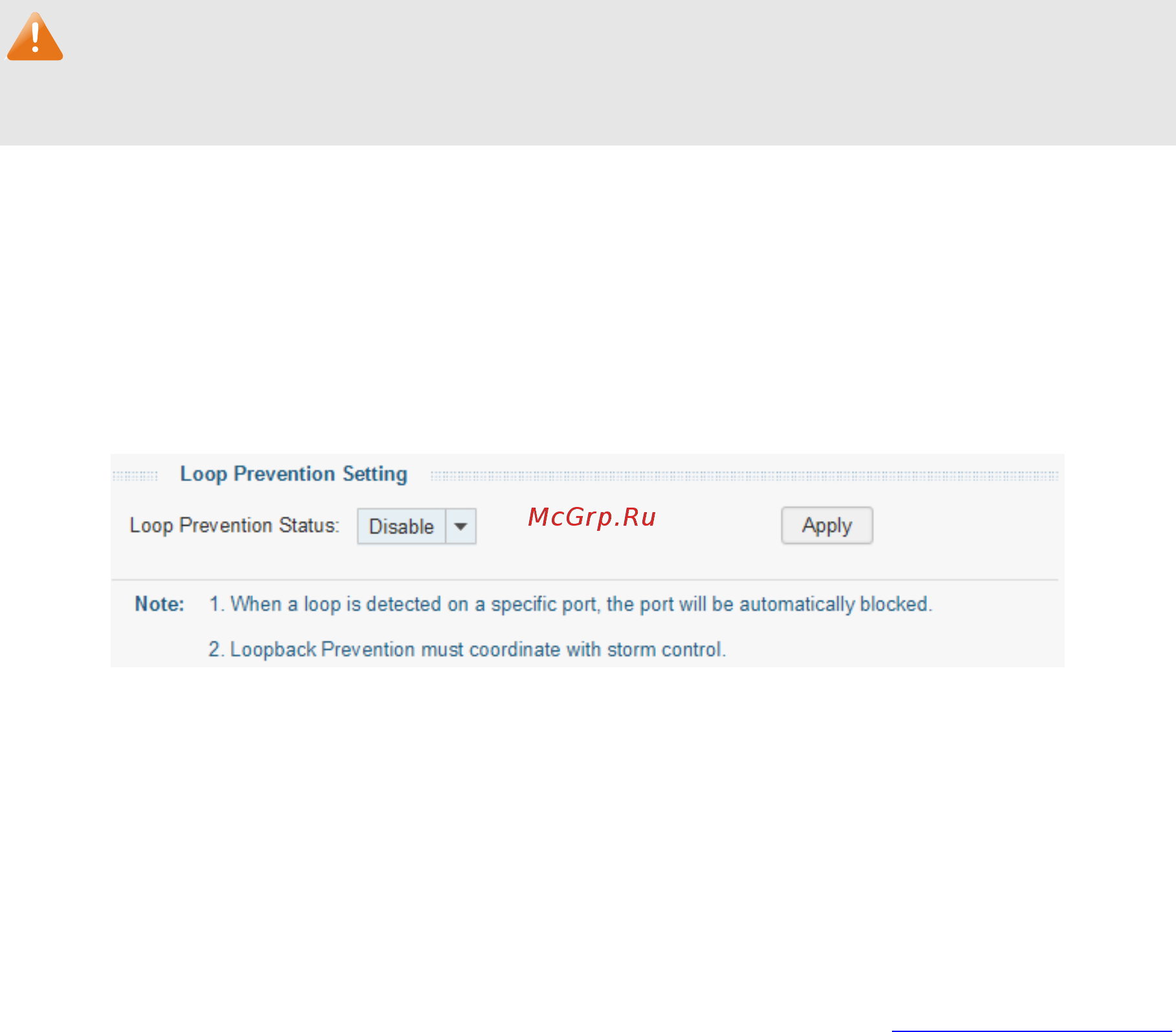

Figure 5-5 Loop Prevention Setting

The following entries are displayed on this screen:



Loop Prevention Setting

Loop Prevention

Status:

Allows you to enable or di

sable loop prevention function

globally.
