Chapter 4 Switching

Switching module is used to configure the basic functions of the switch, including three

submenus: Port Setting, IGMP Snooping and LAG.

4.1 Port Setting

On this page, you can configure the basic parameters for the ports. When the port is disabled,

the packets on the port will be discarded. Disabling the port which is vacant for a long time can

reduce the power consumption effectively. And you can enable the port when it is in need.

The parameters will affect the working mode of the port, please set the parameters appropriate

to your needs.

Choose the menu Switching→Port Setting to load the following page.

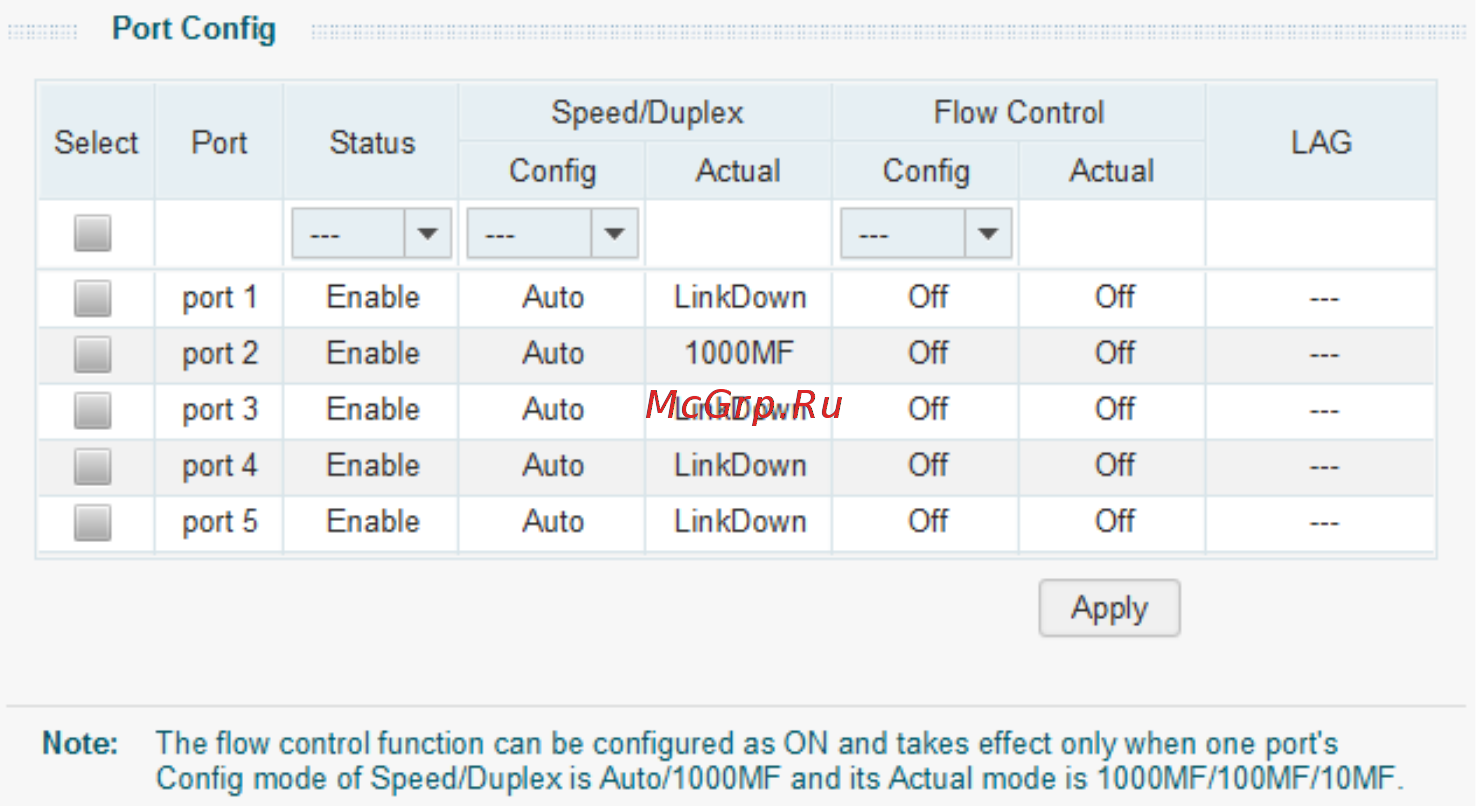

Figure 4-1 Port Config

The following entries are displayed on this screen:

 Port Config

Select:

Select the desired port for configuration. It is multi-optional.

Por

Displays the port number.

Status:

Allows you to Enable/Disable the port. When Enable is

selected, the port can forward the packets normally.
