Choose the menu Switching→IGMP Snooping to load the following page.

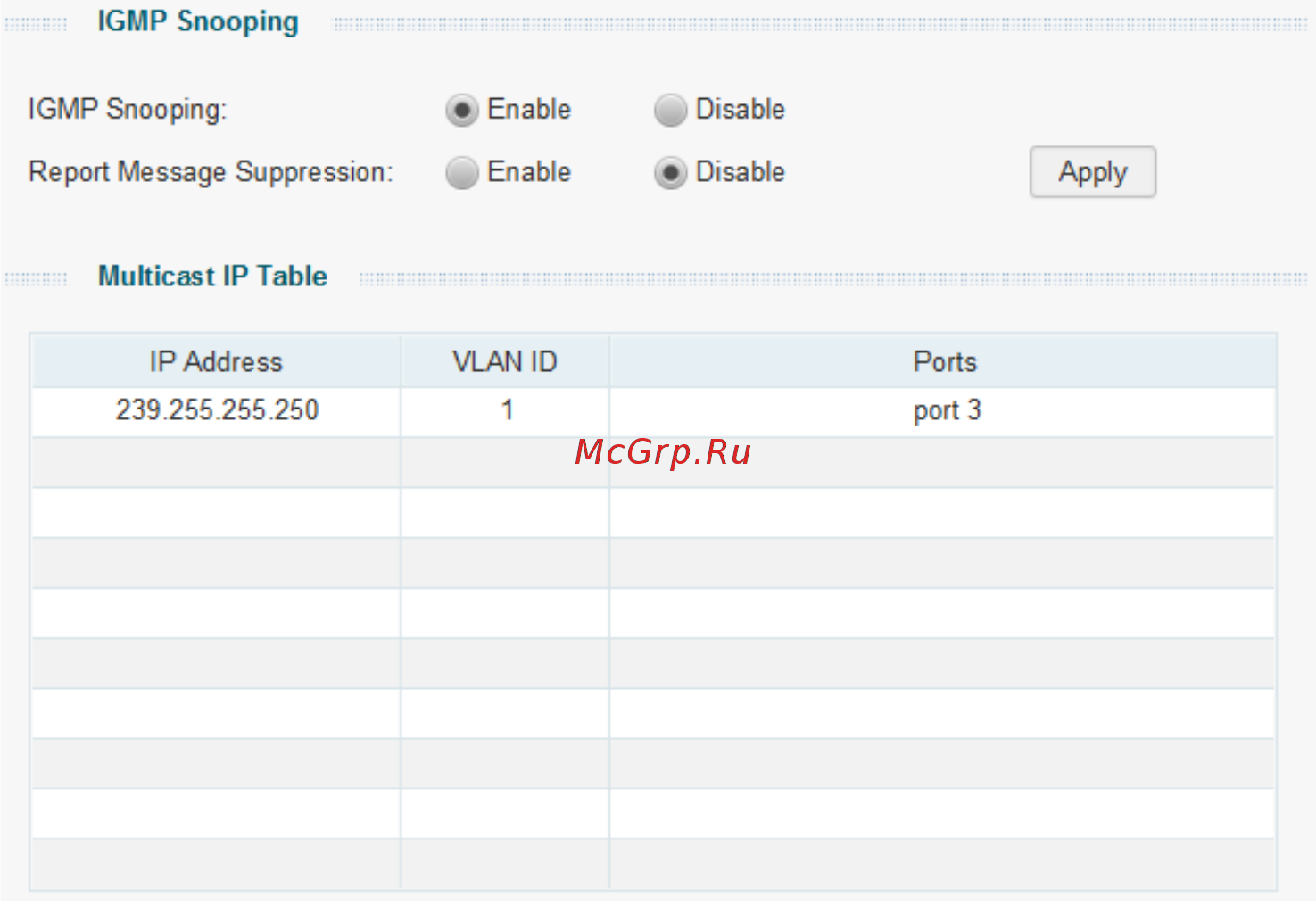

Figure 4-2 IGMP Snooping

The following entries are displayed on this screen:



IGMP Snooping

IGMP Snooping: Enable or disable IGMP snooping function globally on the

switch.

Report Message

Suppression:

Enable or disable Report Message Suppression function

globally.If this function is enabled,the first Report Message from

the listener will forward to the router ports while the subsequent

Report Message will be suppres

sed to reduce the IGMP

packets.



Multicast IP Table

IP Address: Displays the multicast IP address.

VLAN ID:

Displays the VLAN ID of

the multicast group. If the packet does

not carry VLAN ID, then here displays the PVID of the port.

All

port members of a m

ulticast group should be divided to the

same VLAN, and have the same PVID.

Ports: Displays the forwarding port list of the multicast group.
